GASOLINE ENGINES SKI MODELS
Page 21 of 48
4. Loosen clamping screws and nuts on all 4 engine mount brackets to ensure the follow-
ing:
• Large diameter of mount trunnion extended as shown.
• Mount base slotted mounting hole forward, if so designed.
• Each mount base is downward. Tighten clamping screws and nuts slightly to prevent
moving in or out. Mounts must be free to pivot when installing engine.

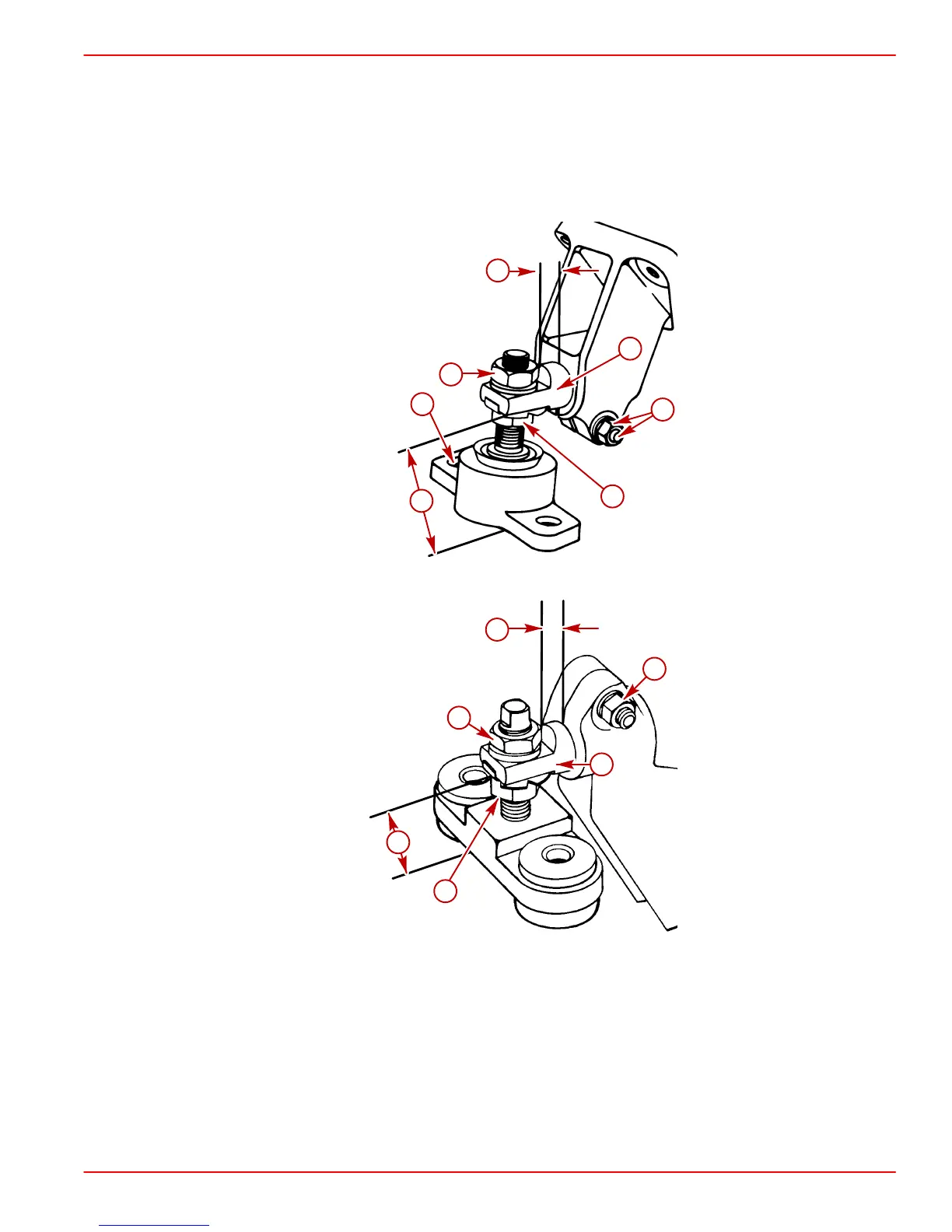

70140
e
g
c
a
d
b
f
Front Mount
70645
e
c
g
b
f
a
Rear Mount
a-Locking Nut
b-Adjusting Nut
c-Trunnion Clamp Screw(s) And Nut(s), With Lockwasher(s)
d-Slot Forward
e-3/8 in. + 1/16 in. (10 mm + 2 mm)
f-2-5/8 in. + 1/16 in. (67 mm + 2 mm)
g-Mount Trunnion
