GASOLINE ENGINES SKI MODELS
Page 25 of 48
Throttle/Shift Cable
Lubricate cable ends and barrels and then attach to engine and transmission.
IMPORTANT: When installing throttle cable, be sure that cables are routed in such a
way as to avoid sharp bends and/or contact with moving parts. DO NOT fasten any
items to throttle cable.
ATTACHING/ADJUSTING THROTTLE CABLE - CARBURETED MODELS
1. Lubricate cable ends and barrels.

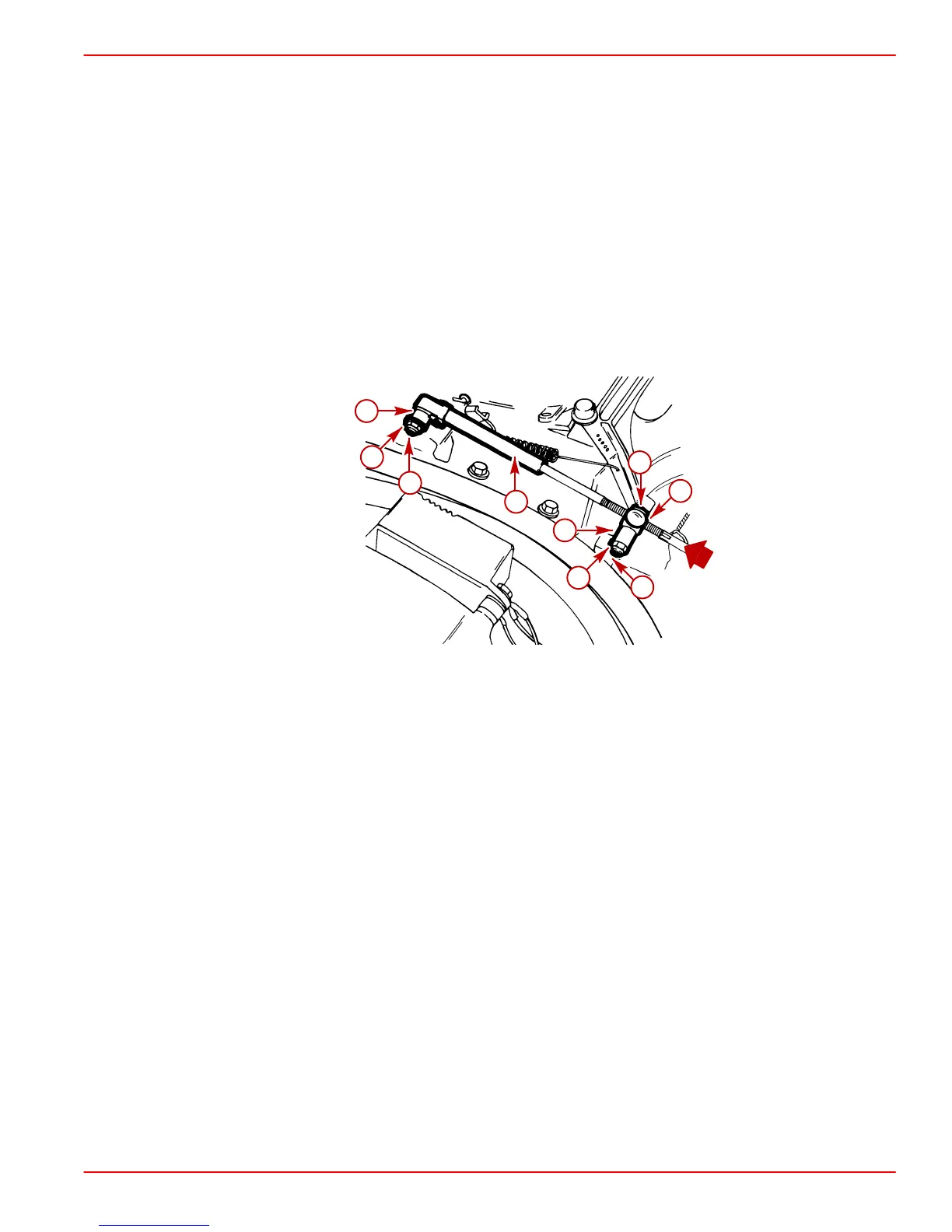

2. Place remote control throttle lever in idle position and attach cable end guide to carbure-
tor throttle lever as shown.
3. Grasp cable behind barrel and push lightly as shown. Adjust cable barrel to align hole
with anchor stud, then slide barrel onto stud.
22552
g
e
f
h
d
a
b
c
d
a-Cable End Guide
b-Throttle Lever Stud
c-Elastic Stop Nut and Washer
d-Spacer
e-Cable Barrel
f-Anchor Stud
g-Washer
h-Elastic Stop Nut
