ATTACHING/ADJUSTING THROTTLE CABLE - EFI MODELS
1. Place remote control handle in neutral idle position.
2. Remove flame arrestor.
3. Attach cable to the lowest hole on the throttle body unit following cable manufacturer’s
instructions.
4. Install cable end guide on throttle lever, then push cable barrel end lightly toward throttle
lever end. (This places a slight preload on shift cable to avoid slack in cable when moving
remote control lever.) Adjust barrel on throttle cable to align with hole in anchor plate.

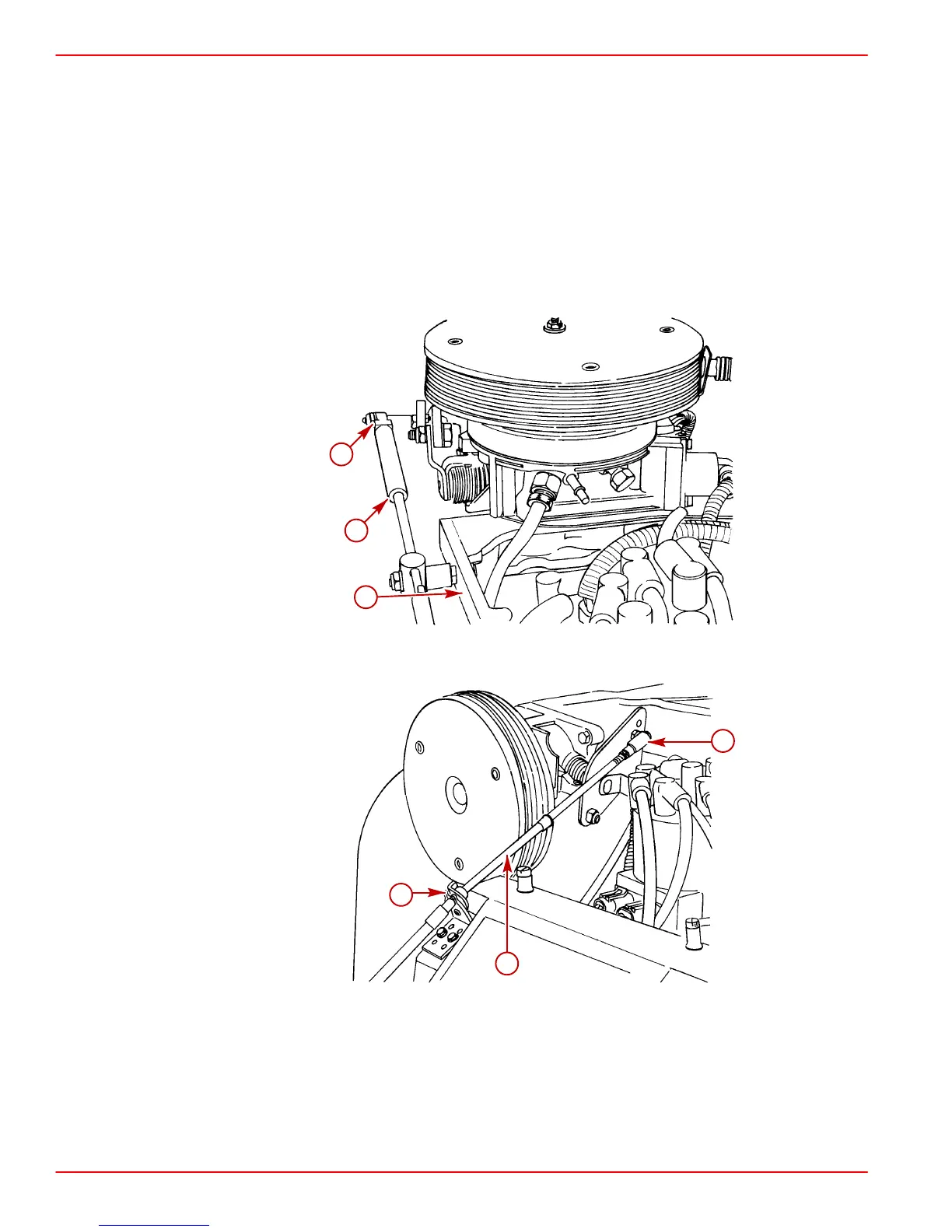

Position cable as shown.
75806
a
b
c
Throttle Body EFI
74838
a
c
b
Black Scorpion
a-Throttle Lever
b-Anchor Plate
c-Throttle Cable
5. Secure throttle cable with hardware as shown and tighten securely.
