Electrical Connections

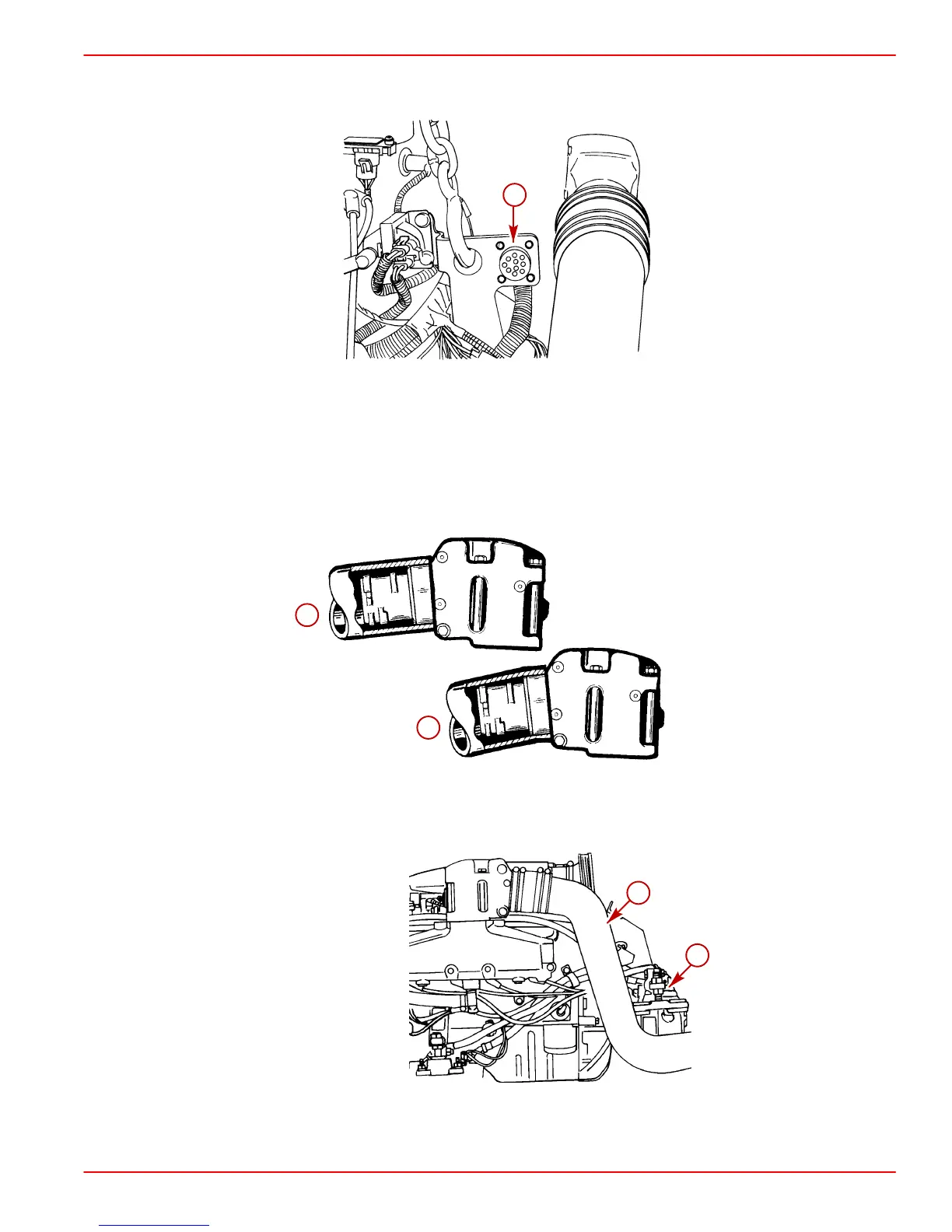

1. Connect instrumentation wiring harness to engine and secure with clamp.
75532
a
a-Instrumentation Wiring Harness Connection
Exhaust System Hoses/Tubes Connection
1. Exhaust hoses/tubes must be connected to exhaust elbows so that they do not restrict
the flow of discharge water from the elbow. If hoses/tubes are connected incorrectly, a
hot spot in the hose/tube can occur, and can eventually burn through.
2. Exhaust hoses/tubes should be secured at each connection with at least 2 hose clamps.
22032
a
b
a-Correct
b-Incorrect
IMPORTANT: S-pipes must be routed under the transmission mounts.
74832
b
a
a-S-Pipe
b-Transmission Mount
