GASOLINE ENGINES SKI MODELS
Page 47 of 48

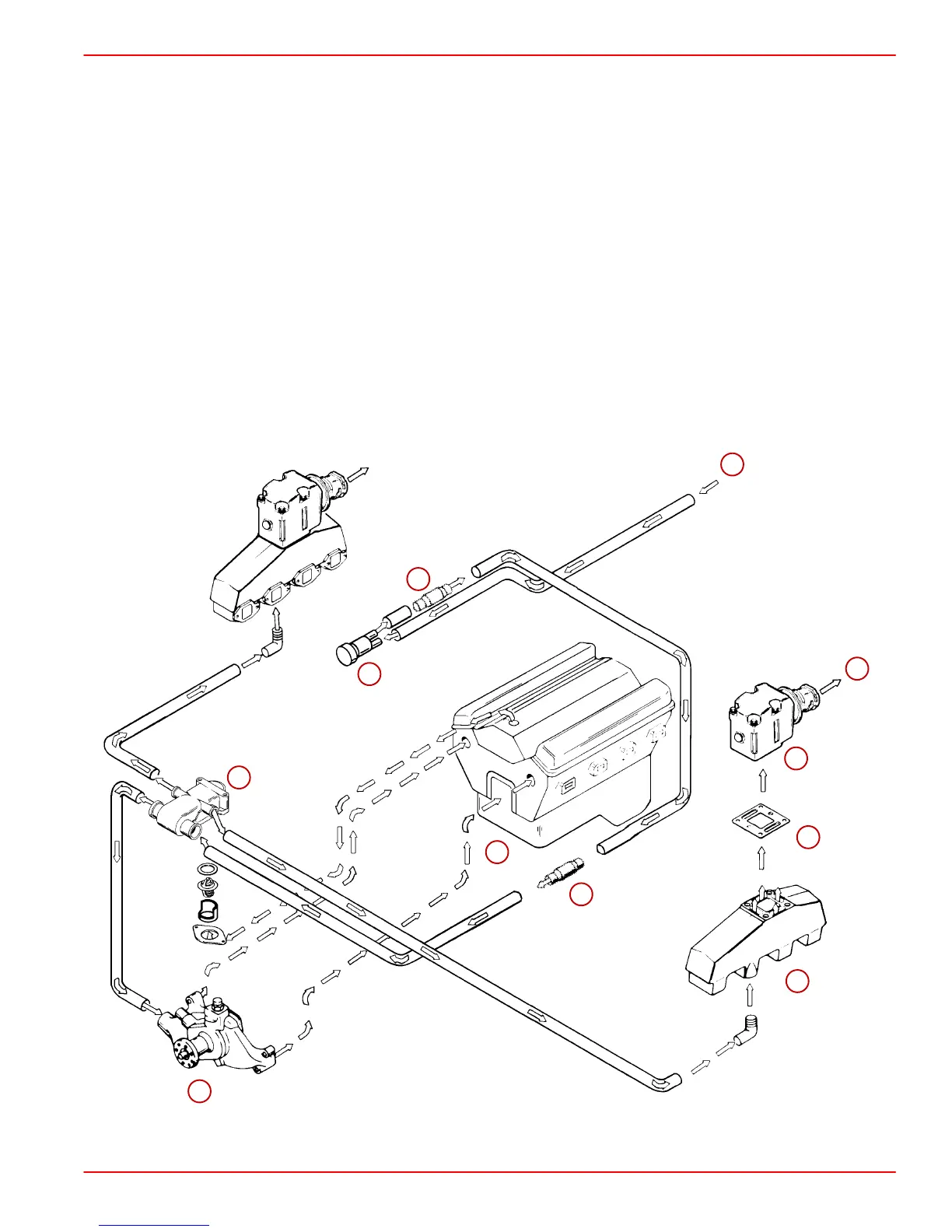

MIE Water Flow Diagram
Gasoline Engines with Seawater (Raw-Water) Cooling System
ALL V8 350 AND 377 CID ENGINES
NOTE: Certain components in the following diagram may look different than on your particu-
lar power package, but the water flow paths remain similar on all engines.
1-Seawater Intake
2-Seawater Pump
3-Transmission Cooler
4-Fuel Cooler (EFI Models)
5-Thermostat Housing and Cover Assembly
6-Engine Water Circulating Pump
7-Engine Block and Cylinder Head Assembly
8-Exhaust Manifold, Typical
9-Restrictor Gasket
10 - Exhaust Elbow Assembly, Typical
11 - Water Flow Overboard
