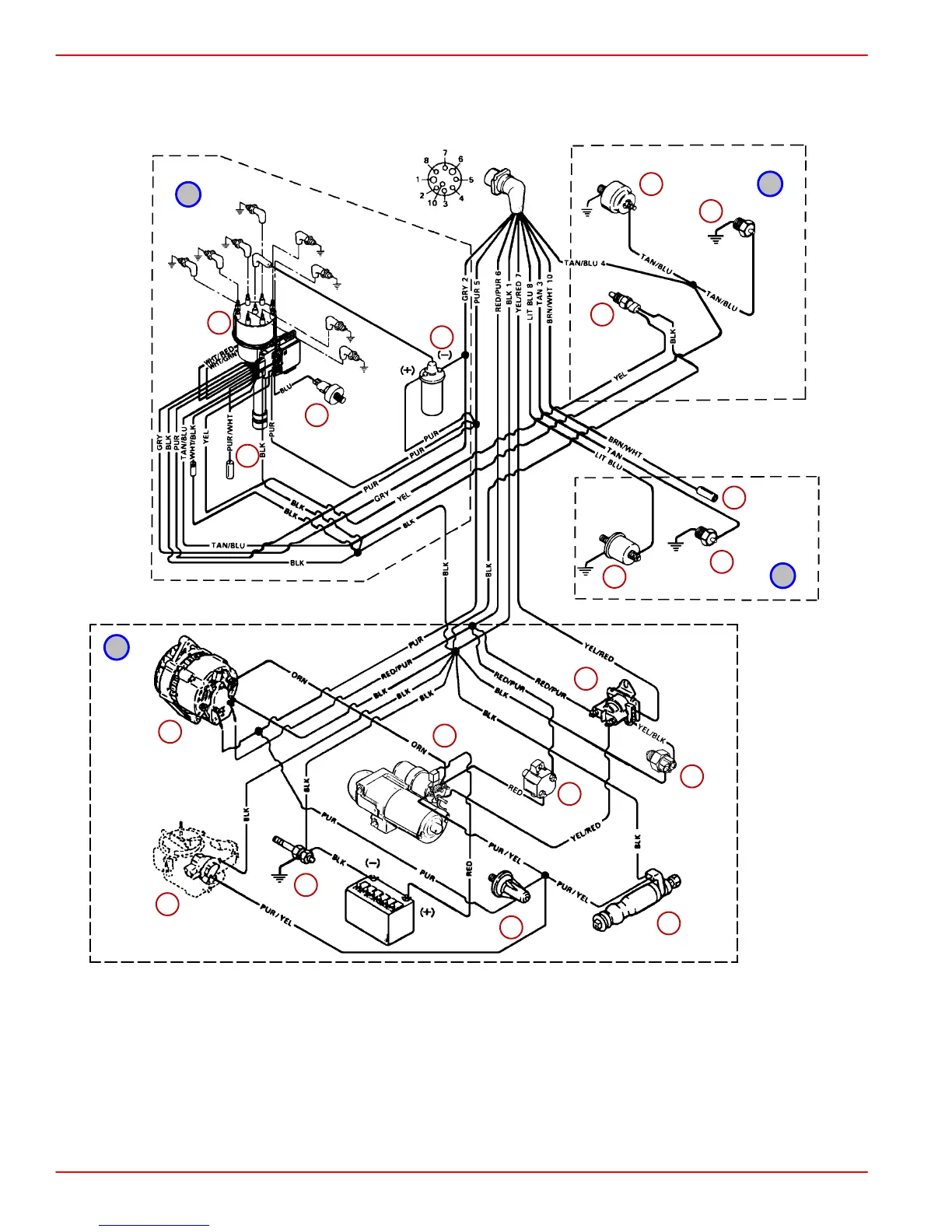

MIE Gasoline Engine Wiring Diagrams
MIE 5.7L Inboard Engines
BLK = Black
BLU = Blue
BRN = Brown
GRY = Gray
GRN = Green
ORN = Orange
PNK = Pink
PUR = Purple
RED = Red
TAN = Tan
WHT = White
YEL = Yellow
LIT = Light
DRK = Dark
75754
1
2
3
4
1
2
3
1
2
3
1
2
3
4
5
6
7
8
9
A
B
C
D
NOTE: BROWN-WHITE wire may be used for an Accessory. LOAD MUST NOT EXCEED
5 AMPS.
