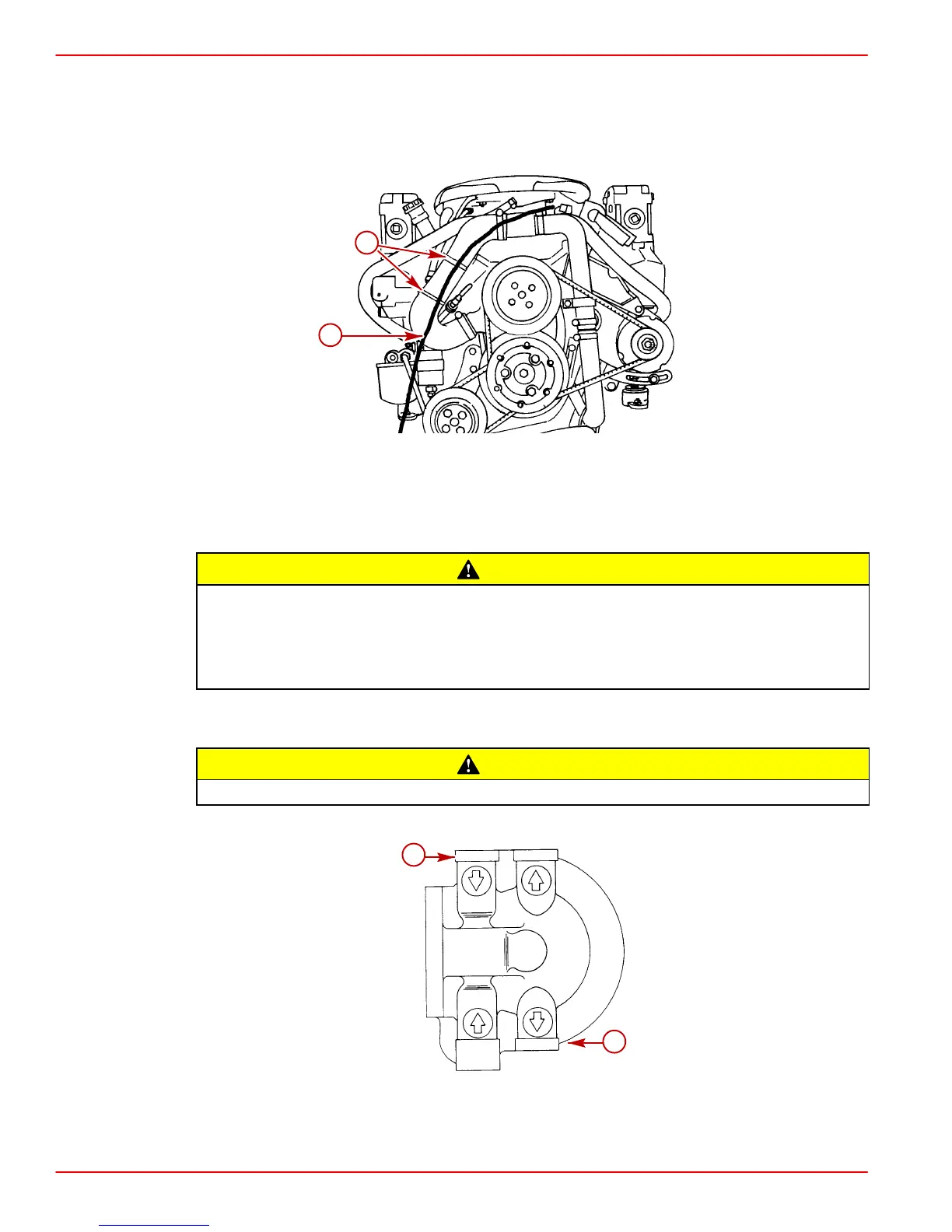

ROUTING OF SHIFT CABLES - BLACK SCORPION
1. Shift Cable - Route shift cable from the starboard to the port side of engine and then
between intake manifold and elbow. Position cable so it will not interfere with flame
arrestor.
74833
a
b
a-Sta-Straps
b-Shift Cable
Fuel Supply Connection
CAUTION
Remove plastic plug from fuel inlet hole in casting. Apply #592 Loctite Pipe Sealant
with Teflon to threads of fuel inlet line connector. DO NOT USE TEFLON TAPE. To
prevent cracking the casting and/or fuel leaks, turn inlet connector in by hand until
finger tight, then tighten connector to 1-3/4 to 2-1/4 turns with wrench. DO NOT
OVERTIGHTEN. Inspect for fuel leaks.
IMPORTANT: A flexible fuel line must be used to connect fuel line to engine to absorb
deflection when engine is running.
CAUTION
Ensure that the inlet hose to fuel pump does not interfere with drive belts.
1. Install barbed fuel line fittings (obtain locally) in water separating fuel filter adapter.
22551
b
a
a-Inlet
b-Outlet
