ATTACHING/ADJUSTING SHIFT CABLE - ALL MODELS
IMPORTANT: Velvet Drive Transmission Warranty is jeopardized if the shift lever pop-
pet ball or spring is permanently removed, if the shift lever is repositioned or changed
in any manner or if remote control and cable do not position shift lever correctly.
22457
d
e
c
b
F
N
R
a
F
R

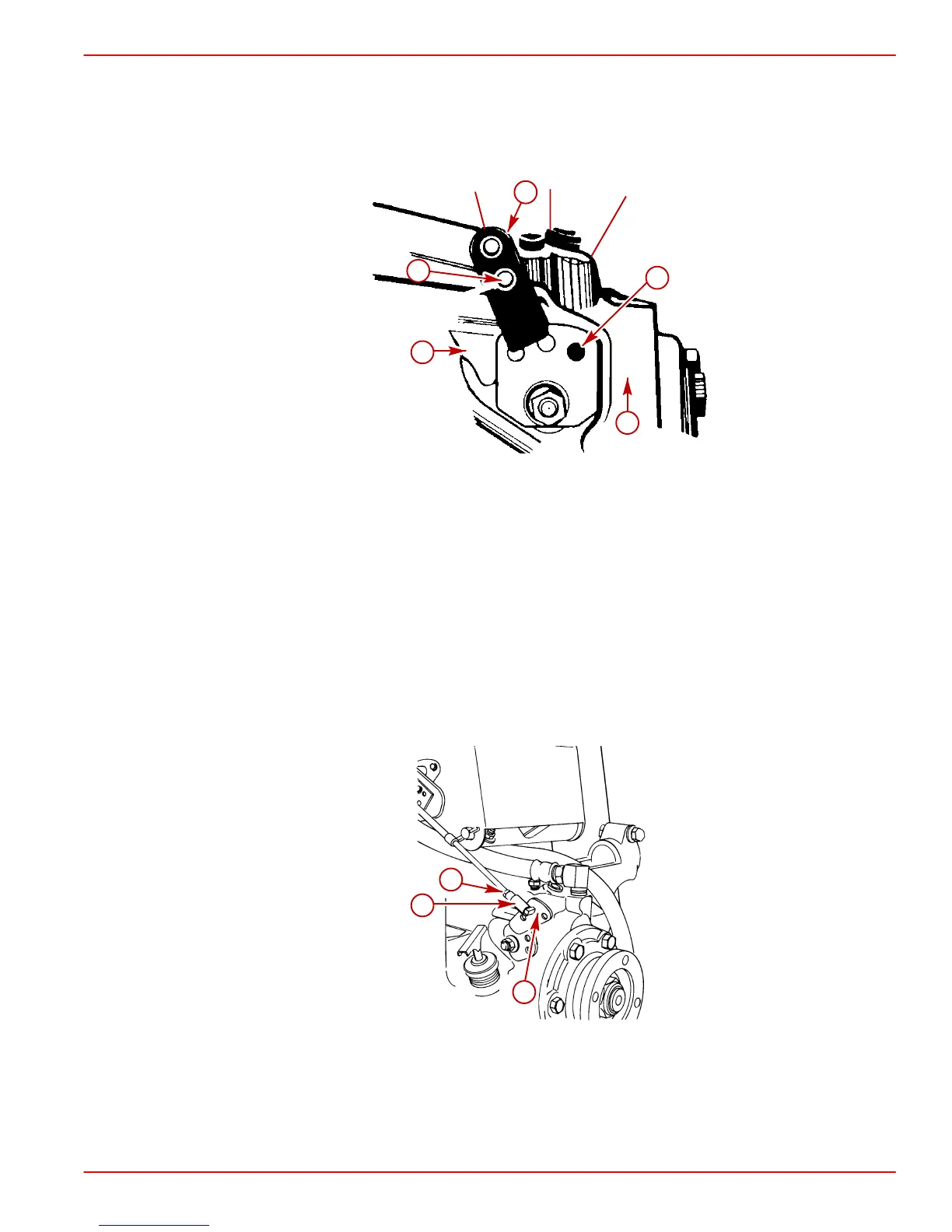

a-Transmission Shift Lever
b-Shift Lever MUST BE Over This Letter When Propelling Boat FORWARD
c-Shift Lever MUST BE Over This Letter When Propelling Boat IN REVERSE
d-Poppet Ball MUST BE Centered in Detent Hole for Each F-N-R Position (For-
ward Gear Shown)
e-Install Shift Lever Stud in This Hole, If Necessary, To Center Poppet Ball in For-
ward and Reverse Detent Holes
IMPORTANT: When installing shift cables, be sure that cables are routed to avoid
sharp bends and/or contact with moving parts. All bends must make greater than an
8 inch (203 mm) radius. DO NOT fasten any items to shift cables.
NOTE: Refer to shift cable manufacturer’s instructions for adjusting the cable. Shift lever
must be positioned as stated in the preceding steps.
74845
a
b
c
a-Throttle Lever Stud
b-Cable End
c-Locknut
