GASOLINE ENGINES SKI MODELS
Page 46 of 48

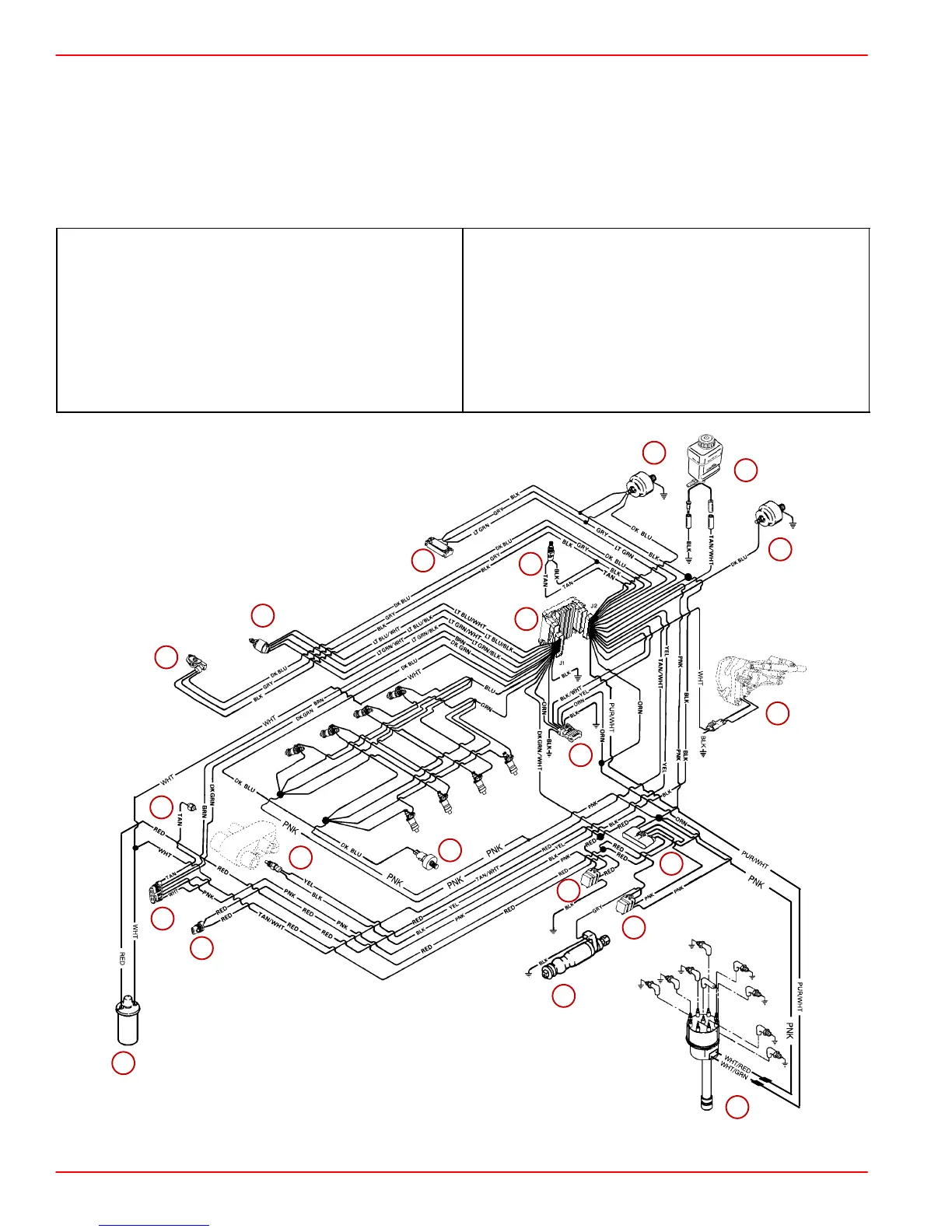

MIE 350 Magnum MPI, Black Scorpion and MX 6.2L MPI Engines -
Fuel and Ignition System Harness
NOTE: All BLACK wires with a ground symbol are interconnected within the EFI system har-
ness.
NOTE: Component position and orientation shown is arranged for visual clarity and ease
of circuit identification.
1 - Fuel Pump
2 - Distributor
3 - Coil
4 - Knock Sensor (KS) Module
5 - Data Link Connector (DLC)
6 - Manifold Absolute Pressure (MAP) Sensor
7 - Idle Air Control (IAC)
8 - Throttle Position (TP) Sensor
9 - Engine Coolant Temperature (ECT) Sensor
10- Electronic Control Module (ECM)
11- Fuel Pump Relay
12- Ignition/System Relay
13- Fuse (15 Amp) Fuel Pump, Fuse (15 Amp) ECM/DLC/Bat-
tery,Fuse (10 Amp) ECM/Injector/Ignition/Knock Module
14- Harness Connector To Starting/Charging Harness
15- Positive (+) Power Wire To Engine Circuit Breaker
16- Shift Plate (Not used on Ski models)
17- Oil Pressure (Audio Warning System)
18- Gear Lube Bottle (Not used on Ski models)
19- Fuel Pressure Switch
20- Water Temperature Sender
To Next Page
