Section 3 - Screen Overview and Operation
Page 30 90-8M0087257 eng DECEMBER 2014
Target Colors
Triangle Color Rules
State Color Fill value Action Image
Target not
achieved
Yellow Outline Blinking
Target achieved Green Solid Continuous

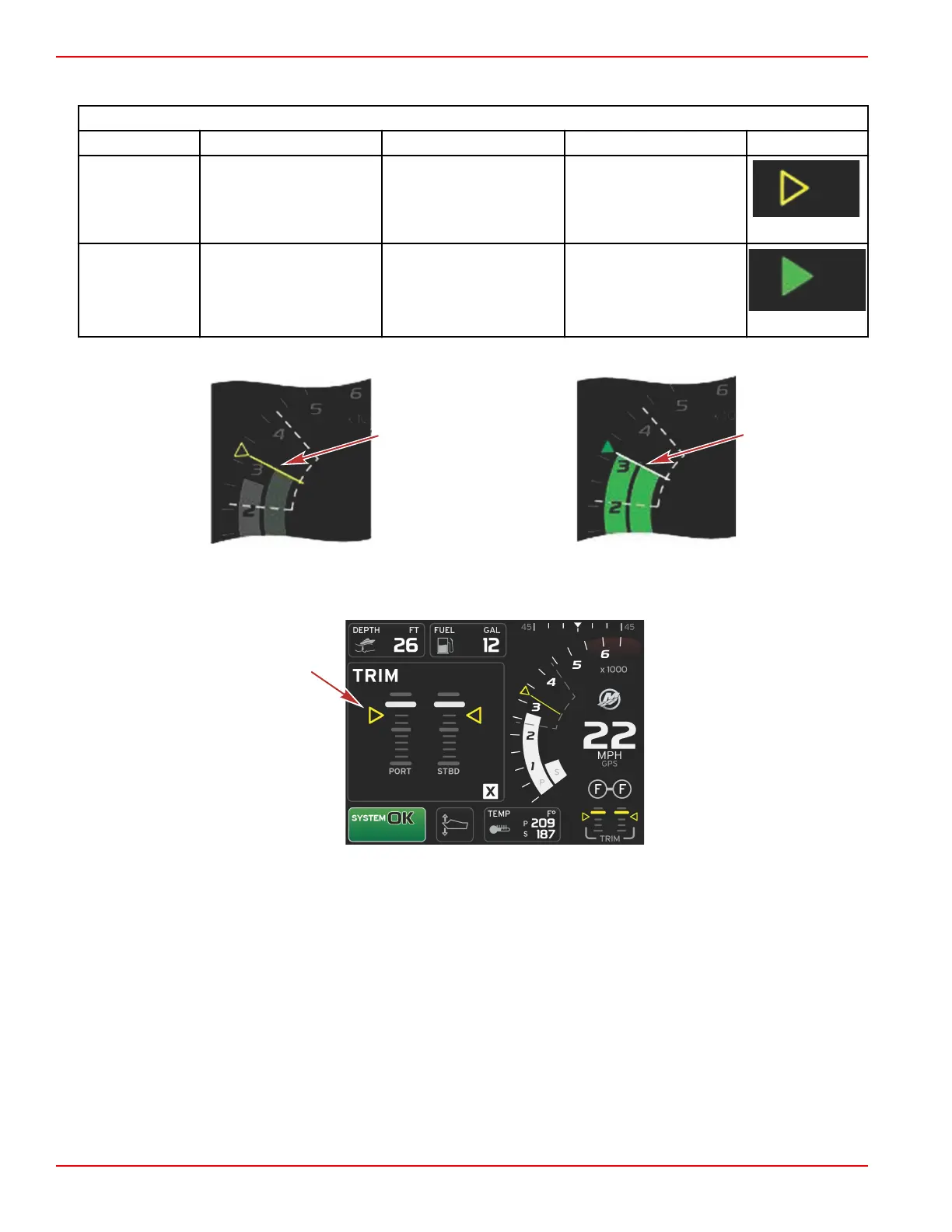

The following are examples of ECO RPM targets in different states.
Not optimized
Optimized
The user‑selected data area will display the trim targets.
