Mercusys MW300RE User Guide

MW300RE
300Mbps Wi-Fi Range Extender

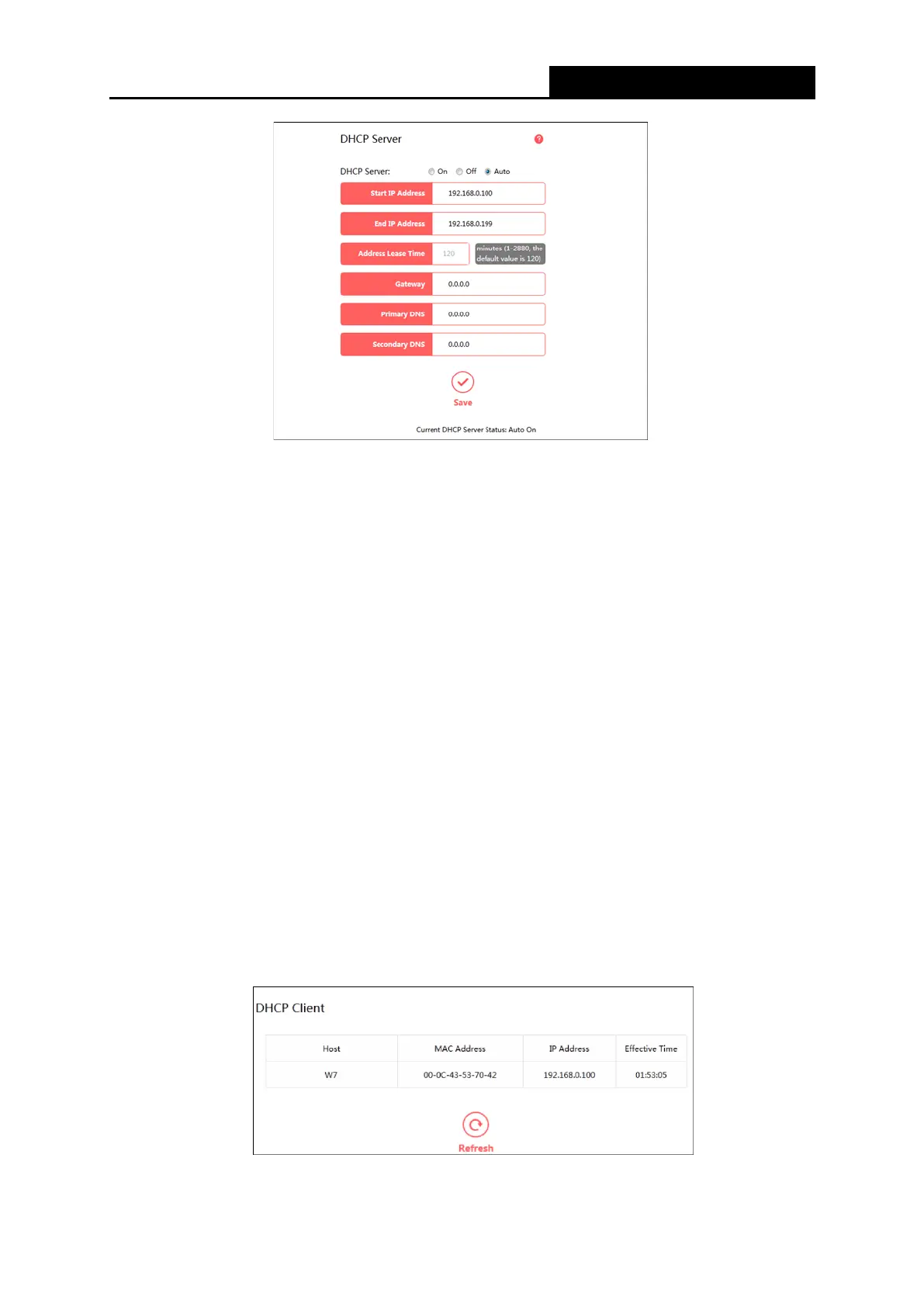

• DHCP Server - Select On, Off or Auto. When Auto is selected, the extender will detect
other DHCP server on the network to determine whether to renew IP address, Gateway
and DNS of this DHCP server or not.
• Start IP Address - Specify an IP address for the DHCP Server to start with when
assigning IP addresses. 192.168.1.100 is the default start address.
• End IP Address - Specify an IP address for the DHCP Server to end with when assigning
IP addresses. 192.168.1.199 is the default end address.
• Address Lease Time - The amount of time a network user will be allowed connection to
the extender with their current dynamic IP Address. Enter the amount of time in minutes
and the user will be leased this dynamic IP Address. After the time is up, the user will be
automatically assigned a new dynamic IP address. The range of the time is 1 ~ 2880
minutes. The default value is 120 minutes.
• Gateway - (Optional.) The default is 0.0.0.0. Enter the LAN IP address of your host router.
• Primary DNS - (Optional.) Enter the DNS IP address provided by your ISP or consult your
ISP.
• Secondary DNS - (Optional.) Enter the IP address of another DNS server if your ISP
provides two DNS servers.
• Host - The name of the DHCP client.
- 13 -

Mercusys MW300RE Specifications

General

Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Certification	CE
Product color	White
LED indicators	Yes
Sustainability certificates	RoHS
Antenna type	External
Antennas quantity	3
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
Wi-Fi data rate (max)	300 Mbit/s
Power consumption (max)	4.3 W
Power consumption (typical)	3 W
Type	Network repeater
Maximum transfer distance	- m
Package depth	121.5 mm
Package width	150.5 mm
Package weight	250 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	74.8 mm
Width	101 mm
Height	75.8 mm
