Mercusys MW300RE User Guide

MW300RE
300Mbps Wi-Fi Range Extender

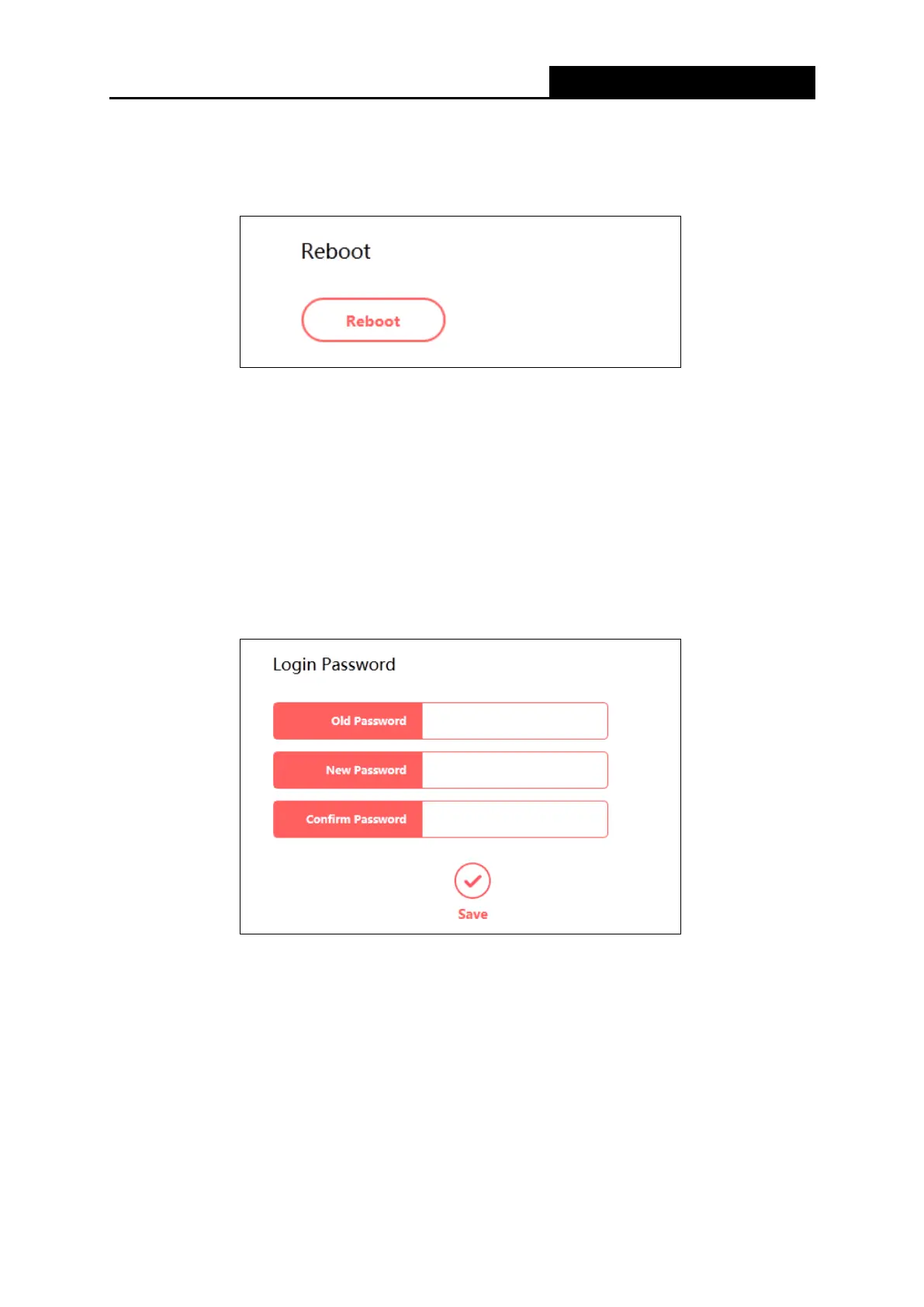

4.5.4 Reboot
Go to System Tools→Reboot, and then you can click the Reboot button to reboot the
extender on the page.
Some settings of the extender will take effect only after rebooting, which include:
• Upgrade the firmware of the extender (system will reboot automatically).
• Restore the extender's settings to factory defaults (system will reboot automatically).
• Update the configuration with the file (system will reboot automatically).
4.5.5 Login Password
Go to System Tools→Login Password, and then you can change the login username and
password of the extender.
To change the extender's login password, follow the steps below.
1. Enter the Old Password of the extender.
2. Enter the New Password.
3. Enter the new password again in the Confirm New Password field.
4. Click Save.
For subsequent logins, use the new password you have set.
4.5.6 System Log
- 16 -

Mercusys MW300RE Specifications

General

Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Certification	CE
Product color	White
LED indicators	Yes
Sustainability certificates	RoHS
Antenna type	External
Antennas quantity	3
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
Wi-Fi data rate (max)	300 Mbit/s
Power consumption (max)	4.3 W
Power consumption (typical)	3 W
Type	Network repeater
Maximum transfer distance	- m
Package depth	121.5 mm
Package width	150.5 mm
Package weight	250 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	74.8 mm
Width	101 mm
Height	75.8 mm
