Mercusys MW300RE User Guide

MW300RE
300Mbps Wi-Fi Range Extender
• MAC Address - The MAC address of the DHCP client
• IP Address - The IP address that has been allocated to the DHCP client
• Effective Time - The time of the DHCP client leased. After the dynamic IP address has
expired, a new dynamic IP address will be automatically assigned to the user.
Click Refresh to show the current attached devices.
4.5 System Tools

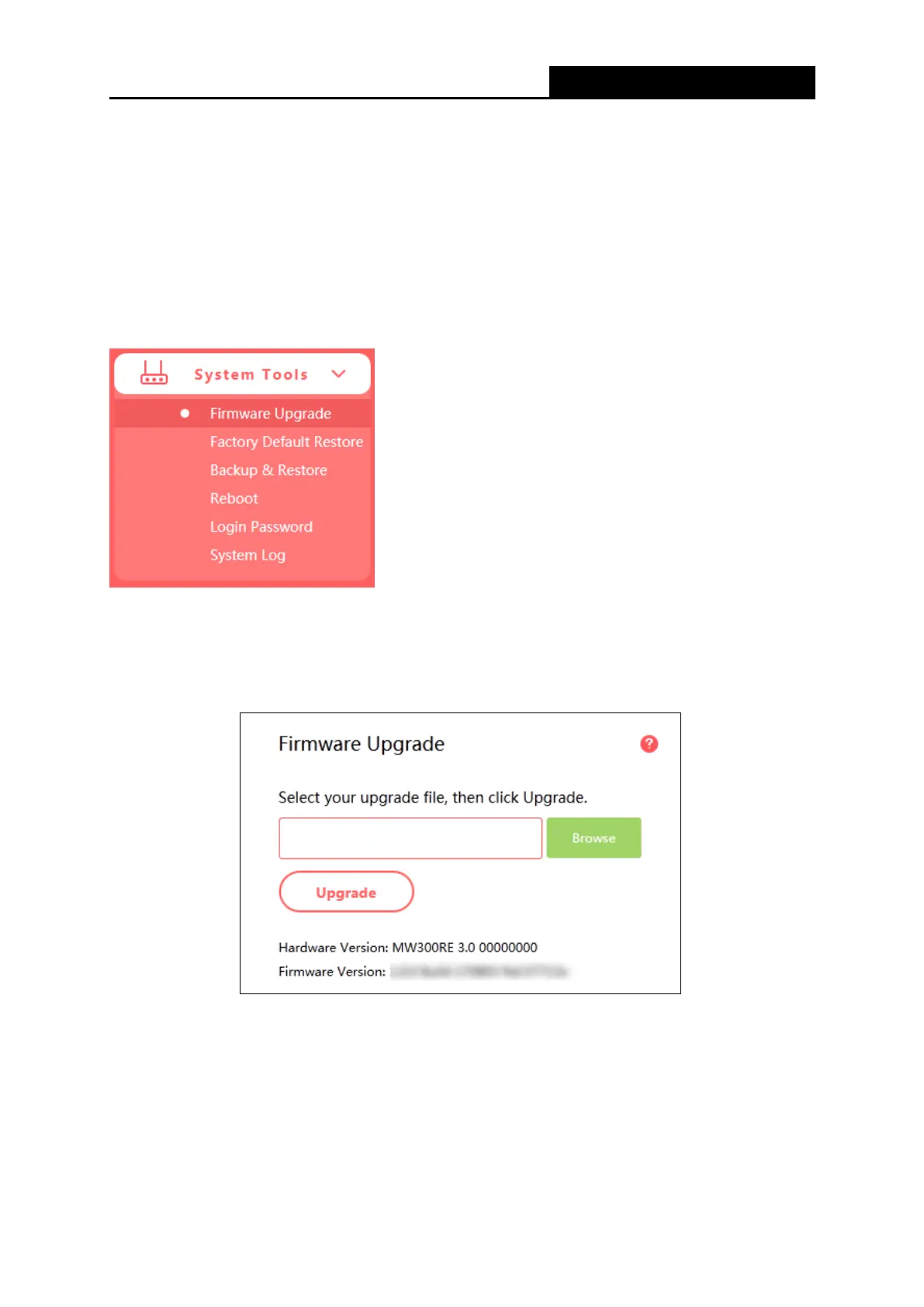

4.5.1 Firmware Upgrade
Go to System Tools→Firmware Upgrade, and then you can update the latest version of
firmware for the extender.
• Hardware Version - Displays the current hardware version. The version of the upgrade file
must accord with the extender’s current hardware version.
• Firmware Version - Displays the current firmware version.
To upgrade the extender's firmware, follow the steps below:
Note: To avoid any damage, it is important to keep the extender powered on during the entire process.
1. Download the latest firmware upgrade file from our website (http:// www.mercusys.com).
- 14 -

Mercusys MW300RE Specifications

General

Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Certification	CE
Product color	White
LED indicators	Yes
Sustainability certificates	RoHS
Antenna type	External
Antennas quantity	3
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
Wi-Fi data rate (max)	300 Mbit/s
Power consumption (max)	4.3 W
Power consumption (typical)	3 W
Type	Network repeater
Maximum transfer distance	- m
Package depth	121.5 mm
Package width	150.5 mm
Package weight	250 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	74.8 mm
Width	101 mm
Height	75.8 mm
