MERITECH CleanTech EVO Wall - Page 42

42

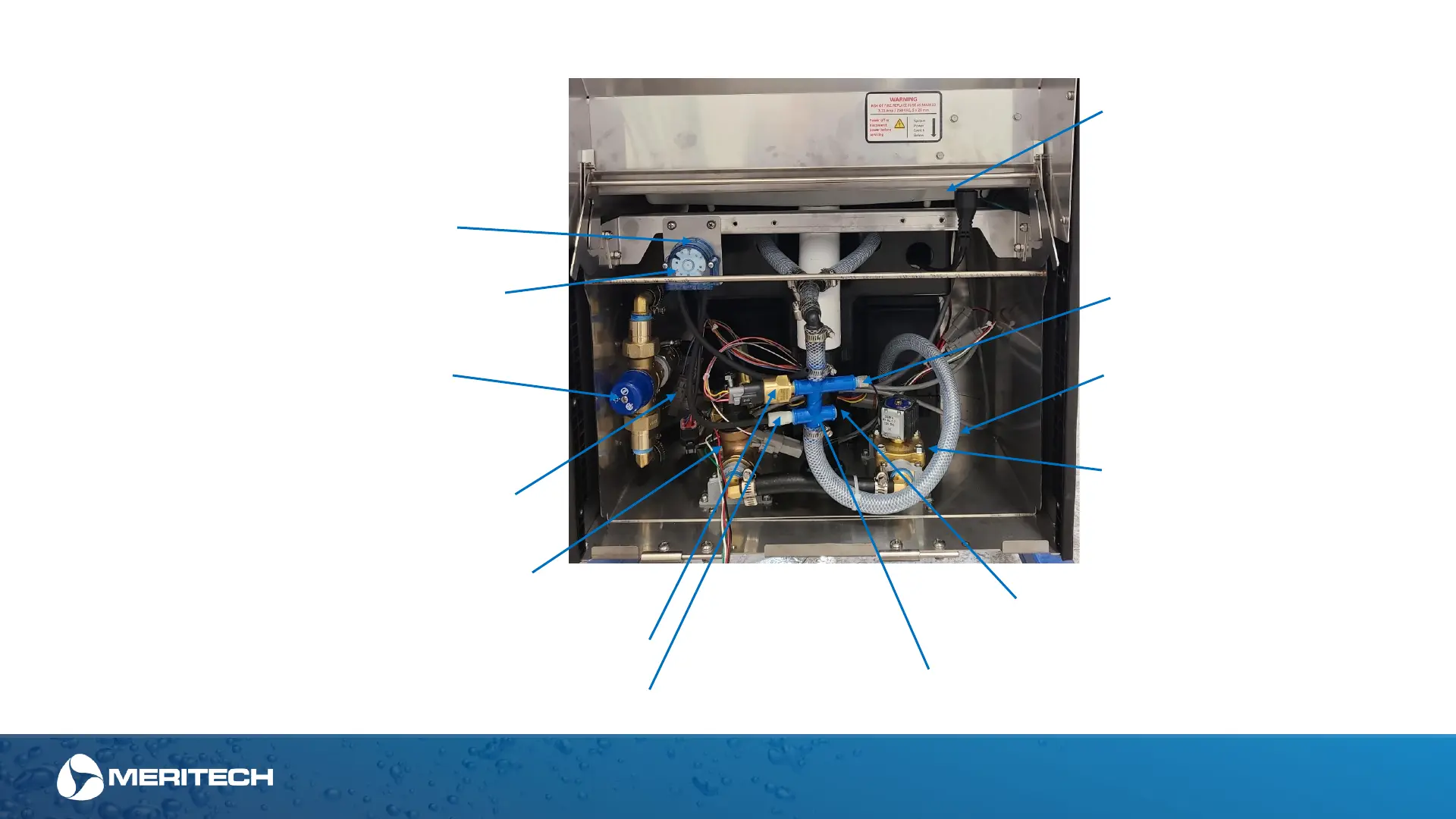

UPX Solutions Pump
TMV (thermostatic mixing valve)
ASSE 1070
Facility Hot & Cold-Water
Inlets w/ Temp Sensors
(back)
Pressure Regulator &
Facility Pressure Sensor
System Power Switch, Fuse
Holder, IEC Power Cord
SelfCleanX Solutions
Pump Location (if equipped)
Handwash Pressure Sensor
UPX Solution Check Valve
UPX Solution Check Valve (if equipped)
Handwash Temp Sensor
Water Valve & Backflow
Preventor – ASSE 1024
Air Curtain Valve
(if equipped)
Solution Dosing Chamber
Internal Components
