 When to replace the front frame?
◇ The front frame is deformed or out of shape.
◇ The scooter can not avoid bumping because of the deformed front
frame.
 How to replace the front frame?
◇ Please proceeding following steps.
1. Remove the front shroud. [See 2.4.1]
2. Remove the controller. [See 2.4.2]
3. Remove the frame clasper. [See 2.4.3]
4. Remove the front wheel assembly. [See 2.4.4]
5. Remove the tiller assembly. [See 2.5.1]
6. Romove the seat post assembly. [See 2.1.1]
7. Loosen screw (1.06) and remove tiller steering lock (1.04).
8. Remove the headset bearing (1.02).
9. Loosen screws (1.37) and remove the battery connector kit (1. 3).
10. Loosen screws (1.26) and then remove front connector kit (1.2).
11. Replace the front frame (1.01).

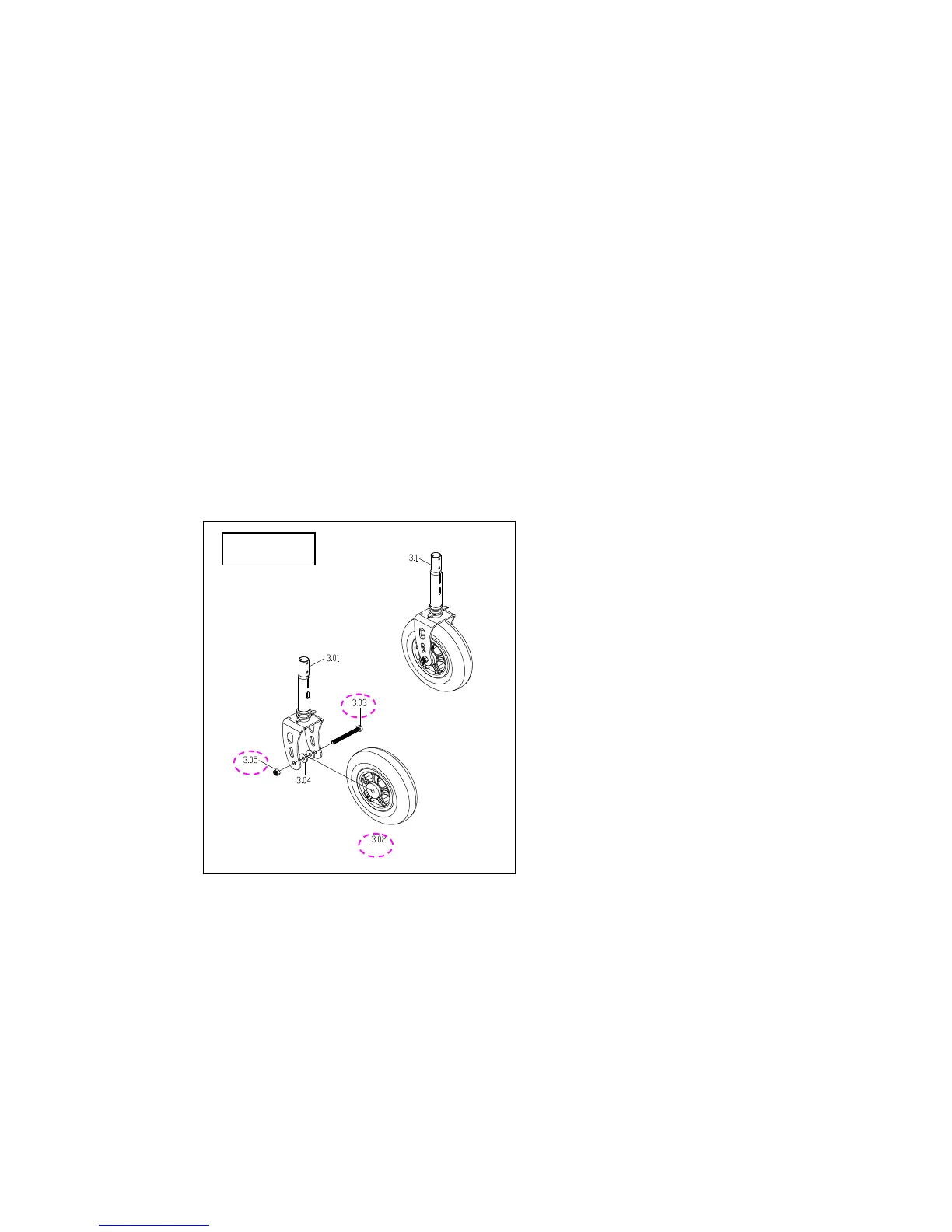

Illus. 09
