Merits S539 - To Replace the Rear Frame

7
2.3.5 To replace the rear frame
 When to replace the rear frame?
◇ If the rear frame is deformed or out of shape.
◇ The scooter can not avoid bumping because of the deformed rear
frame.
 How to replace the rear frame?
◇ Please proceeding following steps.
1. Remove the rear shroud. [See 2.3.1]
2. Remove the anti-tip wheel. [See 2.3.2]
3. Remove the driven wheel. [See 2.3.3]
4. Remove the transaxle assembly. [See 2.3.4]
5. Loosen screws (3.16) and remove the connector kit (3.1).
6. Replace the rear frame (3.01).

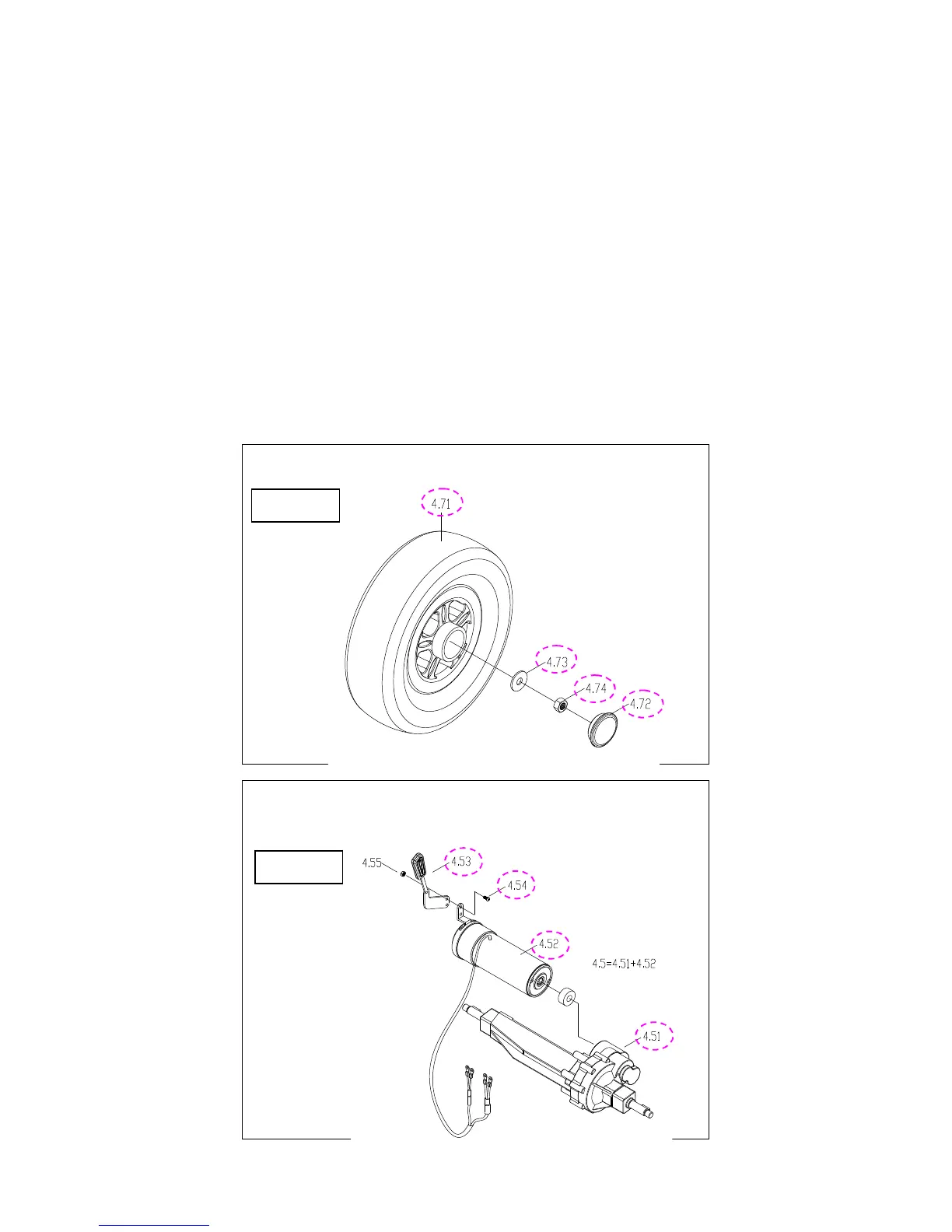

Illus. 06
Illus. 07
