Merits S539 - To Replace the Controller; To Replace the Frame Clasper; To Replace the Front Frame

9
1. Hold the screw (3.03) and loosen the nut (3.05),
2. Remove/replace the front wheel (3.02).
2.4.3 To replace the controller [see Illus. 10]
◆ When to replace the controller?
◇ The controller is not working properly.
◆ How to replace the controller?
◇ Please proceeding following steps.
1. Unplug all connectors on the controller.
2. Use screwdriver to loosen screws (1.39), and then remove/replace
the controller (1.38).
2.4.4 To replace the frame clasper [See Illus. 10]
 When to replace the frame clasper?
◇ The frame clasper is deformed or out of shape.
◇ The front and rear section can not link together securely.
 How to replace the frame clasper?
◇ Please proceeding following steps.
1. Use hex. tools and wrench to loosen the screw (1.12), and then
take the spring (1.11) out.
2. Loosen the screws (1.10) and remove the cover (1.09).
3. Replace the frame clasper (1.08).
2.4.5 To replace the front frame [See Illus. 10]

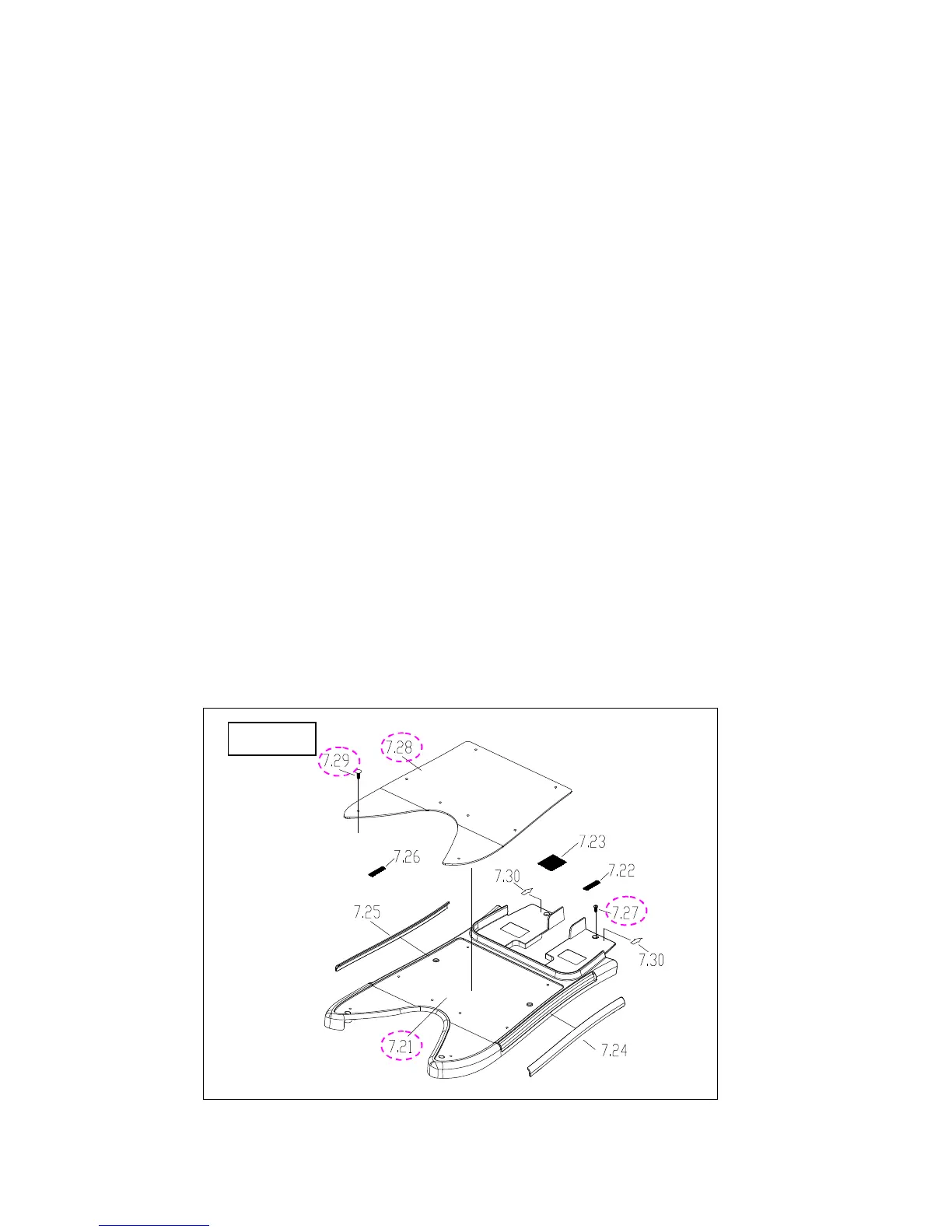

Illus. 0
8
