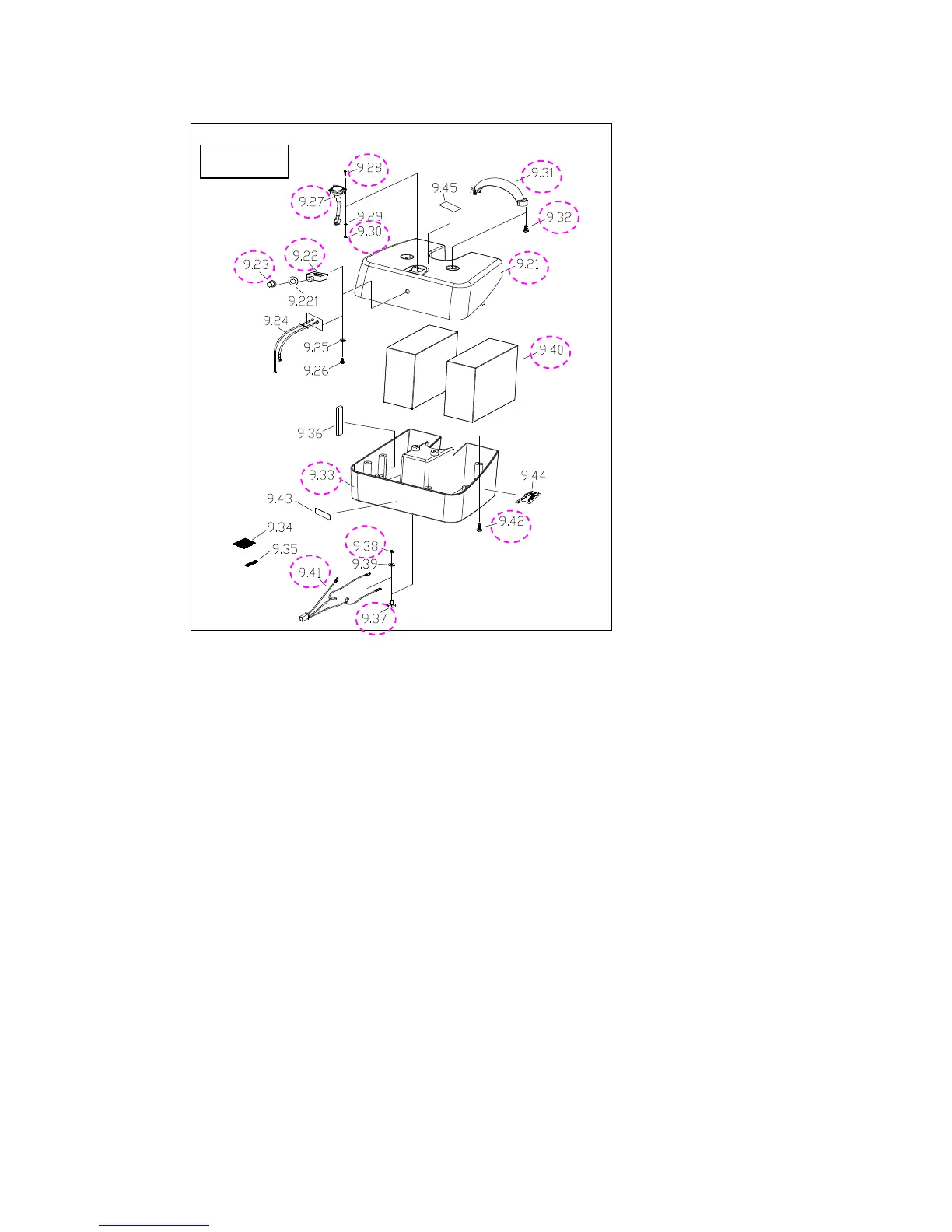

5. Remove/replace the handle (9.31) or the upper cover (9.21).
2.3 How to replace or repair the Rear Section Assembly
The rear section assembly is composed of the rear frame, the transaxle
assembly, the rear wheel assembly, the fender, the anti-tip wheel, and so on.
Press the black clasper (1.09) to separate the front and rear section. [See
Illus.10]
2.3.1 To replace the rear shroud [See Illus. 04]
◆ When to replace the rear shroud?
◇ The rear shroud is out of shape.
◇ The scooter can not avoid bumping because of the broken fender.
◆ How to replace the rear shroud?
◇ Please proceeding following steps.
1. Remove the plastic plug (7.67).
2. Use screwdriver to loosen screws (7.64).
3. Remove/replace the rear shroud (7.5).
