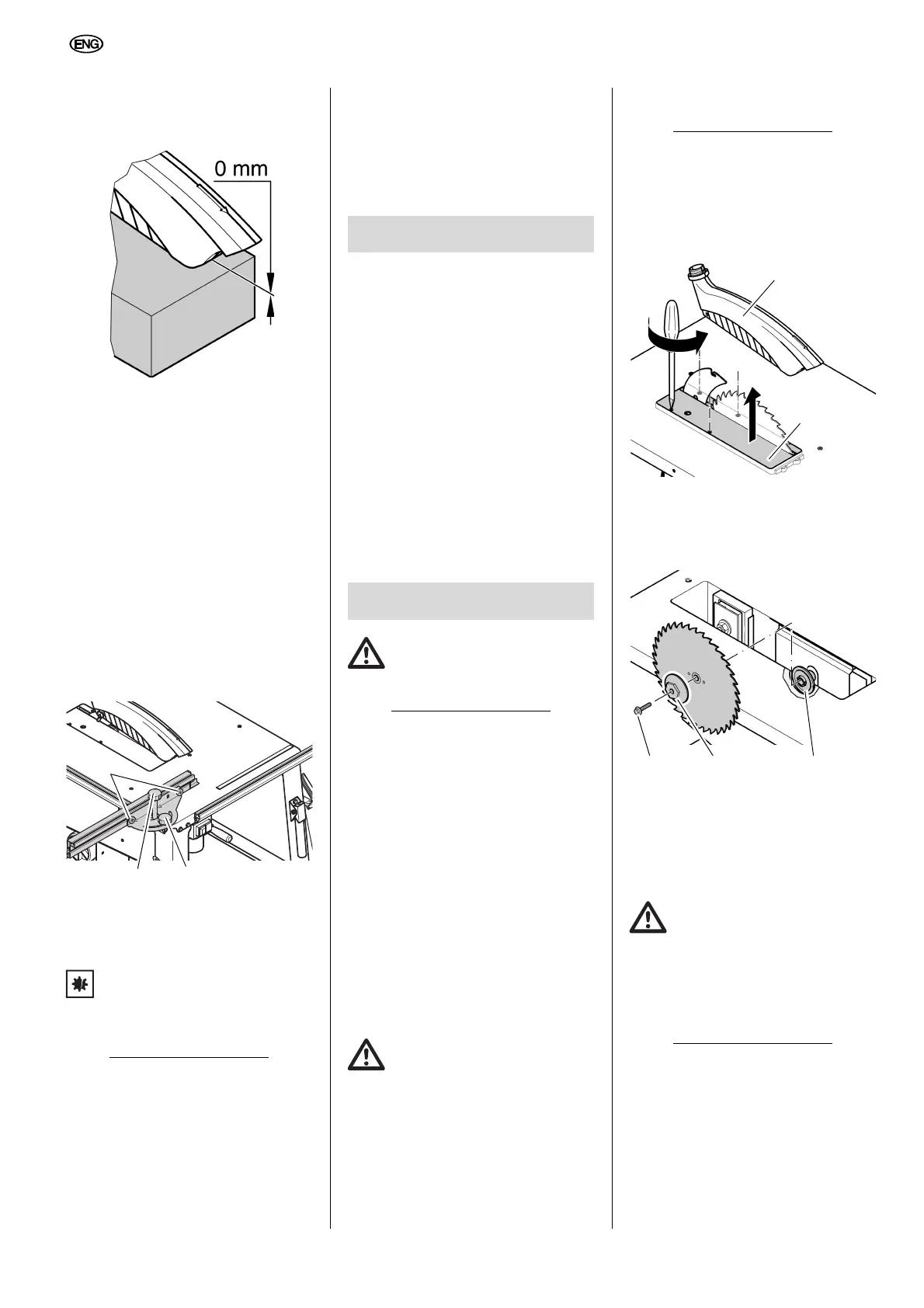

5. Set the cutting height of the saw
blade. The blade guard must rest
with its front edge on the workpiece.
6. Set and arrest the saw blade tilt.
7. Start motor.
8. Cut workpiece in a single pass.
9. Turn machine off if no further cutting
is to be done immediately after-
wards.
8.5 Sawing with the mitre
fence
1. Slide universal fence into the guide
extrusion at the left-hand side of the
saw.
2. Set required mitre angle and arrest
with knob (114).
3. Align fence extrusion and arrest in
position with knurled thumb screws
(115).
Caution!
The plastic nose must have at least
10 mm distance to the line of cut.
4. Tighten knob (116) just enough for
the fence to slide easily on the
guide extrusion.
5. Set the cutting height of the saw
blade.
6. Set and arrest the saw blade tilt.
7. Start motor.
8. Cut workpiece in a single pass.
9. Turn machine off if no further cutting
is to be done immediately after-
wards.
Before making a cut: make a trial
cut on appropriate waste pieces.
Always lay the workpiece on the
saw table such that it cannot tip
over or wobble (e.g. place a curved
board with the convex side up).
For long workpieces: use suitable
workpiece supports, for example
roller support or extension table
(see 'Available Accessories').
Keep surfaces of the table top and
table extension clean – in particular,
remove resin residue with a suitable
cleaning and maintenance spray
(optional accessory).
Danger!
Unplug before servicing.
– Repair and maintenance work oth-
er than described in this section
should only be carried out by quali-
fied specialists.
– Damaged parts, particularly safety
devices, must only be replaced with
genuine parts. Parts which have not
been tested and released by the
manufacturer can lead to unfore-
seen damage.
– Check that all safety devices are
operational again after each ser-
vice.
10.1 Changing the saw blade
Danger!
Directly after cutting the saw blade may
be very hot – burning hazard! Let a hot
saw blade cool down. Do not clean the
saw blade with combustible liquids.
Risk of injury, even with the blade at
standstill. Wear gloves when changing
blades.
When fitting a saw blade, observe the
direction of rotation!
1. Raise saw blade fully.
2. Remove blade guard (117).
3. Remove fixing screws of the table
insert extrusion (118) and remove it.
4. Loosen arbor bolt (119) with span-
ner (L.H. thread!). Hold outer blade
collar (120) with open-ended span-
ner to counter.
5. Remove outer blade collar (120)
and saw blade from the saw spin-
dle.
6. Clean clamping surfaces of saw
spindle and saw blade.
Danger!
Do not use cleaning agents (e.g. to
remove resin residue) that could cor-
rode the light metal components of
the saw; the stability of the saw
would be adversely affected.
7. Put on a fresh saw blade (observe
direction of rotation!).
