ENGLISH
32
10.3 Cleaning the saw blade's
height adjustment mecha-
nism
1. Raise saw blade fully and dismount
it (see "Saw blade change").
Now the spindle of the height ad-
justment is accessible from the top.
2. Clean spindle with brush, vacuum,
or compressed air.
3. Apply a light coat of Care and Main-
tenance Spray.
4. Install saw blade and tighten arbor
bolt.
5. Install the table insert.
10.4 Storing the saw
Danger!
Store saw so that
– it cannot be started by unauthor-
ised persons and
– nobody can get injured.
Caution!
Do not store saw unprotected out-
doors or in a damp environment.
10.5 Maintenance
Before switching ON

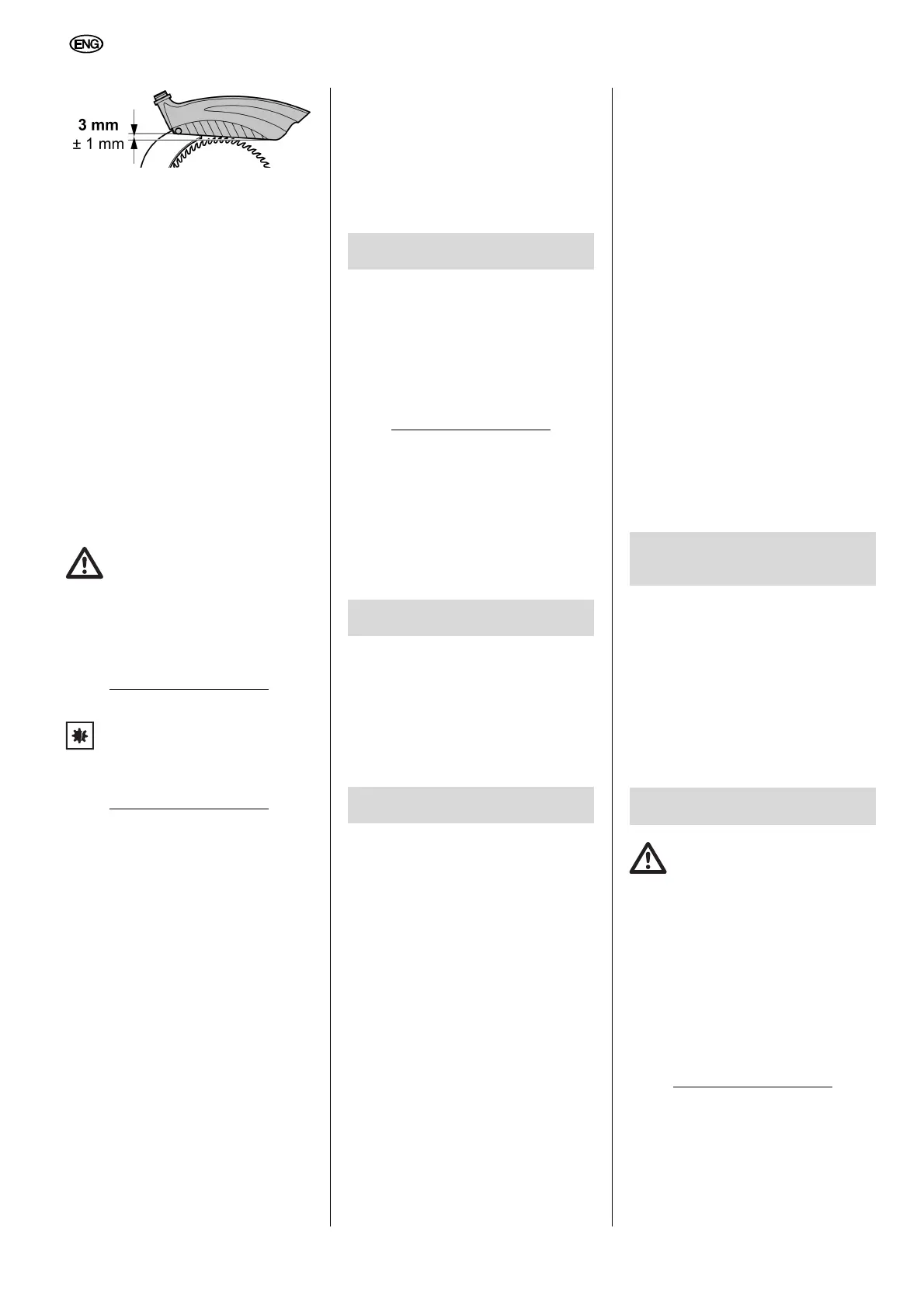

Visual check if distance saw blade –
riving knife is 3...8 mm.
Visual check of power cable and power
cable plug for damage; if necessary
have damaged parts replaced by a
qualified electrician.
After switching OFF
Check to see if the saw blade post-runs
for more than 10 seconds; if so, have
the electronic motorbrake replaced by a
qualified electrician.
Monthly (if used daily)
Remove saw dust and chips with vacu-
um or brush; apply light coat of oil to
guide elements:
– threaded rod of height adjustment;
– swivel segments.
After every 300 hours of operation
Check all screwed connections and
retighten if necessary.
ADanger!
Have your power tool serviced by a
qualified repair person using only iden-
tical replacement parts. This will ensure
that the safety of the power tool is
maintained.
Contact your local Metabo representa-
tive if you have Metabo power tools re-
quiring repairs. See www.metabo.com
for addresses.
You can download a list of spare parts
from www.metabo.com.
Lower saw blade fully.
Dismount add-on parts (fence, slid-
ing carriage, table extension).
If possible, use the original card-
board box for shipping.
For special tasks the following accesso-
ries are available at your specialised
dealer – see back cover for illustrations:
A Sliding Carriage
For convenient guiding of long
stock.
B Suction Adapter
To connect a shop vacuum to the
dust collection attachment.
C Care and Maintenance Spray
For removing resin residue and pre-
serving metal surfaces.
D Saw blade HW 315 x 3.0 x 30
24 alternate bevel teeth
General-purpose blade for rip and
cross cuts, also in particle board
(standard delivery).
E Saw blade CV 315 x 1.8 x 30
56 multiple combination teeth
For solid wood and particle board.
F Saw blade CV 315 x 1.8 x 30
80 neutral multiple teeth
For especially smooth cuts in solid
wood and particle board.
G Saw blade TCT 315 x 2.8 x 30
48 universal alternate bevel teeth
For all woods and wood-derived
materials.
H Sawblade HW 315 x 2.8 x 30
24 square teeth
for solid wood, rip and cross cuts.
I Saw blade HW 315 x 2.8 x 30
48 alternate top bevel teeth
for solid and laminated wood, parti-
cle board, MDF, composite materi-
als
J Saw blade HW 315 x 2.8 x 30
84 alternate top bevel teeth
for solid and laminated wood, parti-
cle board, MDF, composite materi-
als
K Roller Stand RS 420
The machine's packing can be 100%
recycled.
End-of-life power tools and accessories
contain large amounts of valuable raw
materials and plastics which must be
recycled.
This manual was printed on chlorine-
free bleached paper.
Danger!
Before carrying out any fault servic-
ing, always do the following:
1. Switch machine OFF.
2. Unplug mains cable.
3. Wait for saw blade to come to
standstill.
Check to see that all safety devices
are operational after each fault ser-
vice.
11. Repairs
12. Transport
13. Available Accessories
14. Environmental Consider-
ations
15. Troubleshooting
