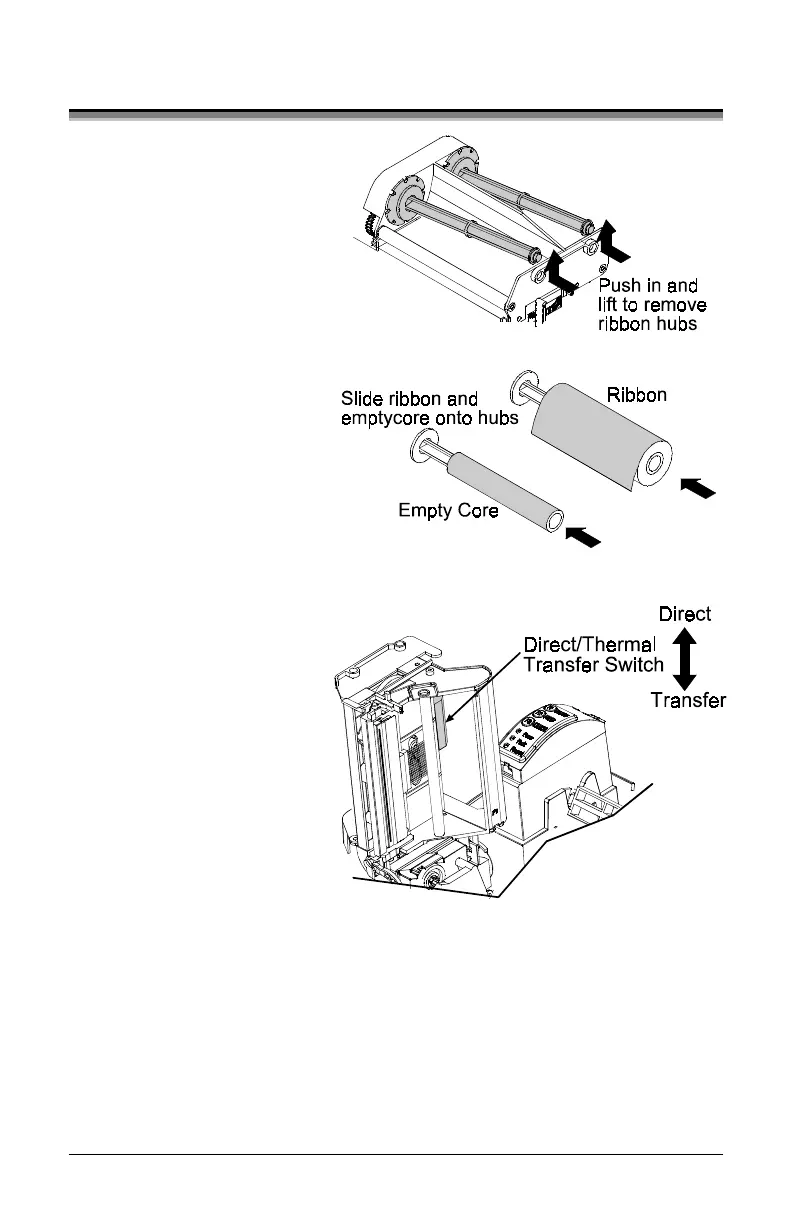

3.3 Loading Ribbon (Thermal Transfer)
1. Open the cover.
2. Remove the two
ribbon hubs.
3. Slide a roll of Ribbon
onto one of the Ribbon
Hubs and an Empty
Core onto the other
hub.
4. Push the Printhead
Latch toward the back
of the printer and raise
the Printhead Carrier
Assembly.
5. Slide the
Direct/Thermal
Transfer switch to the
‘Transfer’ position.
