Metos CB184A - Placing of Appliance; Connection to Power Supply Mains

17.9.2007 Rev. 2.4
Installation
10

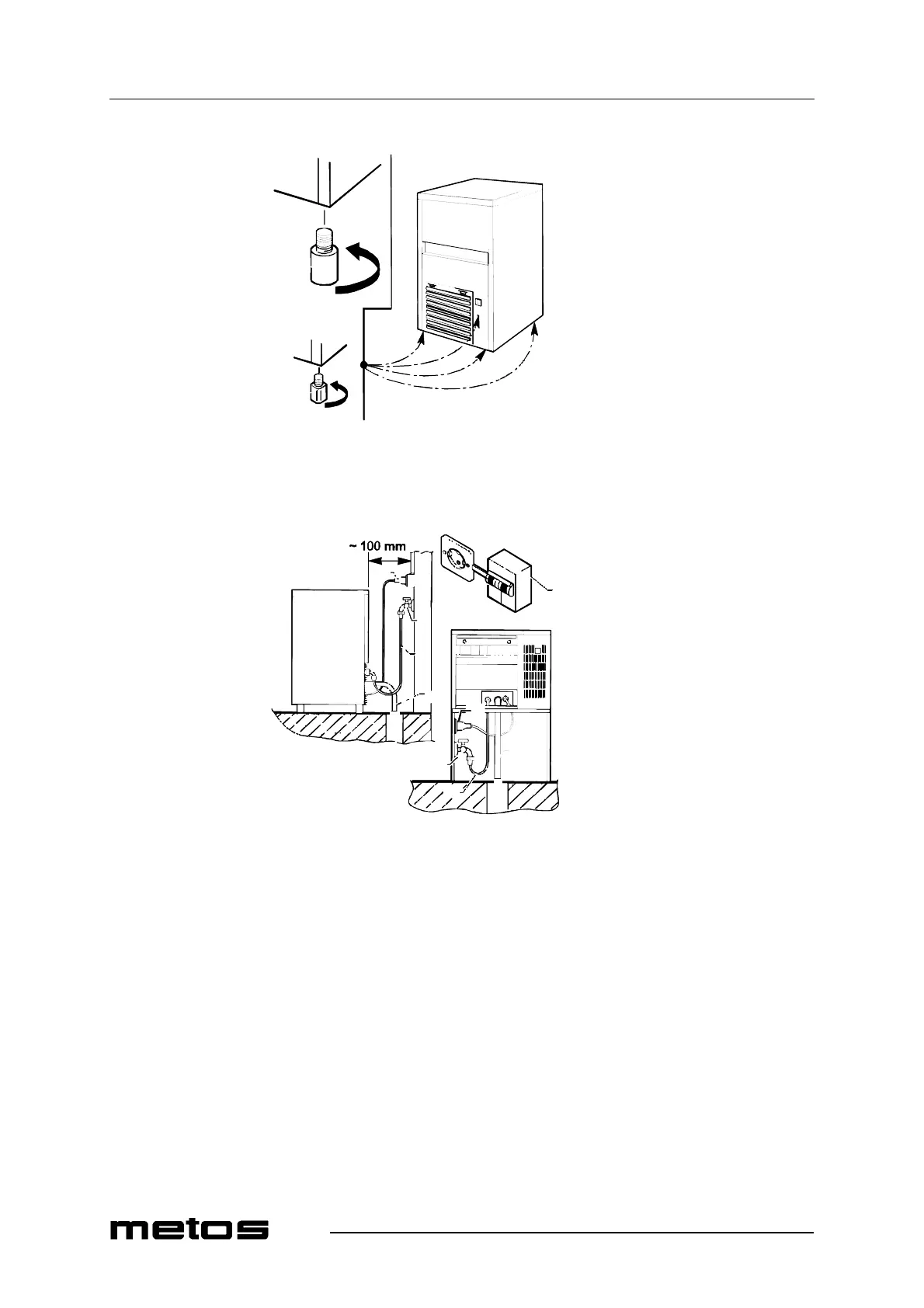

5.8 Placing of appliance
1. Plug
2. Socket with switch
3. Water tap
4. Water supply pipe
5. Water drain pipe
5.9 Connection to power supply mains
The electrical wiring system scheme is attached inside of the front panel of the ice cube
maker.
To reach this, unplug the power cable from the socket, unscrew the screws, which fasten
the front panel and slide it away.
