17.9.2007 Rev. 2.4
Installation
12

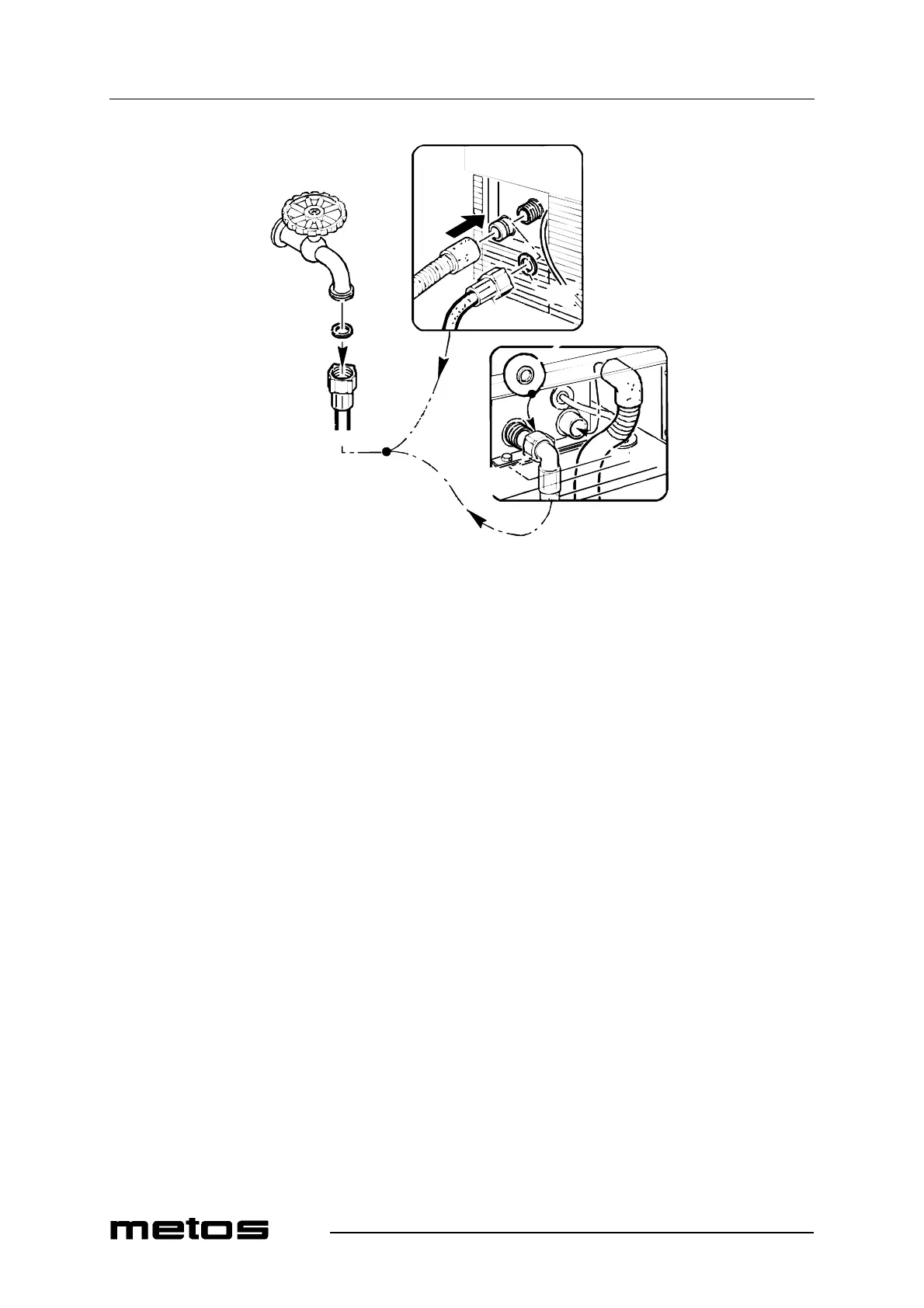

Insert the special gaskets provided in the two threaded ring nuts of the water pipe supplied
with the appliance.
Without exerting excessive force in order not to risk cracking the unions, firmly tighten a
threaded ring nut on the outlet of the solenoid valve located in the back of the ice cube
maker. The other threaded ring nut must be screwed to the water tap, this must be provided
with a thread too.
5.10.2 Connection to water drain pipe
Fix the water drainage pipe in the housing provided on the back of the appliance.
