17.9.2007 Rev. 2.4
Installation
13

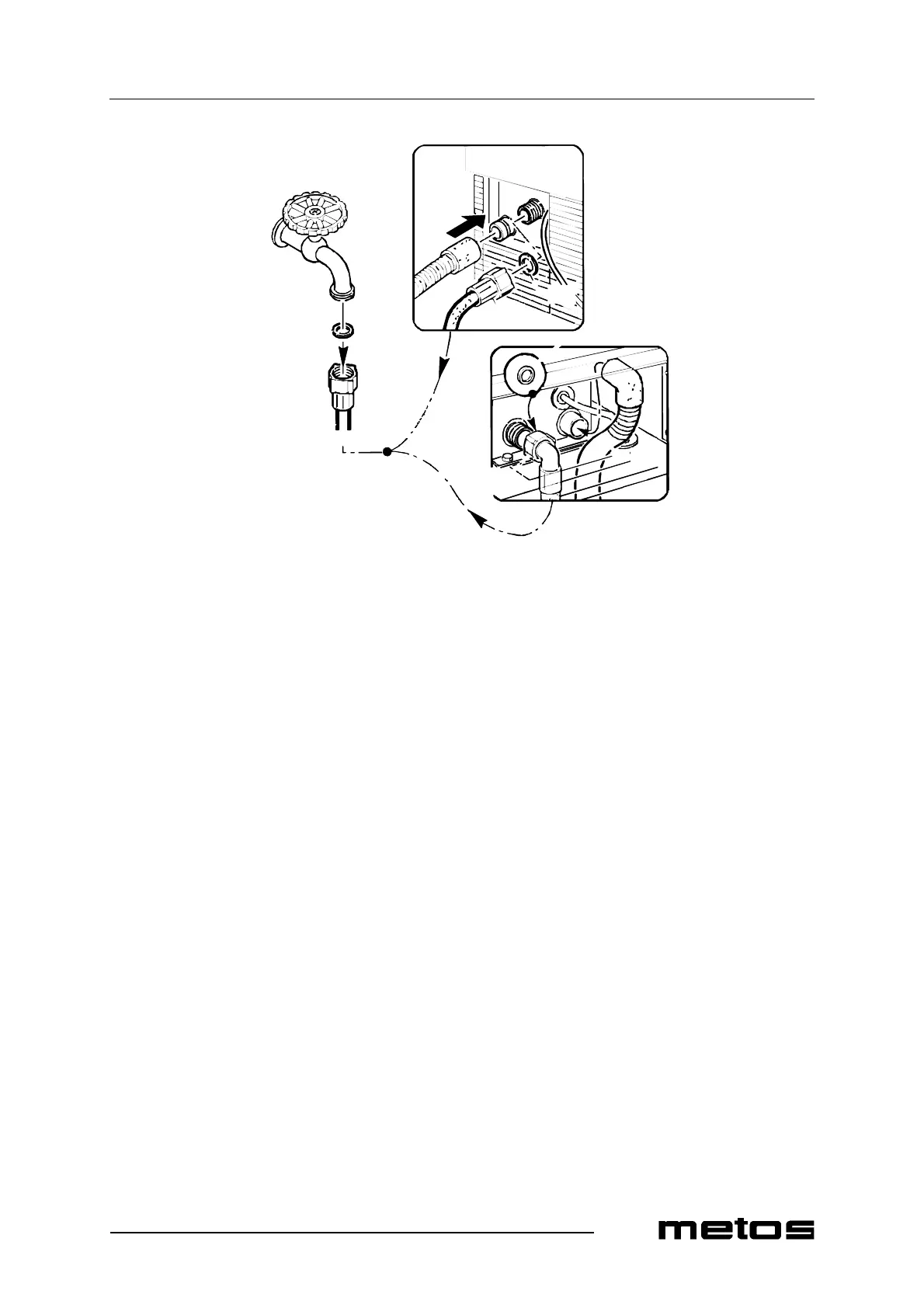

Make sure that:
• The internal diameter of the hose is 22 mm.
• The water-discharge hose is not throttled in any point throughout its length.
• The discharge hose presents a slope of at least 5 % on its entire length and there
are no air pockets in the hose.
• Lead the discharge hose into an open drain trap, head of the pipe must stay over an
drain trap.
5.11 Distance of other fixtures
Do not obstruct the ventilation and heat-dissipation grids, since poor air conditioning, in
addition to reducing efficiency and causing poor operation, may also cause serious dam-
age to the appliance.
Leave distance at least 50 mm from the sides and 100 mm from the back of the ice cube
maker, to make sure that air conditioning is sufficient.
