CHAPTER 4: QUICKFLY RIGGING
31
MCF-750 CASTER FRAME
The MCF-750 caster frame safely transports up to three
750-LFC loudspeakers, making it easy to assemble and
disassemble arrays in blocks of three cabinets. There are two
versions available: one for MRK-750-equipped cabinets
(PN 40.271.070.02), the other for cabinets without rigging
(PN 40.271.070.03). The caster frame’s sturdy construction
allows it to be conveniently moved with forklifts (when cabinets
are equipped with the MRK-750 rigging kit only). The MCF-750
can also be used to support 750-LFC loudspeakers in
groundstacked configurations.
The caster frame for 750-LFC cabinets equipped with the
MRK-750 rigging includes four fixed, 0° link slots that attach to
the cabinet at the bottom of the stack and are secured with the
quick-release pins (0.25 in x 0.90 in, black button with 6-inch
lanyard, PN 134.036) included with the 750-LFC.
NOTE: Two versions of the MCF-750 caster frame
are available from the factory—configured for
cabinets with the MRK-750 rigging kit
(PN 40.271.070.02) or without (PN 40.271.070.03).

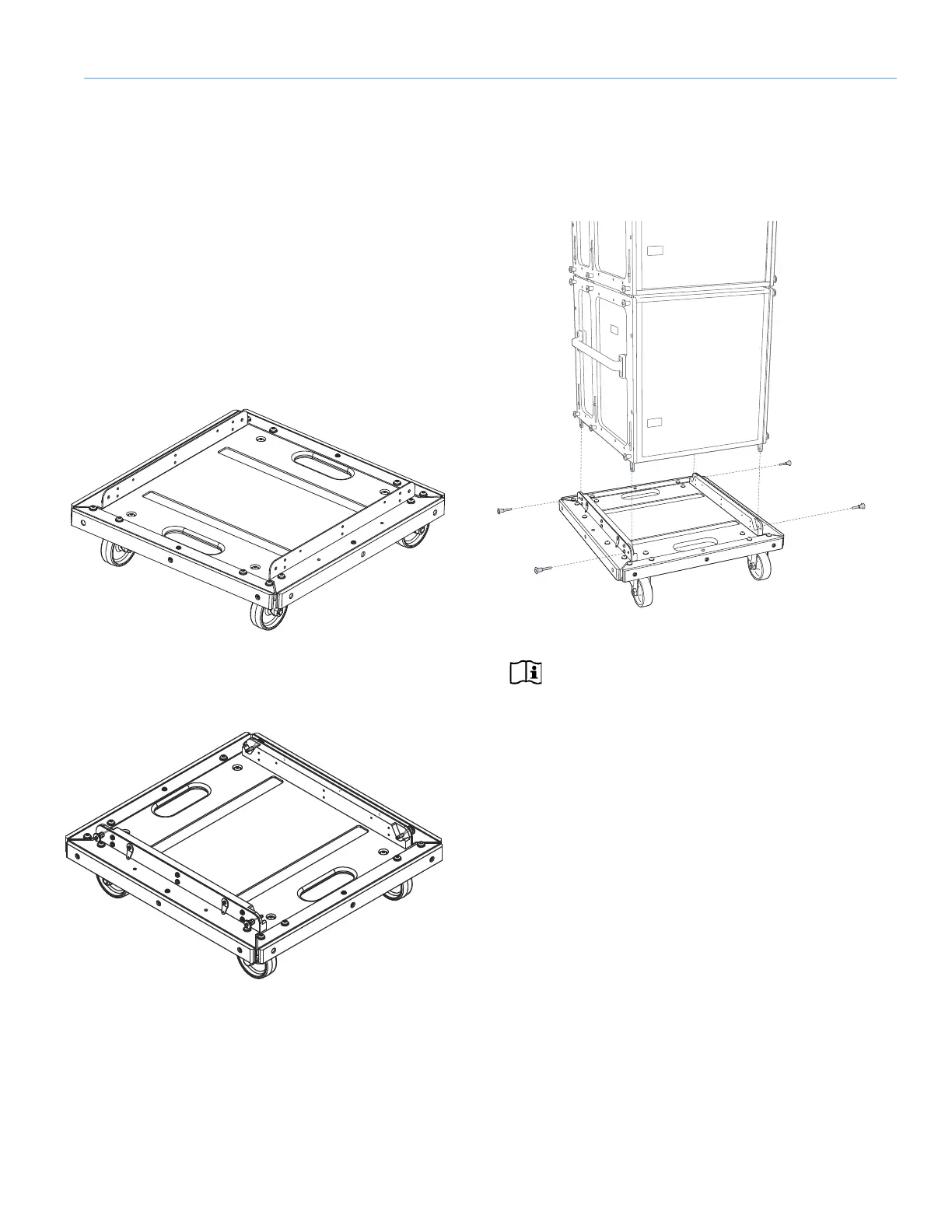

Figure 24: MCF-750 Caster Frame for cabinets without rigging
Figure 25: MCF-750 Caster Frame for cabinets with rigging
Figure 26: MCF-750 Caster Frame with 750-LFC Stack, Exploded View
