41
APPENDIX A: RAIN HOODS
Weather-protected 750-LFCs include a rain hood for indoor/outdoor touring and sheltered outdoor installations. Meyer
Sound offers two rainhood models: a fixed rigid rainhood for permanent installations and a collapsible hood for portable
applications. Please specify your rainhood preference when placing the order.
750-LFC RIGID RAIN HOOD
The 750-LFC rigid removable rain hood is easily attached and removed with the included four screws.
To attach the 750-LFC rigid rain hood:
1.Attach any required cables to the 750-LFC loudspeaker.
2.Attach the rain hood to the user panel, and secure it to the center of the panel with the four pan head Phillips
6/32 x 0.38-inch stainless steel screws provided.
3.Make sure to tighten the screws to create a good seal against the user panel. Meyer Sound recommends using a torque
value of 10–12 in-lbs (1.1–1.4 N·m).
750-LFC COLLAPSIBLE RAIN HOOD
The 750-LFC collapsible rain hood is installed on the unit when shipped. Four screws secure its frame permanently.
To use the 750-LFC Collapsible rain hood:
1.Detach the Velcro straps and extend the rainhood
2.Extend the lower flap for splash protection.
3.Attach any required cables to the 750-LFC.
The clear windows let you easily locate the connectors on the user panel.
4.To stow the rainhood, reverse the steps.
CAUTION: The weather-protected 750-LFC must be mounted with a 0-degree tilt, or preferably with a slight
downtilt. This shields the driver from the elements and does not accumulate water.

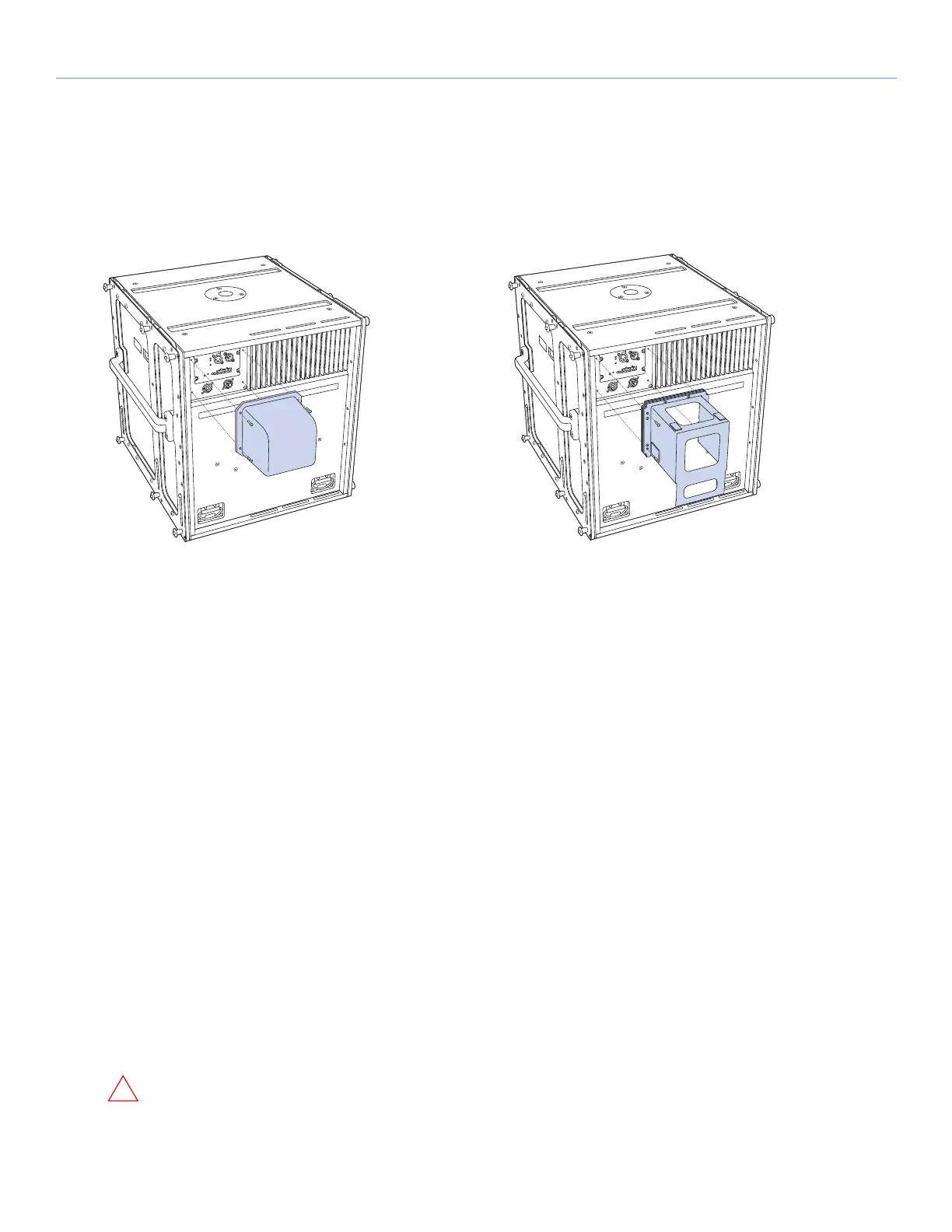

Figure 35: 750-LFC with Rigid Rain Hood (left) and Collapsible Rain Hood (right)
