CHAPTER 4: CAL COVERAGE
26
CAL 96 Top Split Beams
The CAL 96 model includes a top split beam coverage with
the top beam emanating from the top 32 drivers and the
bottom beam emanating from the bottom 64 drivers.
Figure 3 shows a CAL 96 with top split beams, each with 5
°
beam spread. Also illustrated are the beams’ acoustical
center points.
NOTE: When using the CAL 96 top split beam
configuration, the bottom beam utilizes more
driver channels and therefore yields greater SPL than
the top beam.
CAL 96 Bottom Split Beams
The CAL 96 model also includes a bottom split beam
coverage with the top beam emanating from the top 64
drivers and the bottom beam emanating from the bottom 32
drivers. Figure 4 shows a CAL 96 with bottom split beams,
each with 5
° beam spread. Also illustrated are the beams’
acoustical center points.
NOTE: When using the CAL 96 bottom split
beam configuration, the top beam utilizes more
driver channels and therefore yields greater SPL than
the bottom beam.

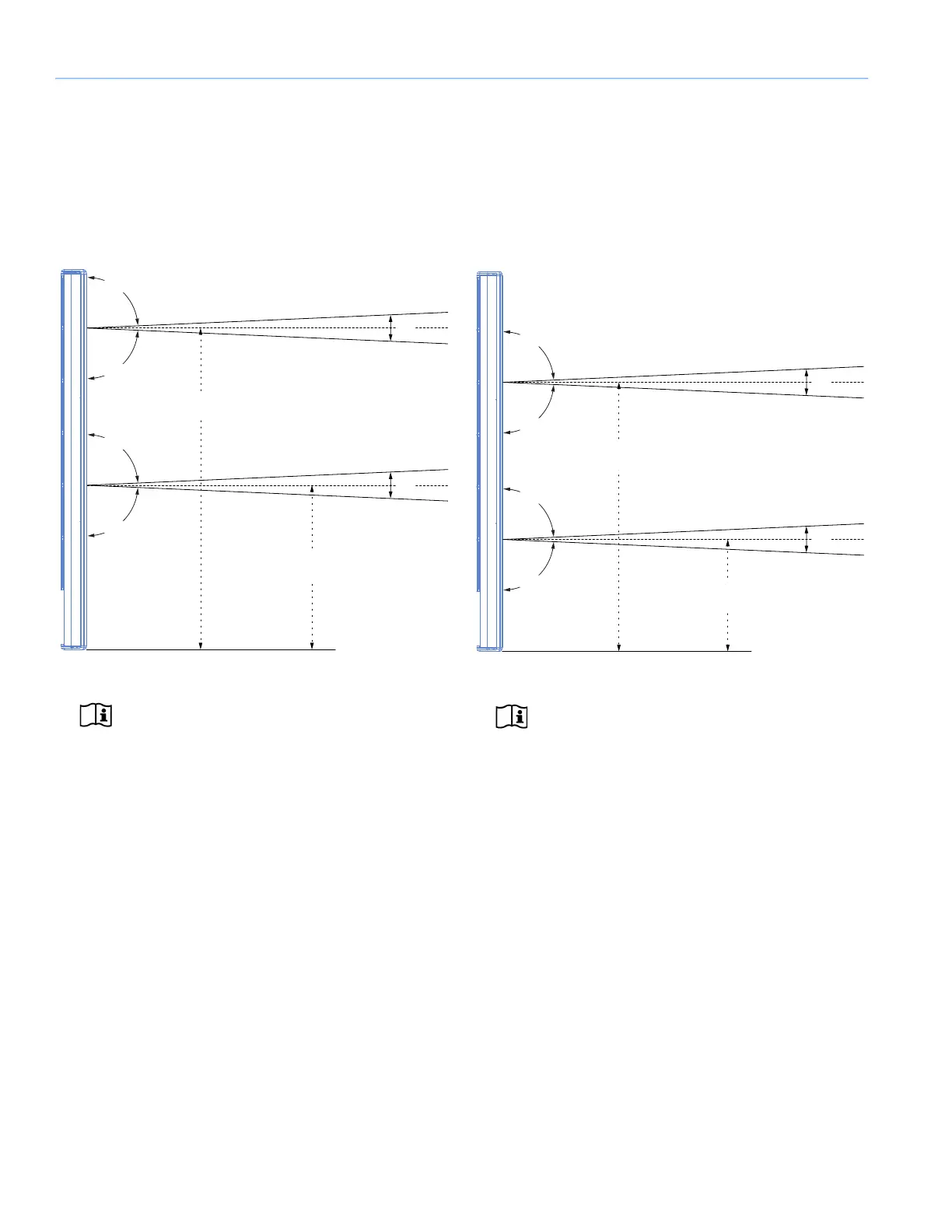

Figure 3: CAL 96 Top Beam Split with 5° Beam Spread
87.5°
87.5°
5°
87.5°
87.5°
5°
102.52
[2604 mm]
52.38
[1330 mm]
Figure 4: CAL 96 Bottom Beam Split with 5° Beam Spread
87.5°
87.5°
5°
87.5°
87.5°
5°
85.80
[2179 mm]
35.68
[906 mm]
