CAL OPERATING INSTRUCTIONS
31
NOTE: Weights include top and bottom
loudspeaker brackets, top and bottom end
caps.

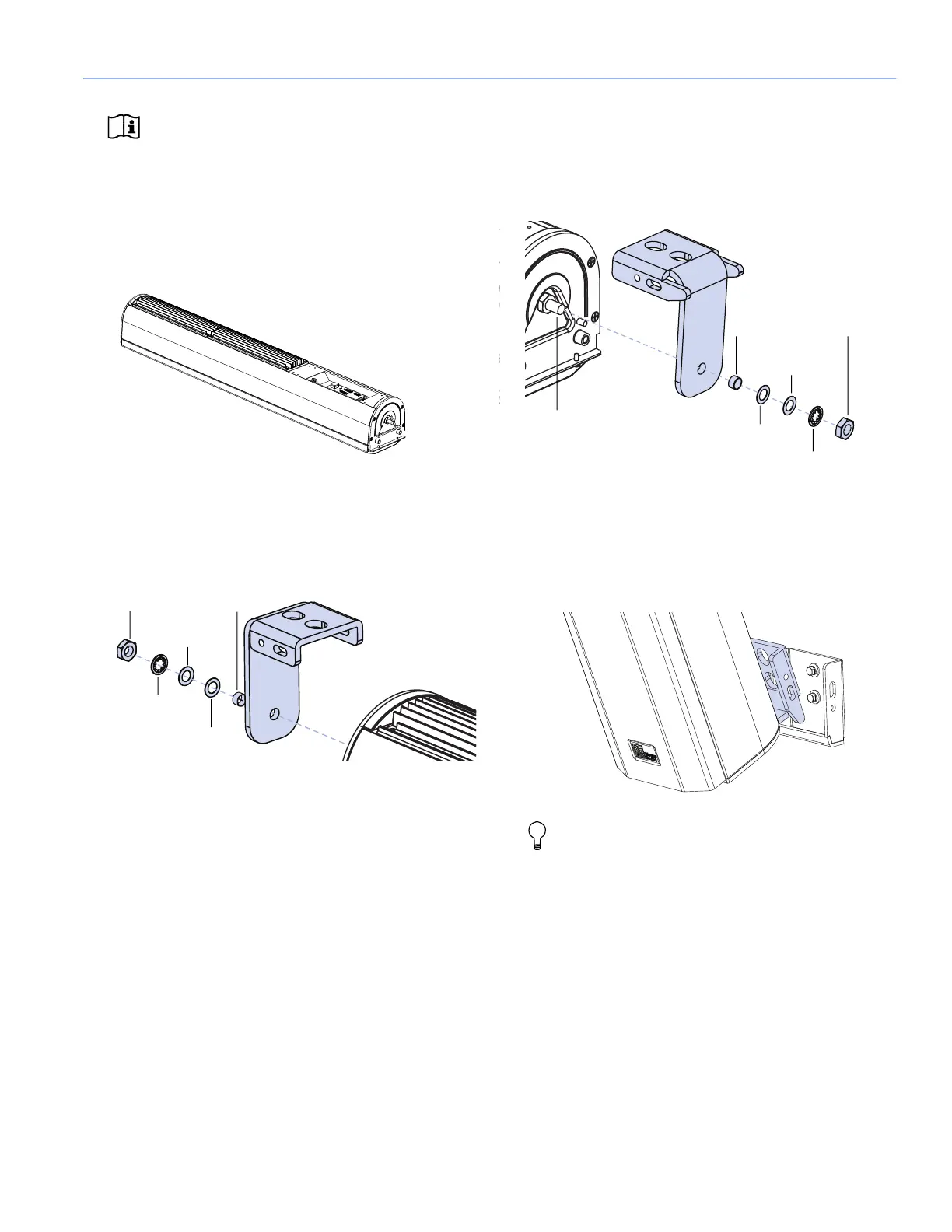

2. If they have not already been attached, attach the
loudspeaker brackets to CAL:
• Place the loudspeaker face down on a soft flat
surface.
• Attach the top loudspeaker bracket (the smaller one)
to the top of the loudspeaker and secure it with the
included hex nut, lock washer, steel flat washer,
nylon flat washer, and spacer. Hand-tighten the hex
nut.
• Attach the bottom loudspeaker bracket (the larger
one) to the bottom of the loudspeaker and secure it
with the included hex nut, lock washer, steel flat
washer, nylon flat washer, and bushing. Hand-tighten
the hex nut.
3. Mount CAL on the wall:
• Insert the bottom of the loudspeaker into the bottom
wall mount plate. The loudspeaker bracket should
rest cleanly in the wall plate.
TIP: An eye nut (not included) can be
temporarily attached to CAL’s 1/2"-13 top
attachment bolt (instead of the loudspeaker plate) to
lift up the unit when inserting the bottom of the
loudspeaker into the bottom wall mount plate. The
eye nut can then be removed and replaced with the
top loudspeaker bracket.
• While resting the bottom of the loudspeaker in the
lower wall mount plate, slowly hinge the top of the
loudspeaker toward the wall until it aligns with the top
wall mount plate.
• Insert the included quick-release pin into the round
screw hole of the top loudspeaker bracket (either
side). The quick-release pin holds the loudspeaker in
hex nut
Steel flat
washer
Nylon flat
washer
Lock
washer
Bushing
Hex nut
Steel flat
washer
Nylon flat
washer
Lock
washer
Bushing
1/2”-13
bolt
To Next Page
