CHAPTER 5: QUICKFLY RIGGING
24
POLE-MOUNTING THE UPQ-1P
You can mount a single UPQ-1P loudspeaker on a heavy-
duty loudspeaker stand with standard a 1-1/2” pole using its
integral pole mount receptacle. The load rating for the stand
must meet or exceed the weight of the UPQ-1P loudspeaker
(108 lbs; 49 kg) and be installed according to the manufac-
turer’s instructions.
THE MYA-UPQ MOUNTING YOKE
The MYA-UPQ (PN 40.185.052.01) mounting yoke suspends
a single UPQ-1P loudspeaker and allows a wide range of
horizontal and vertical adjustment. The mounting yoke’s
bottom bar attaches to the bottom plate of the loudspeaker
with two M10 mounting screws (included). A “C” or “G”
hanging clamp and steel safety cable (not included) are
required to suspend the MYA-UPQ mounting yoke.
NOTE: The top bar of MYA-UPQ mounting
yoke accommodates hanging clamps with
standard 1/2-inch or 12 mm bolts.

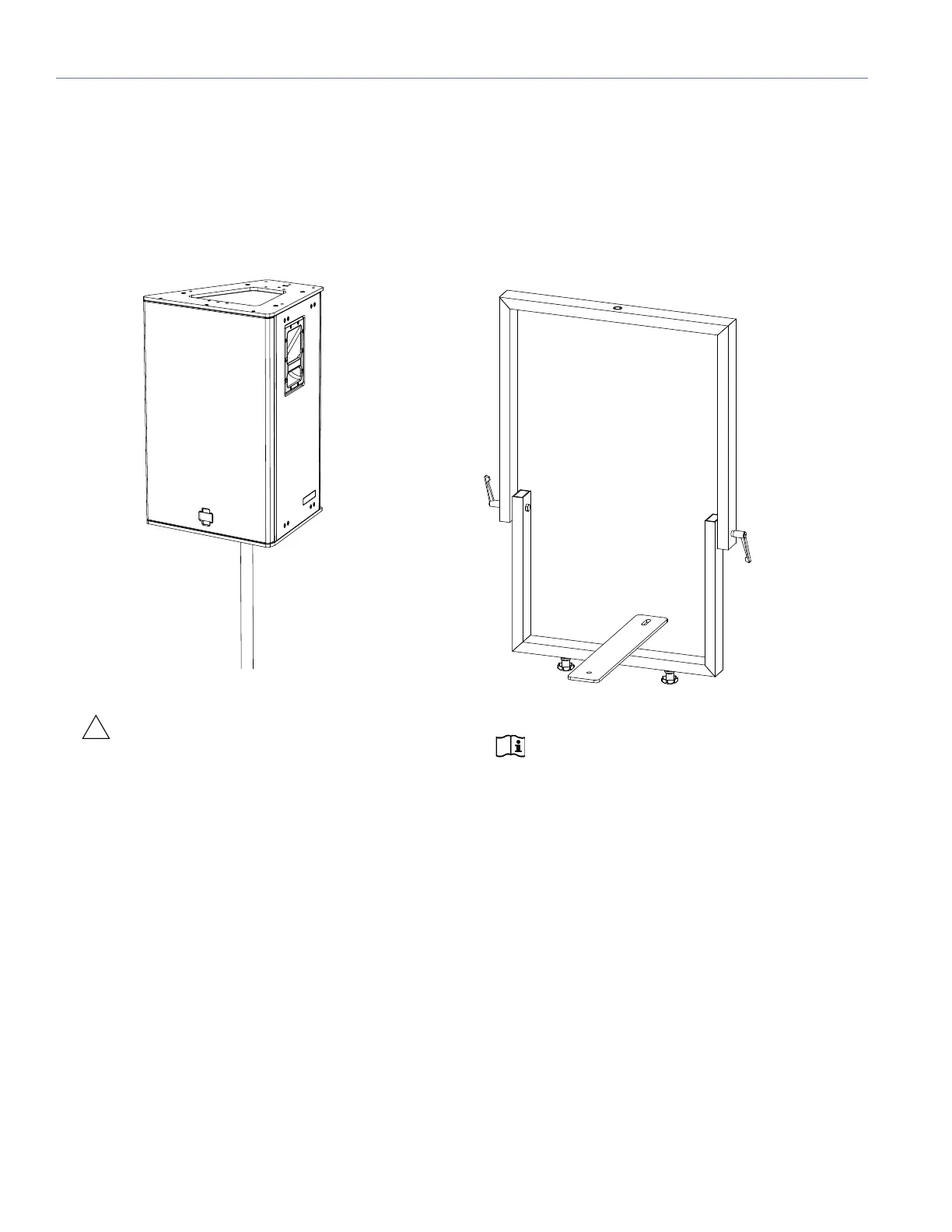

UPQ-1P Mounted on Pole
CAUTION: Make sure the pole is designed to
support the total weight of the UPQ-1P loud-
speaker and observe all safety precautions specified
by the pole manufacturer.
MYA-UPQ Mounting Yoke
To Next Page
