33
APPENDIX A: OPTIONAL VEAM MULTIPIN CONNECTOR
The UPQ-1P loudspeaker requires a grounded outlet. It is
very important that the system be properly grounded in
order to operate safely and properly. Figure 3 illustrates cor-
rect wiring for the creation of power cables and distribution
systems for UPQ-1P loudspeakers equipped with VEAM
multipin connectors.
For complete wiring conventions and pin-outs for AC, audio,
and RMS connections, refer to the Meyer Sound document
VEAM Cable Wiring Reference (PN 06.033.113.01).
Meyer Sound offers the VIM-4 VEAM interface module with
four VEAM connectors in the front and a single-phase IEC
309 32-amp connector in the rear to distribute power, audio,
and RMS to UPQ systems equipped with VEAM connectors.

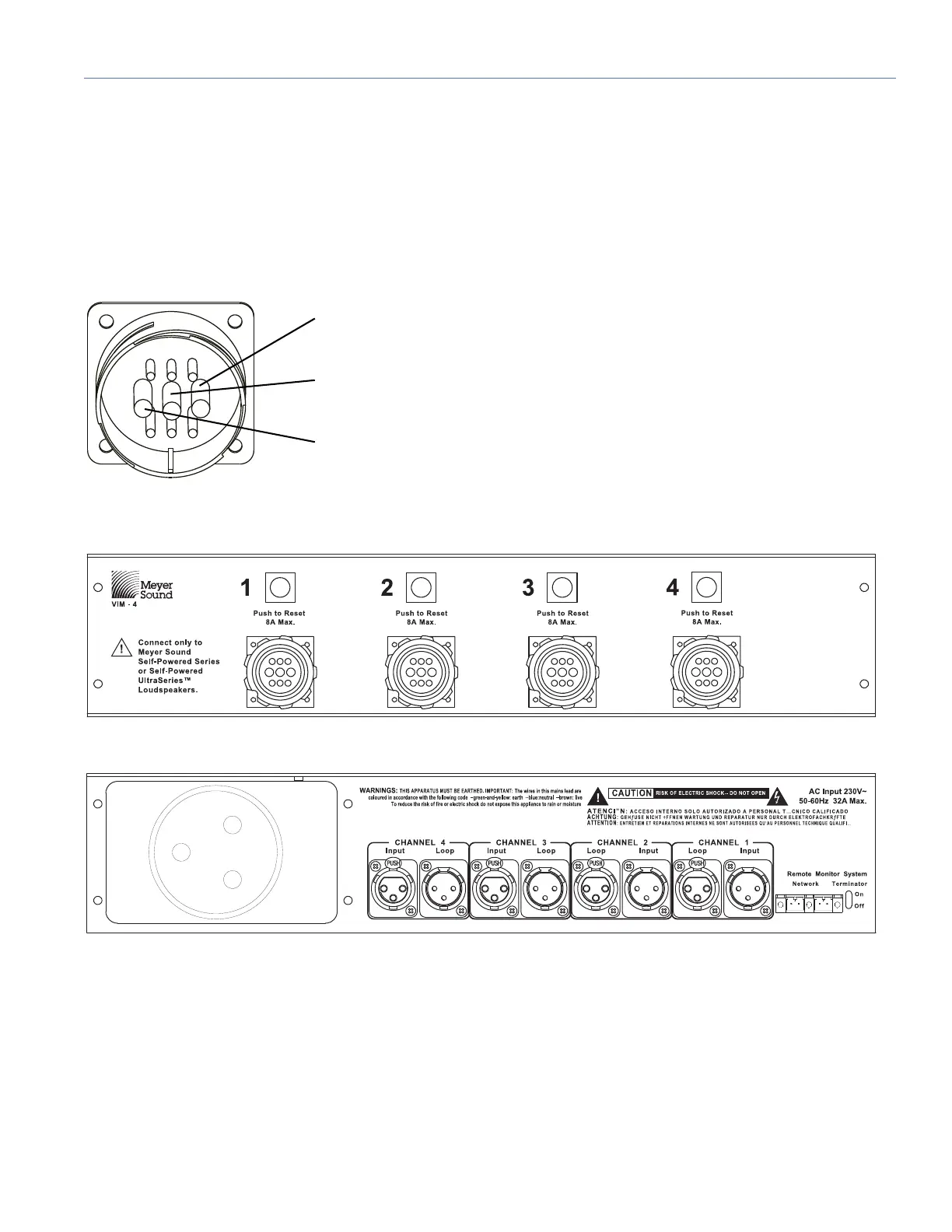

Figure 3: VEAM Multipin Connector Pin-Outs for Power
Line (brown)
Ground (green/yellow)
Neutral (blue)
VIM-4 Module, Front and Rear Panels
