UPQ-1P OPERATING INSTRUCTIONS
37
Dimensions
19.00" w x 28.27" h x 18.18" d (483
mm x 718 mm x 462 mm)
W
eight
W
eight 108 lbs (49 kg)

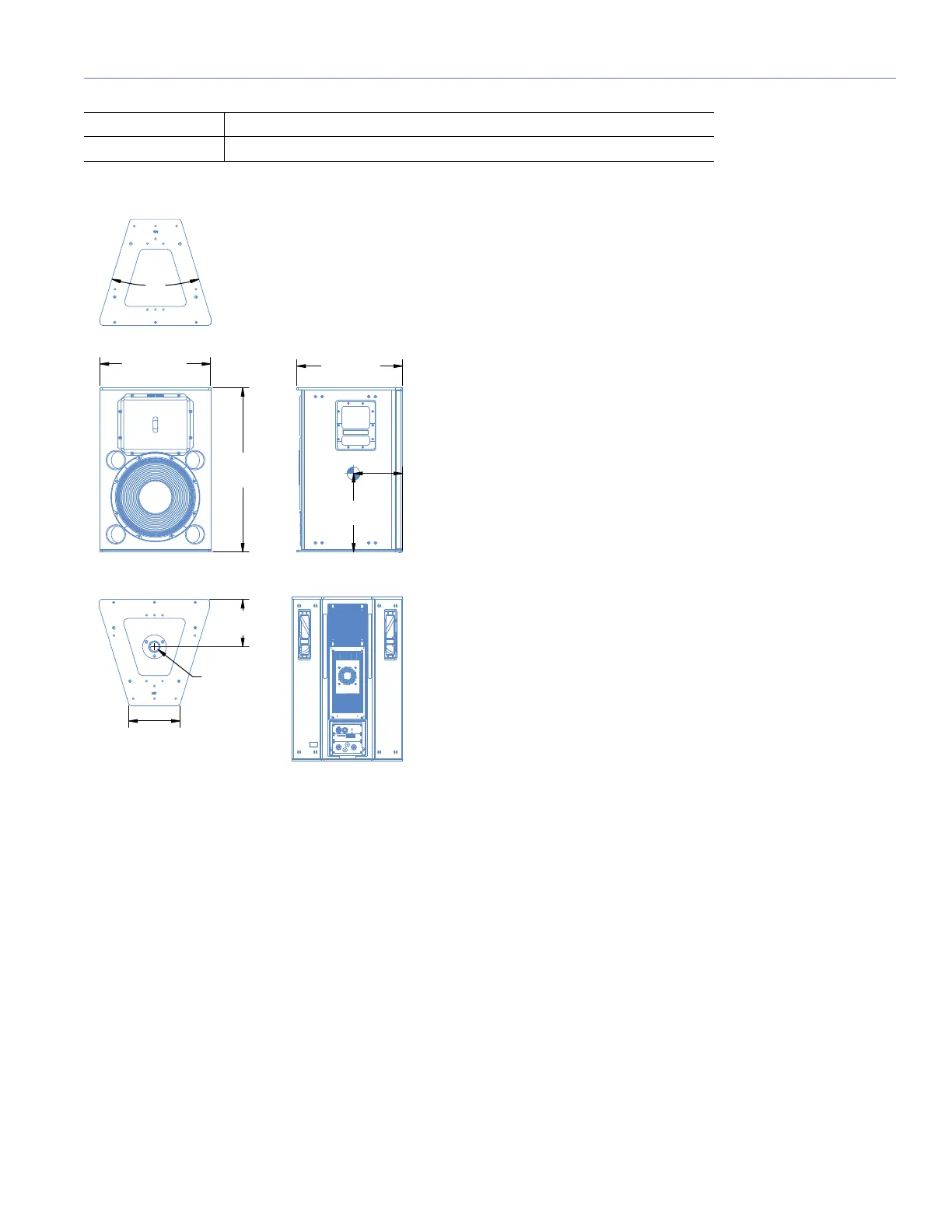

UPQ-1P Dimensions
28.27
[718 mm]
19.00
[483 mm]
34°
18.18
[462 mm]
8.11
[206 mm]
Ø1.52
[Ø39 mm]
8.83
[224 mm]
8.43
[214 mm]
13.50
[343 mm]
36
38
Table of Contents
Default Chapter
3
Important Safety Instructions
3
Safety Summary
4
Table of Contents
5
Chapter 1: Introduction
7
How to Use this Manual
7
Introducing the UPQ-1P Loudspeaker
7
Advanced UPQ Technology
8
Integrated Amplifier and Processing
8
Rig-Ready
9
Total System Approach
10
Chapter 2: Power Requirements
11
AC Power Distribution
11
The AC Connectors
11
Power Connector Wiring
12
UPQ-1P Voltage Requirements
12
UPQ-1P Current Requirements
13
Electrical Safety Issues
13
Chapter 3: Amplification and Audio
15
VEAM Cabling
15
Audio Input Modules
15
Chapter 4: Adding Subwoofers to a UPQ-1P Loudspeaker System
19
Adding Subwoofers by Daisy-Chaining
19
Adding Subwoofers with a Line Driver
20
Galileo Loudspeaker Management System
20
Using Digital Signal Processors
20
Chapter 5: Quickfly Rigging
23
Basic Eyebolt Rigging
23
Pole-Mounting the UPQ-1P
24
The MYA-UPQ Mounting Yoke
24
The MPA-UPQ Array Adapter
25
Chapter 6: The RMS Remote Monitoring System
29
The RMS Software
29
The RMS Module
30
Chapter 7: System Design and Integration Tools
31
MAPP Online Pro
31
The SIM 3 Measurement System
32
Appendix A: Optional VEAM Multipin Connector
33
Appendix B: UPQ-1P Specifications
35
