Model 7200 -36-

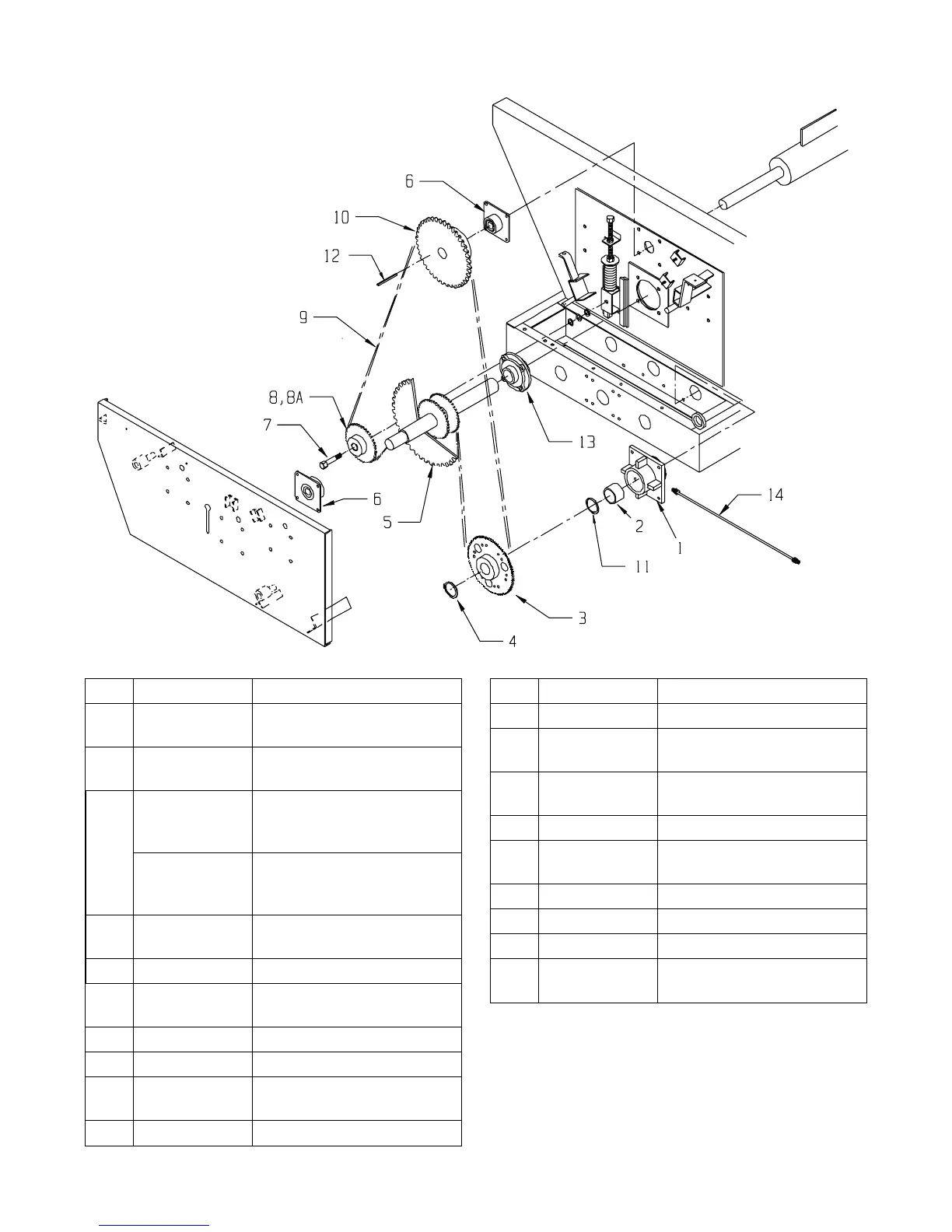

LH AUGER DRIVE FINAL REDUCTION
KEY PART NO. DESCRIPTION
1 925-3766 Right/Left Auger Bushing
Holder Assembly
2 913-3701 Nylon Bushing 3"ID x 4"OD x
3-3/8" Long
3 910-0071-1 140B35 3" 23 Spline Auger
Sprocket (Prior to Serial #
SI067200201)
910-0100 140B35 Shear Sprocket As
-
sembly (Serial #SI067200201
& Later)
3A 831-5020-1.75 1/2-20 x 1-3/4" Allen Head
Cap Screw Grade 8
3B 884-5020 1/2-20 Top Locknut Grade 8
3C 831-5618-1.75 9/16-20x1 ¾” Allen Head Cap
Screw Grade 8
3D 884-5618 9/16-20 Top Locknut Grade 8
4 933-3701 3" Retaining Ring
5 910-0081 2-1/2" Auger Drive Sprocket
Weldment
6 14-0031 2" Bearing 4-Bolt
KEY PART NO. DESCRIPTION
7 925-3719-4 3/4-10 x 3-1/2" Machine Bolt
8 912-0008 #140 Reverse Idler Assembly
W/Bearings
8A 910-0006-1 Bearing 3/4" ID x 2" OD
(2-Required)
9 911-0058 #140-74 Pitch Chain
10 910-0061 140B16 Sprocket 2" Bore, ½"
Keyway
11 933-3704 Front Auger Washer Steel
12 35-0024 ½ x ½ x 2-1/2" Square Key
13 914-3807A 2-1/2" Round 4-Bolt Bearing
14 933-3633 Copper Tube Grease Line 11"
(Includes zerks, fittings)
To Next Page
