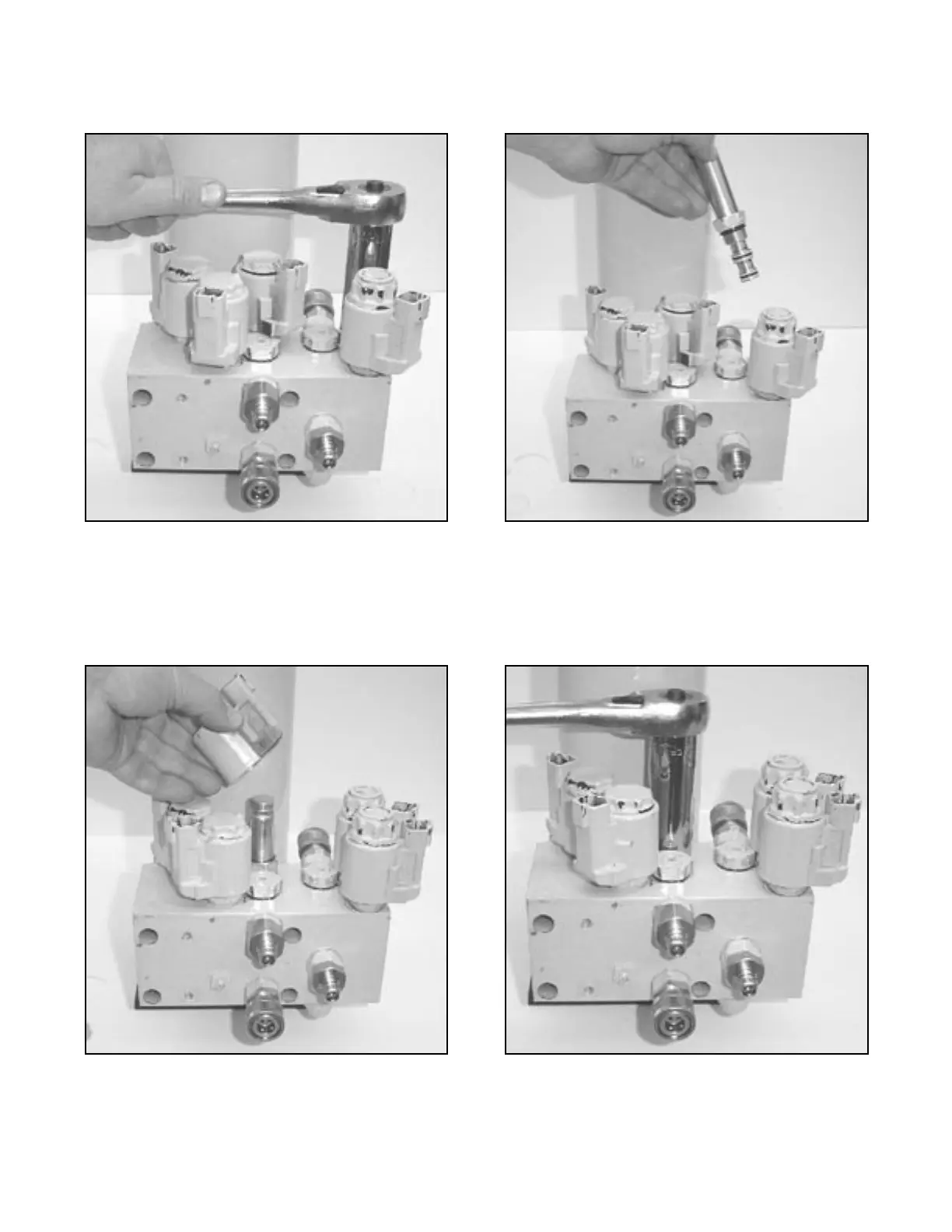

FIGURE 3-31
The “D” Cartridge is removed using a 7/8” hex deep
socket.
DISASSEMBLY - E-88 ONLY
FIGURE 3-32
The “D” Cartridge is removed. Clean by soaking cartridge
in cleaning solvent.
FIGURE 3-33
Remove the “E” Coil.
FIGURE 3-34
The “E” Cartridge is removed using a 7/8” hex deep
socket.
-47-
