Meyer E-58H - Page 53

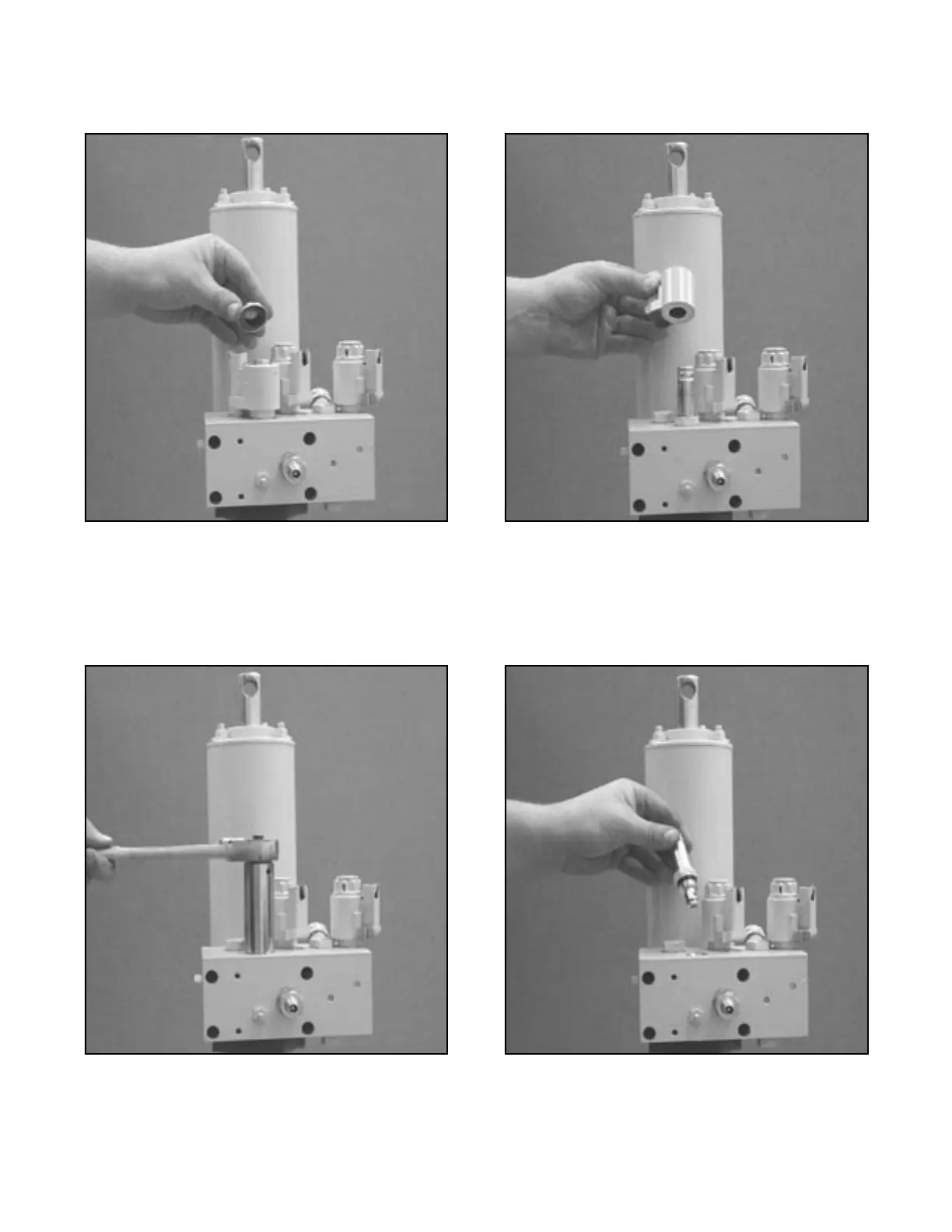

FIGURE 3-47
Remove the “A” Coil using your hand or carefully use
pliers.
DISASSEMBLY - E-58H & E-78 ONLY
FIGURE 3-48
Coil removed from the “A” Cartridge.
FIGURE 3-49
The “A” Cartridge is removed using a 7/8” hex deep
socket.
FIGURE 3-50
The “A” Cartridge is removed. Clean by soaking cartridge
in cleaning solvent.
-51-
