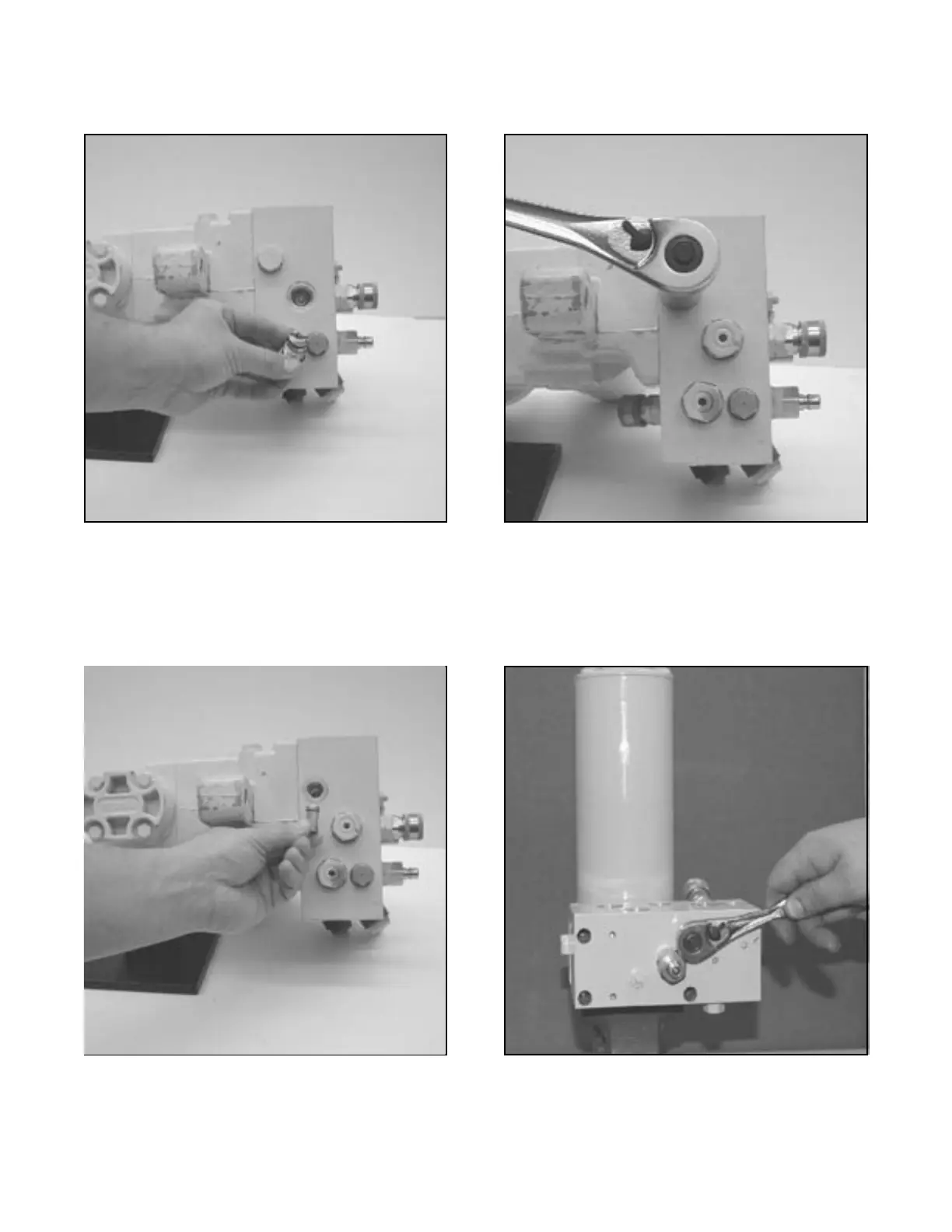

FIGURE 3-43
Use a 15/16” hex deep socket to remove the P.O. Check
valve assembly from the bottom of the valve block. Clean
by soaking Check valve in cleaning solvent.
DISASSEMBLY - E-88 ONLY
FIGURE 3-44
Use a 7/8” wrench or socket to remove filter plug.
FIGURE 3-45
Remove the Filter. Clean by soaking Filter in cleaning
solvent.
FIGURE 3-46
Use a 1/4” hex key or Allen Socket to remove the four valve
block mounting bolts.
