Meyer E-58H - Page 51

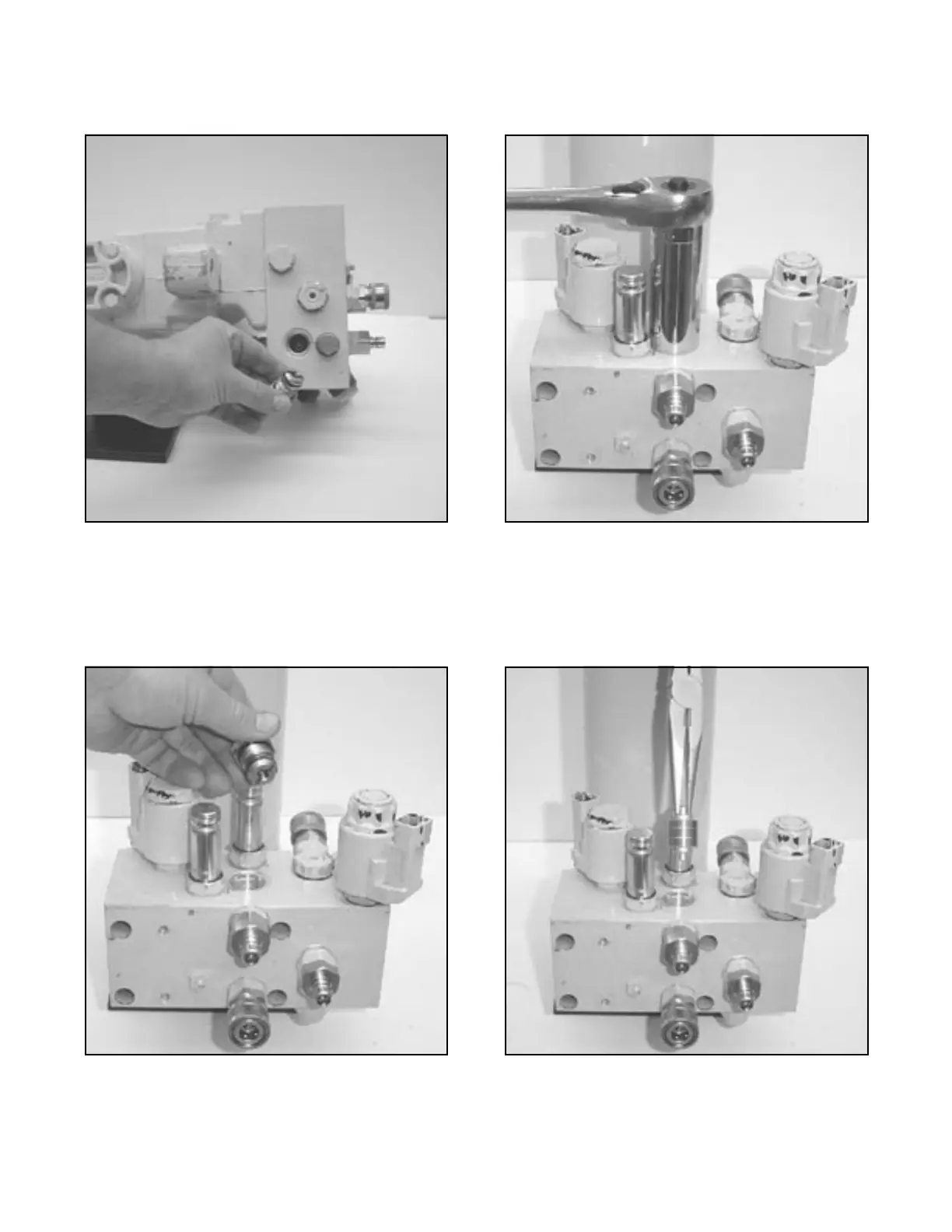

FIGURE 3-39
Use a 15/16” hex deep socket to remove the P.O. Check
valve assembly from the bottom of the valve block. Clean
by soaking Check valve in cleaning solvent.
DISASSEMBLY - E-88 ONLY
FIGURE 3-40
Use a 15/16” hex deep socket to remove the P.O. Check
valve assembly used for mount/dismount.
FIGURE 3-41
Remove the P.O. Check valve assembly. Clean by soaking
Check valve in cleaning solvent.
FIGURE 3-42
Use needle nose pliers to remove the P.O. Pilot Piston.
-49-
