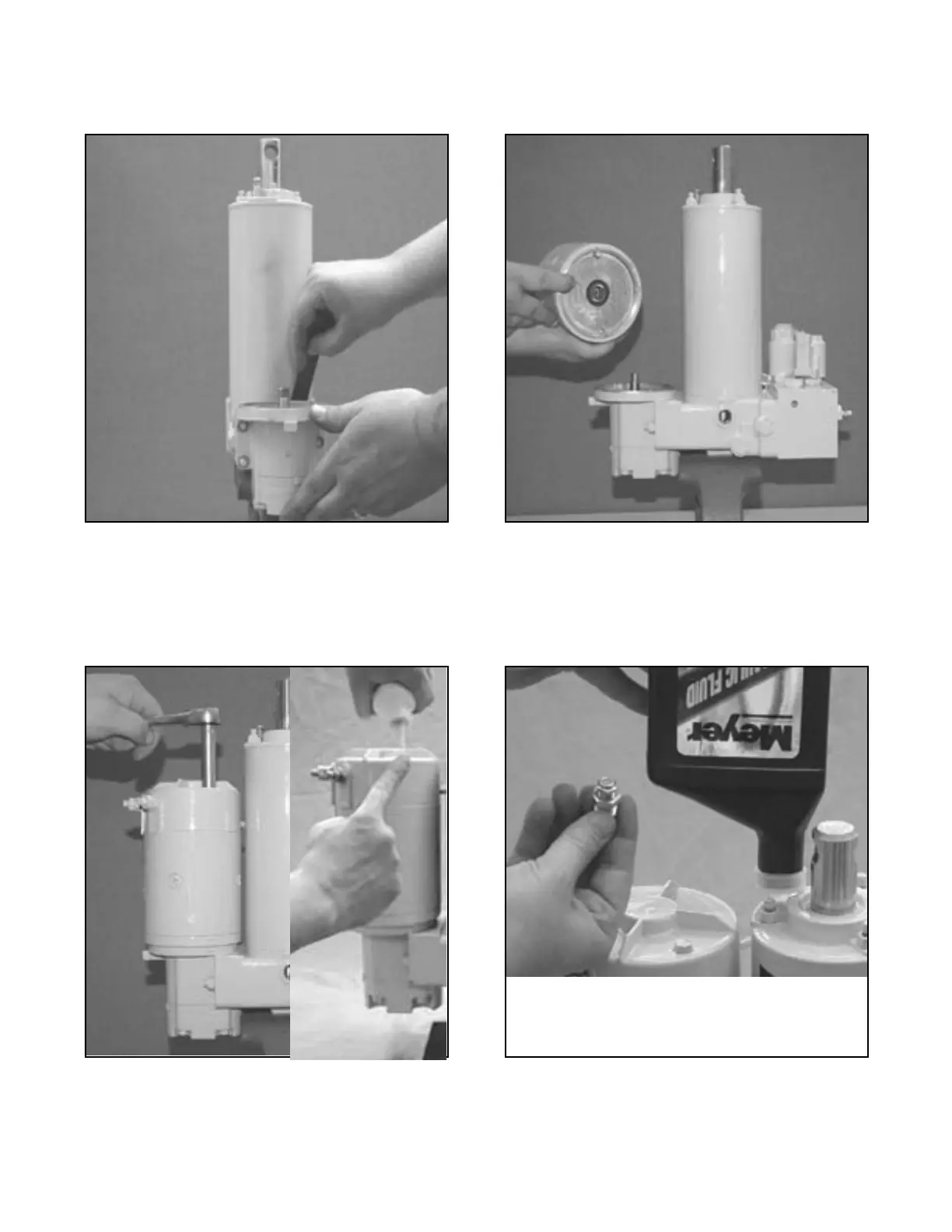

FIGURE 3-87
Use a flat tool to hold the pump check valve in place and
assemble pump. Torque the pump to 100-125 in. lbs.
using a 1/2” hex socket on the locknuts.
FIGURE 3-89
Torque cap screws to 45 - 55 in. lbs., then apply Permatex
Form-A-Gasket No. 2 or equivalent sealant around
each cap screw head.
FIGURE 3-88
To reinstall motor, align pump shaft quill and motor shaft
with appropriate bolt holes.
REFILL UNIT WITH
MEYER M-1 HYDRAULIC FLUID
REASSEMBLY - ALL MODELS
FIGURE 3-90
Follow instructions under
“Replacement of Hydraulic Fluid”
See POST SEASON MAINTENANCE on page 3
