MFJ-993B IntelliTuner Automatic Antenna Tuner Instruction Manual
2005-2012 MFJ Enterprises, Inc.
15
Frequency
Indicators: Antenna, IntelliTune
Indicators:
SWR
Forward power in watts
Reflected power in watts
Forward power bar meter
Reflected power bar meter
SWR bar meter
ntenna symbol (antenna side of L-network)
Inductance value
Capacitance value when on antenna side
Capacitance value when on transmitter side
Memory, Power Level, LC Limit, Range
Indicators: Auto/Semi, StickyTune
1
2
3
4
5
6
7
8
9
10
11
12
13
14
6 7
1 2 3 4
5
8
9
1 2 3 4 5
6
10
1 2 3 4 5
6
11 12
13 14 6
2 3 4 5

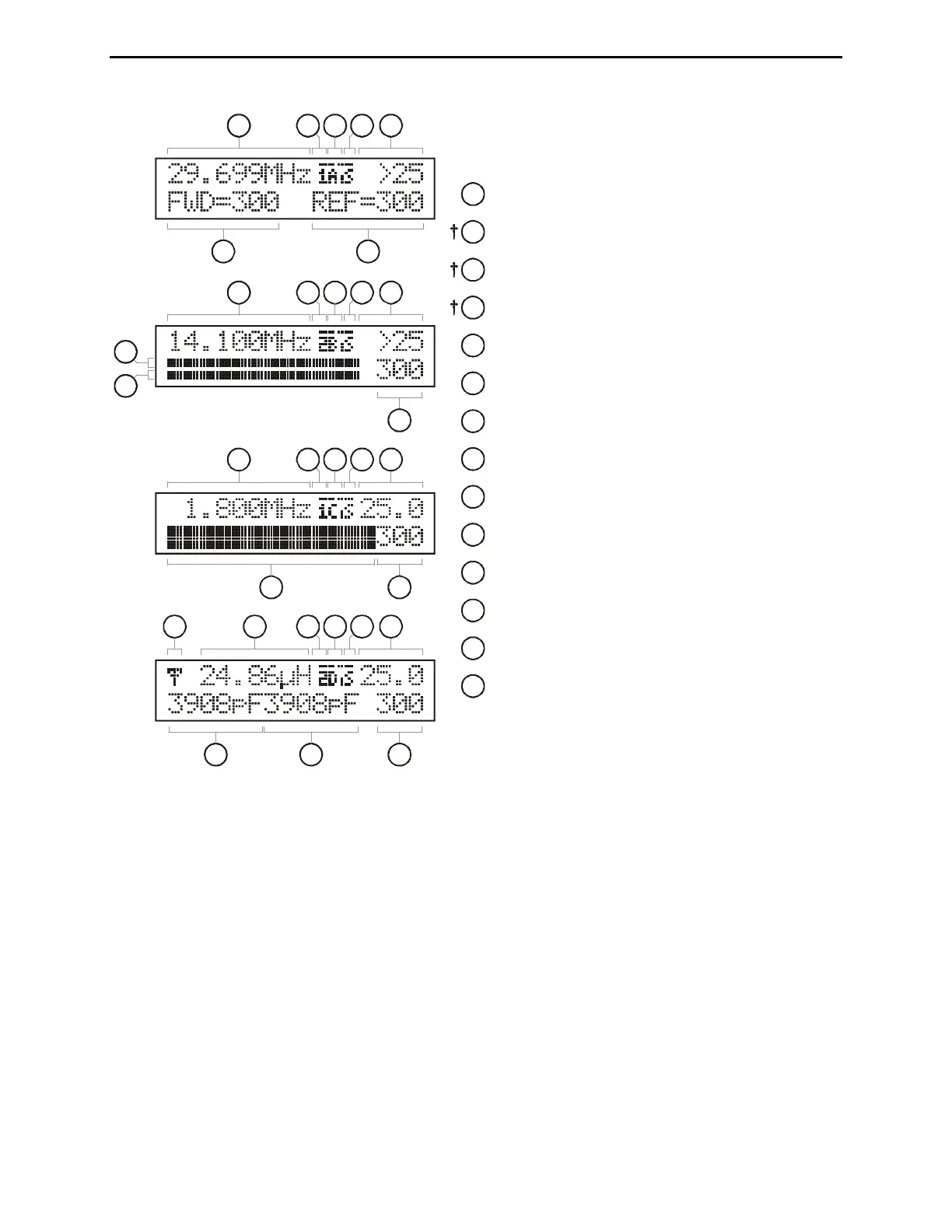

Figure 13. Main Mode Menus Display.
Tuner Indicators
Various tuner indicators are shown on the main menus to indicate tuner status. Refer to Figure 13 for
locations of these indicators. The number enclosed within ( ) is the item number of Figure 14.
• Antenna: A small “1” appears to indicate antenna 1 is selected (15); a small “2” appears to indicate
antenna 2 is selected (16).
• IntelliTune: When IntelliTune
TM
is ON, a bar appears on top of the Antenna indicator (17).
• Memory: A small “A”, “B”, “C” or “D” appears to indicator the selected memory bank when
Memory is ON (18-21).
• Power Level: When 150-watt power level is selected, a bar appears on the upper-left corner of the
Memory indicator (22).
