Installation
111
Base Station Installation
In fixed station installation, an AC power supply is used instead of the 12 V battery. It is possible to
connect a backup battery to the battery terminals on the power supply. One power supply model is
available, FPN5590, for 110/220 V AC, 50/60 Hz.
12V Battery
Fuse
30A
Green (Output 1 - max. 5A)
Black (Ground)
Red (Output 2 - max. 25A)
Radio
5A GND 25A
5A - 25A

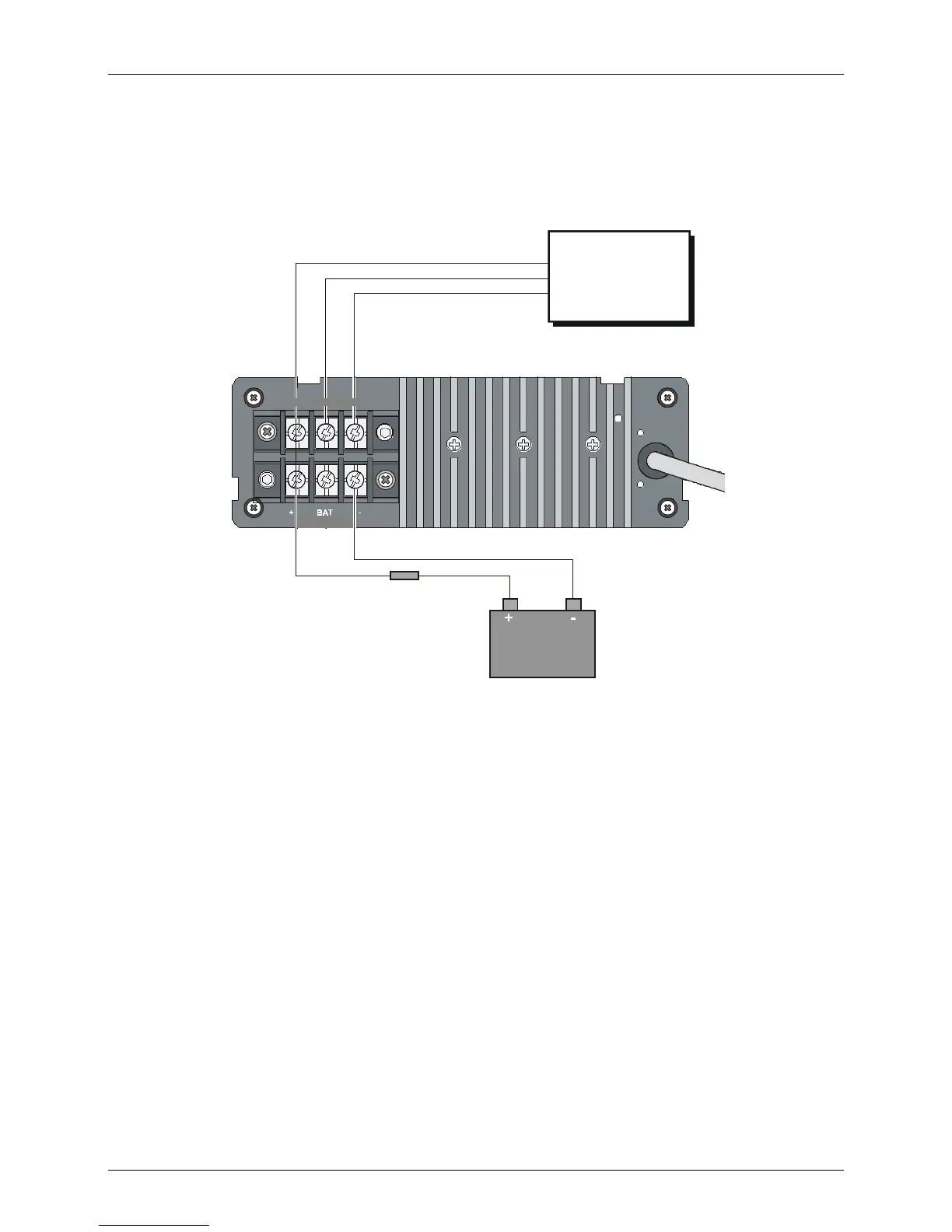

Figure 12. FPN5590 Power Supply Connections
This power supply also serves as a charger for the external backup 12 V battery, if connected. When
AC power failure occurs, the battery functions as the main power source. When AC power is again
available, the power supply charges the battery.
