Page 18

Distance Measurements

capaNCDT 6220/6222/6230

Distance Measurements

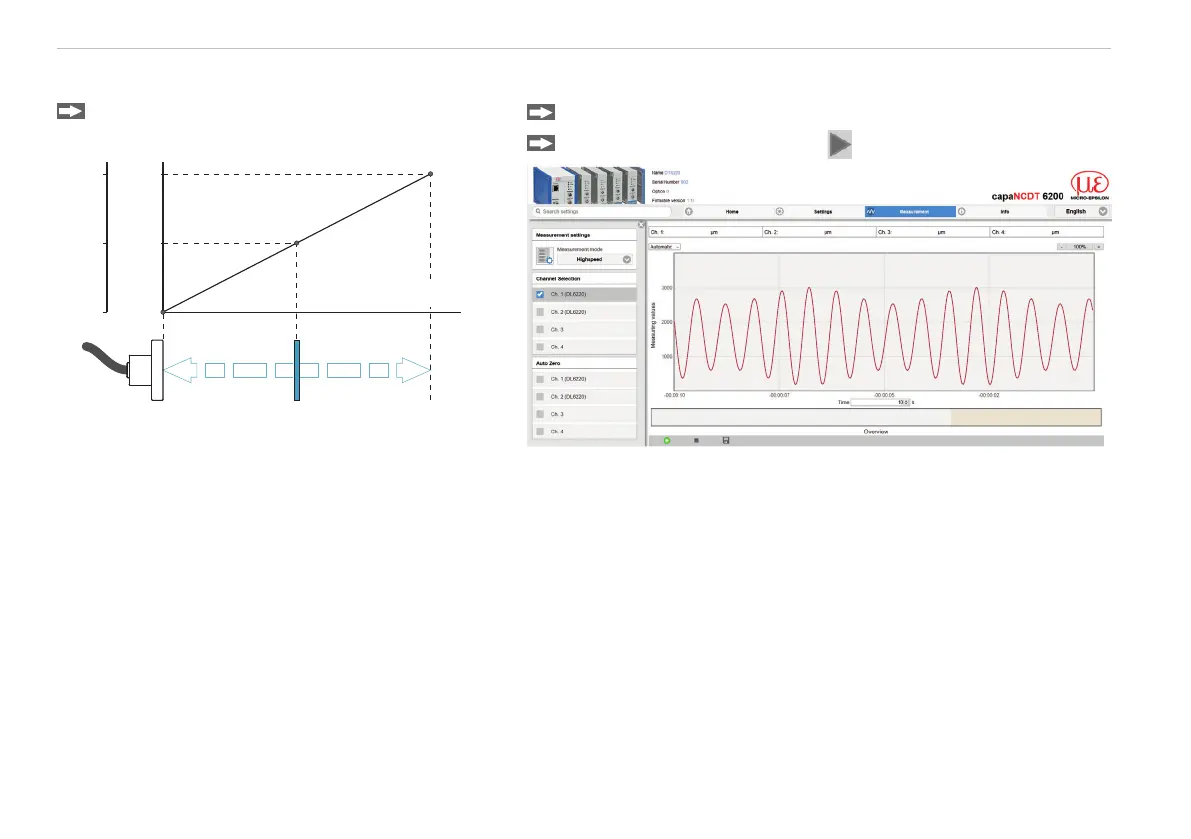

Switch to the Measurement menu.

Click the Start measuring button.

2279

Positioning the Target

Position the target within the sensor mea-

suring range.

20 mA

12 mA

4 mA

Target

Measuring range (MR)Sensor

SMR MMR EMR

10 V

5 V

0 V

Displacement

Signal

SMR Start of measuring range

MMR Mid of measuring range

EMR End of measuring range
