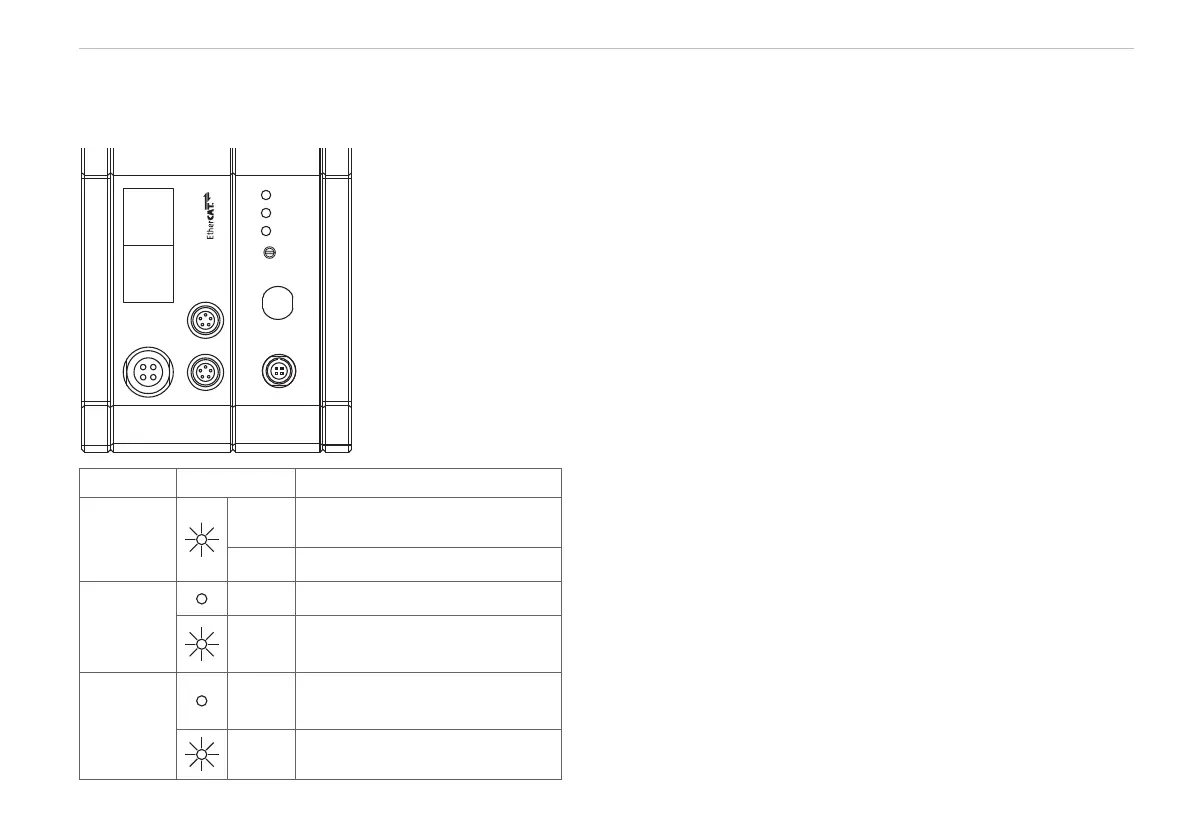

Page 13
Commissioning
capaNCDT 6220/6222/6230
Commissioning
LEDs
SIGNAL OUT
SENSOR/CP
Range
LP Filter
Zero
Zero
POWER/TRIG.
OUT
SYNC
IN
ETHERCAT IN ETHERCAT OUT
ETHERNET
1) LP Filter can
only be switched via
Ethernet.
LED Color Function
Range
green
Target within the measuring
range
red Measuring range exceeded
LP
Filter
1
off Default strip width active
red
20 Hz low-pass filter at ana-
log outputs enabled.
Zero
off
Zero potentiometer in base
position (right-hand stop)
red
Zero potentiometer mis-
aligned
