MICRO-EPSILON capaNCDT 6200 User Manual

Page 14
Commissioning
capaNCDT 6220/6222/6230

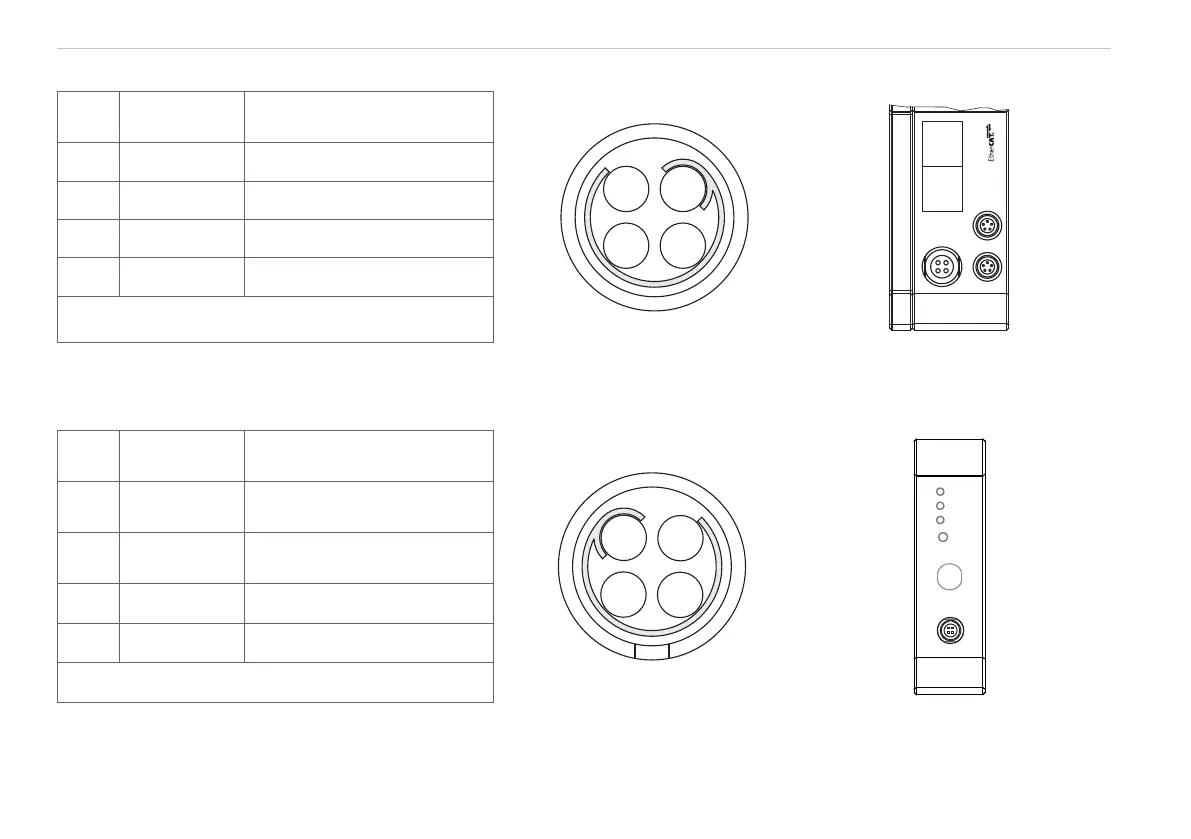

Pin Assignment Supply, Trigger
Pin Wire color
PC6200-3/4
Description
1
4
2
3
DT62xx
POWER/TRIG.
OUT
SYNC
IN
ETHERCAT IN ETHERCAT OUT
ETHERNET
1 Brown +24 VDC supply
2 White GND supply
3 Yellow Trigger IN+, TTL level
4 Green Trigger IN-
Shield
PC6200-3/4 is an assembled supply and trigger
cable that is 3 m long.
View: solder side,
4-pin ODU female connector
Supply input on controller,
4-pin plug
Pin Assignment of Analog Output
Pin Wire color
SCACx/4
Description
1
4
2
3
SIGNAL OUT
SENSOR/CP
Range
LP Filter
Zero
Zero
DL62xx
1 Brown V
OUT
, (Load min. 10 kOhm)
2 Yellow I
OUT
, (Load max. 500 Ohm)
3 Gray GND, analog ground
4 White GND, analog ground
Shield
Analog grounds are connected internally. SCA-
Cx/4 is a 4-wire output cable that is 3 m long. It
is supplied as an optional accessory.
View: soldering pin side,
4-pin male cable connector
Signal output on controller,
4-pin port
