Page 15
Commissioning
capaNCDT 6220/6222/6230
Ethernet/EtherCAT Switching DT6230

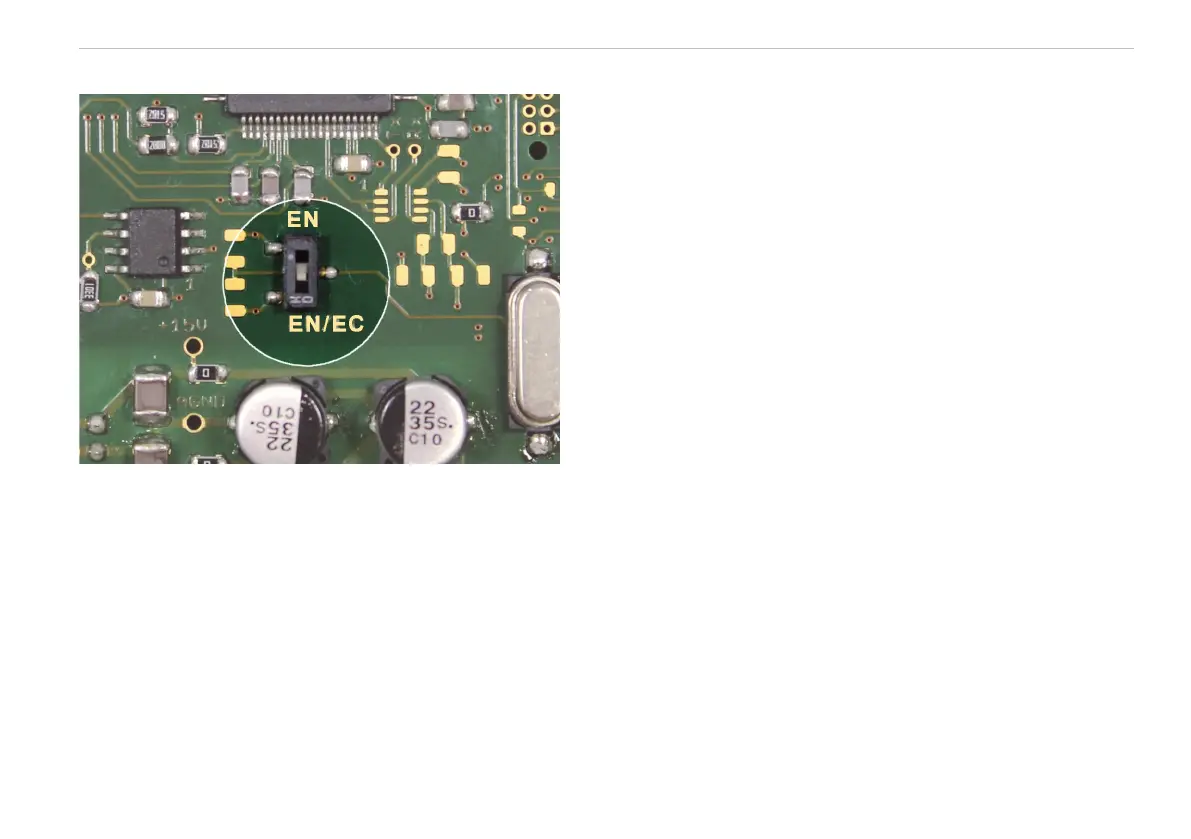

Switch for changing between Ethernet and EtherCAT
You can change between Ethernet and EtherCAT by
using the hardware switch on the DT6230 base module
or in the software.
If the switch is in the EN (Ethernet) position, the Ethernet
interface is always active irrespective of the software
setting. If the switch is in the EN/EC (Ethernet/EtherCAT)
position, the interface set by the software is active. Any
change to the interface only takes effect after restarting
the controller.
