Page 9
Assembly
capaNCDT 6220/6222/6230
Assembly
No sharp or heavy objects should be allowed to affect
the cable sheath.
i
A damaged cable cannot be repaired. Tension on
the cable is not permitted!

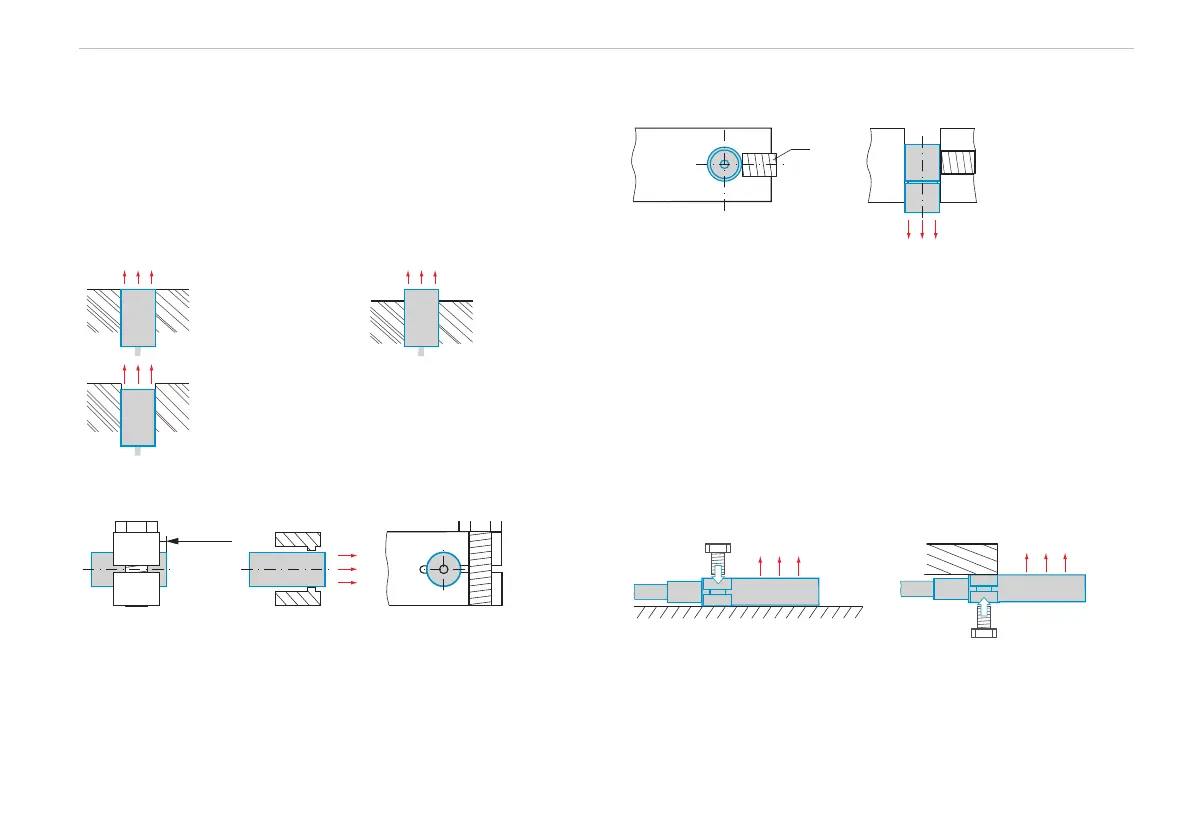

Sensor
Flush
installation
Protruding
installation
Recessed
installation, not
for sensors in
the CSE series
During installation,
take care that the
sensor front face is not
scratched.
Clamping Around Circumference, Cylindrical Sensors
free
Clamping around circumference, assembly with clamp-
ing collet
- High reliability
- Flat clamping across cylindrical housing
- Recommended assembly for e.g., machines, produc-
tion facilities, etc.
Radial Spot Clamping with Grub Screw, Cylindrical
Sensors
Radial spot clamping with grub screw (1)
- Simple mounting option
- Recommended assembly only for installation loca-
tions
that are free of impact or vibration
- The grub screw must be made of plastic
Do not use metal grub screws!
> Risk of damage to the sensor
Flat Sensors
Screwed connection from
top
Screwed connection from
bottom
