2. Kit Overview
This section provides an overview of the BM83 EVB. The following figure illustrates the top view of the BM83 EVB
with its components.

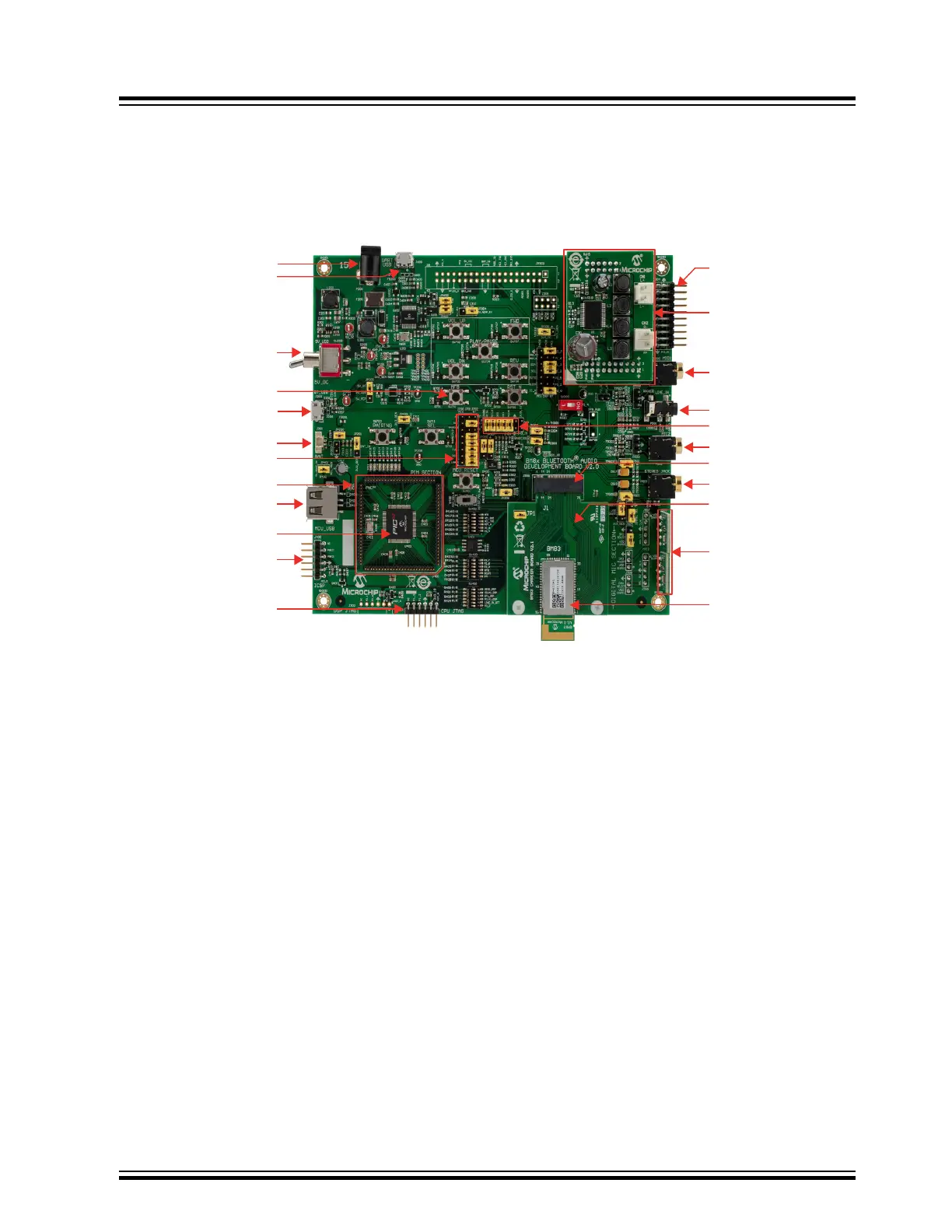

Figure 2-1. BM83 EVB Components
Host MCU (PIC32MX450F256L)
PIM Socket (External MCU)
15V DC Adapter (P200)
USB-UART Port (J600)
Power Switch (SW200)
MFB Button (SW701)
Bluetooth Module USB (J200)
Li-ion Battery Connector (J201)
Type-A USB (P400)
ICSP Header (J400)
BM83 JTAG Header (J301)
XPRO Header (J304)
STA369BW Audio
Daughter Board
ANA MIC1(P500)
LINE_IN (P501)
I2S Header (J404, J405)
ANA MIC2 (P502)
Stereo Out (P503)
Carrier Board Interface (J300)
BM83 Carrier Board
BM83 Module
Digital Microphone
Daughter Boards
Audio Control Buttons Header
(J700, J701, J702)
2.1 Kit Contents
The BM83 EVB includes the following:
• One BM83 EVB that contains a BM83 module (BM83SM1-00AA) mounted on a BM83 Carrier Board
• One 15V DC power adapter
• One pair of speaker cables
• One Type-A to Micro-B USB cable
• One STA369BW Audio Daughter Board
• Two Digital Microphone Daughter Boards
• One J-link 6-pin Adapter Board
