Microchip Technology dsPIC33CH User Manual

dsPIC33CH CURIOSITY DEVELOPMENT
BOARD USER’S GUIDE
 2018 Microchip Technology Inc. Advance Information DS50002762A-page 11
Chapter 1. Introduction
The dsPIC33CH Curiosity Development Board (DM330028) is intended as a
cost-effective development and demonstration platform for the dsPIC33CH128MP508
family of dual core, high-performance Digital Signal Controllers. Some of the board
hardware features are highlighted in Figure 1-1.

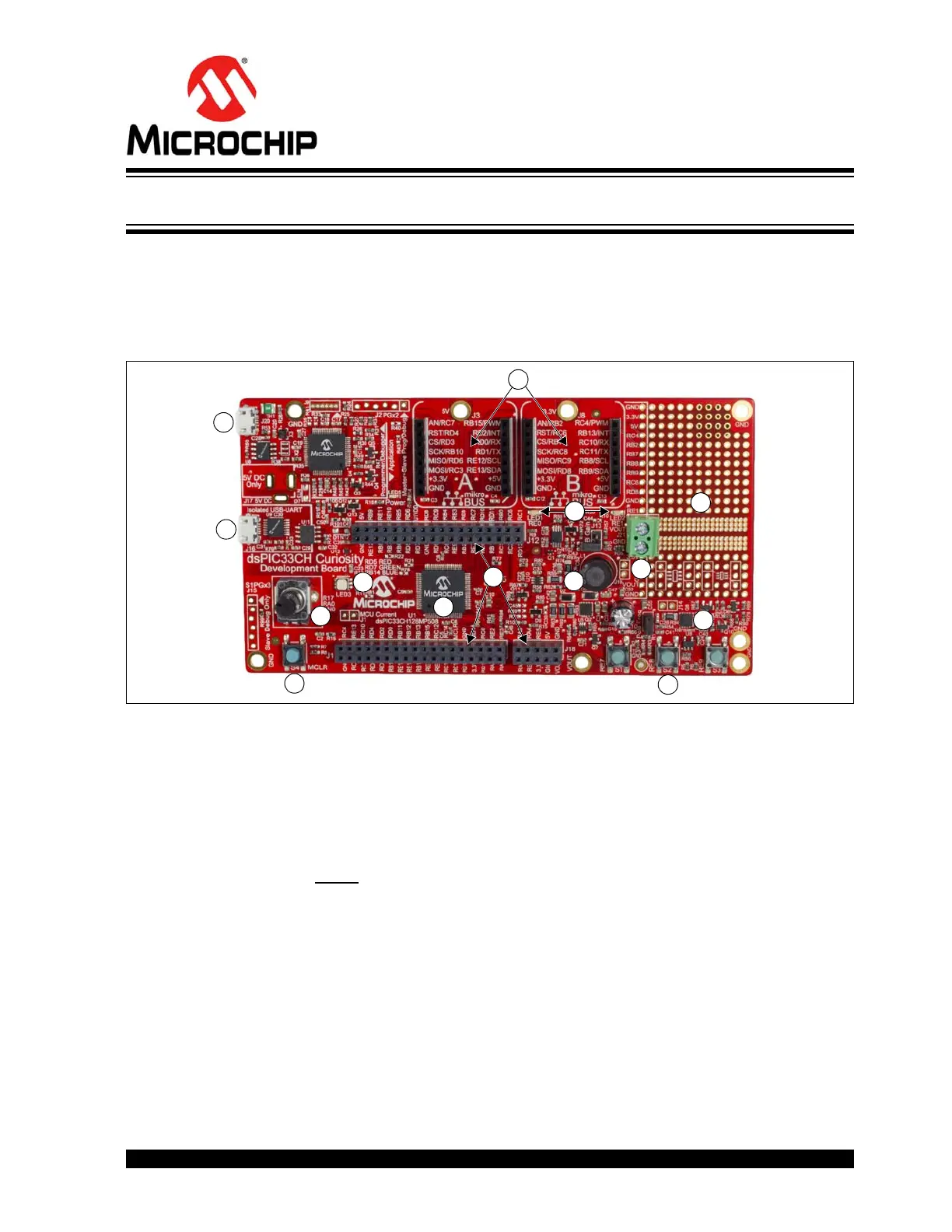

FIGURE 1-1: dsPIC33CH CURIOSITY DEVELOPMENT BOARD
Hardware Features:
1. dsPIC33CH128MP508 dual core, 16-bit DSP target device.
2. Integrated PICkit™-On-Board (PKOB) programmer/debugger.
3. 2x mikroBUS™ interfaces for hardware expansion, compatible with a wide range
of existing click boards™ from MikroElektronika (www.mikroe.com).
4. 1x Red/Green/Blue (RGB) LED.
5. 2x general purpose red indicator LEDs.
6. 3x general purpose push buttons.
7. 1x MCLR
Reset push button.
8. 10k potentiometer.
9. Galvanically isolated USB-UART interface, capable of up to 460,800 baud.
10. Female, 100 mil pitch, I/O pin access headers for probing and connecting to all
target microcontroller GPIO pins.
11. Configurable Switch Mode Power Supply (SMPS) test circuit that can be
operated in Buck, Boost, or Buck-Boost modes, using either Voltage mode or
Peak Current mode control.
12. Converter output voltage screw terminal.
13. Configurable load step transient generator.
14. General purpose through-hole and SMT prototyping area.
3
5
14
13
11
6
10
10
1
5
4
8
7
9
2
12
