4. Click the CODEC Setup tab to select the Exter-
nal codec in CODEC Output Type. If an internal
codec is needed, then select Internal codec in
CODEC Output Type.

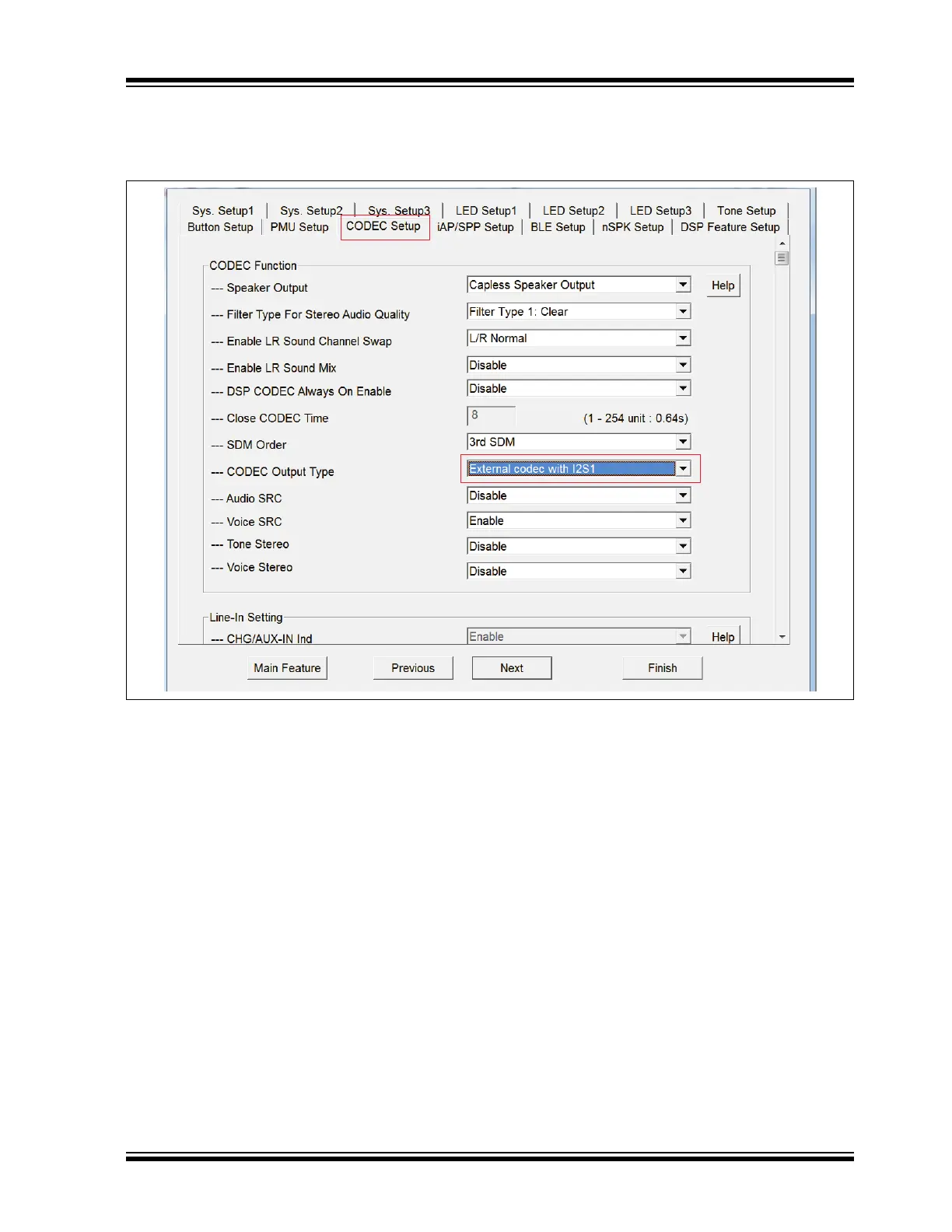

FIGURE 55: CHANGING CODEC OUTPUT TYPE
5. This step is needed only for Embedded mode.
Configure BM83 GPIOs to connect with the
BM83 EVB on-board buttons and Aux-in input
detection as in Appendix H: “AUX-In Detec-
tion” and Appendix I: “Button Configura-
tion”.
