2021 Microchip Technology Inc. DS00003118C-Page 93
AN3118
P.1.3 EXPORTING TUNED PARAMETERS
The MBA application can save all the audio and voice
function parameters into a HEX file. This file can be
accessed through the Config GUI Tool.
• To export these parameters, tap Export DSP Tun-
ing Data in MBA application under Dynamic OTA
DSP Tuning as shown in the following figure:

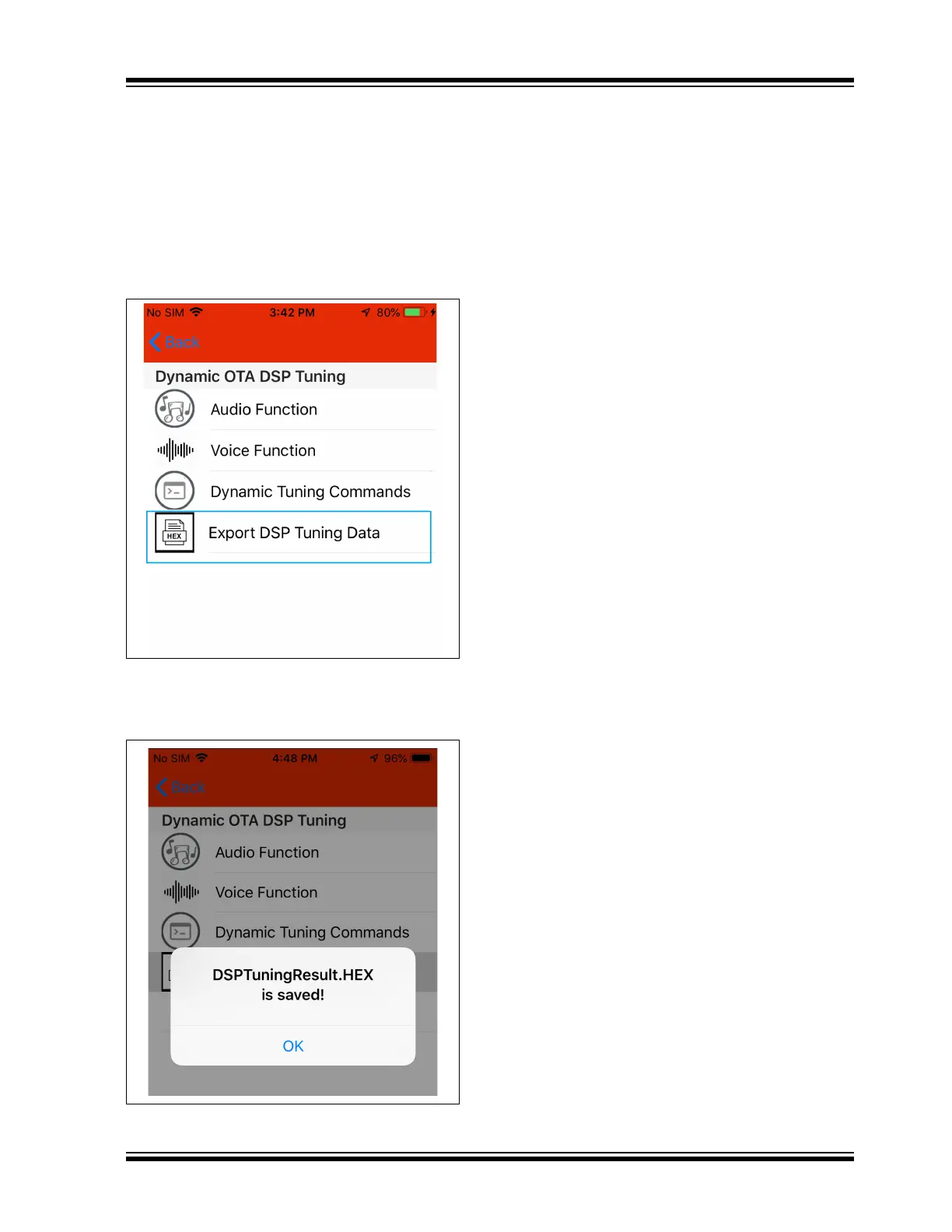

FIGURE 106: EXPORTING DSP
PARAMETERS
• Upon successfully exporting a HEX file, the fol-
lowing message will appear.
FIGURE 107: EXPORTED PARAMETERS
• An exported DSPTuningResult.HEX file will be
stored in iDevices folder.
• This settings (HEX) file contains audio and voice
function parameters only. This settings file can be
merged with other HEX files using the Config GUI
Tool.
