Microlight TX Series - TTL Communication Setting

23

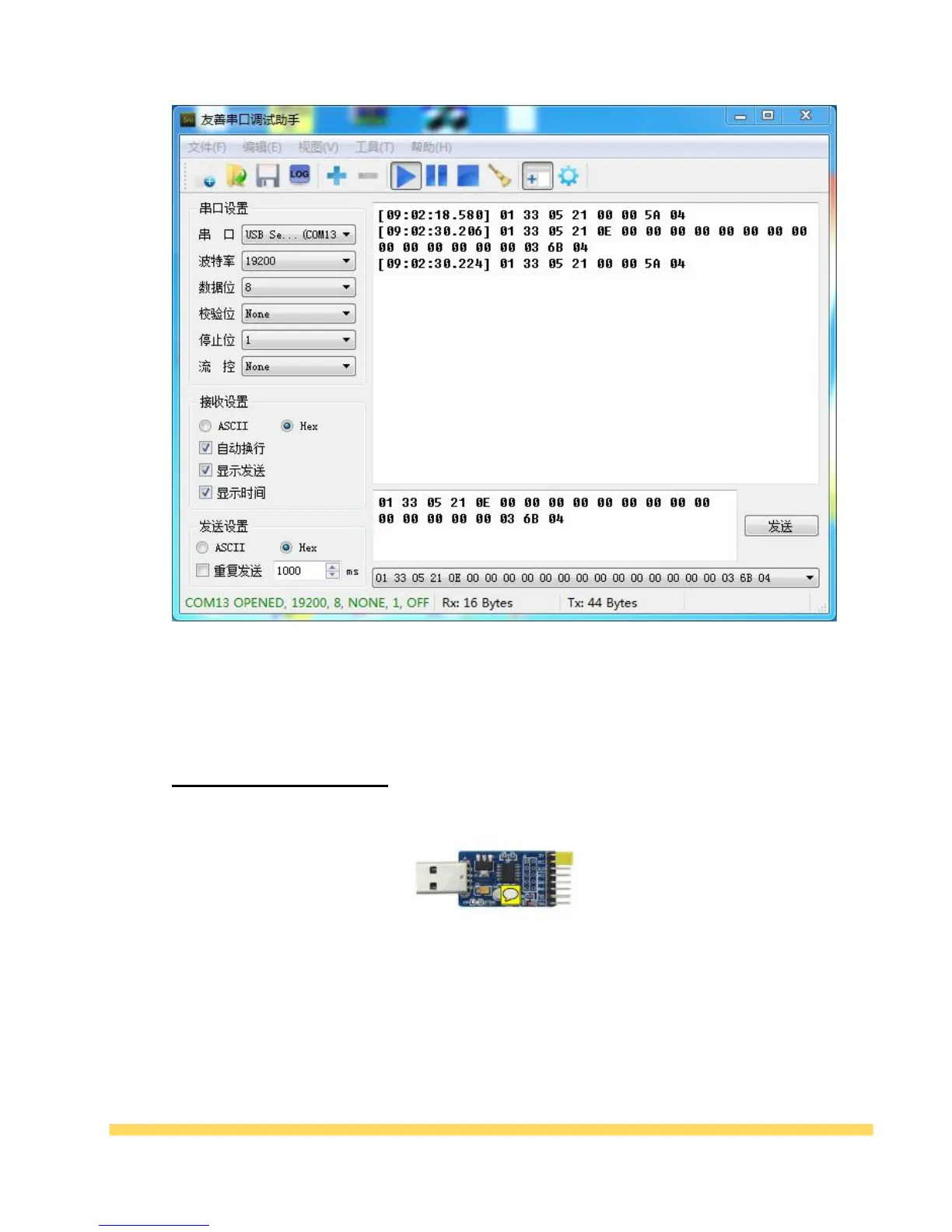

Table 4-3 Serial debugging tools
During use, the serial port cursor output tool must be kept in the running state; otherwise, it cannot
be output normally.
TTL Communication Setting
The device can be connected to the computer via a TTL to USB module.
Table 4-4 TTL to USB line (not belong to the standard ）
After completing the above settings, open the serial port to the cursor output program (Internet
download, does not belong to the standard) as shown below:
