Installation and Disassemble
TX200 Installation

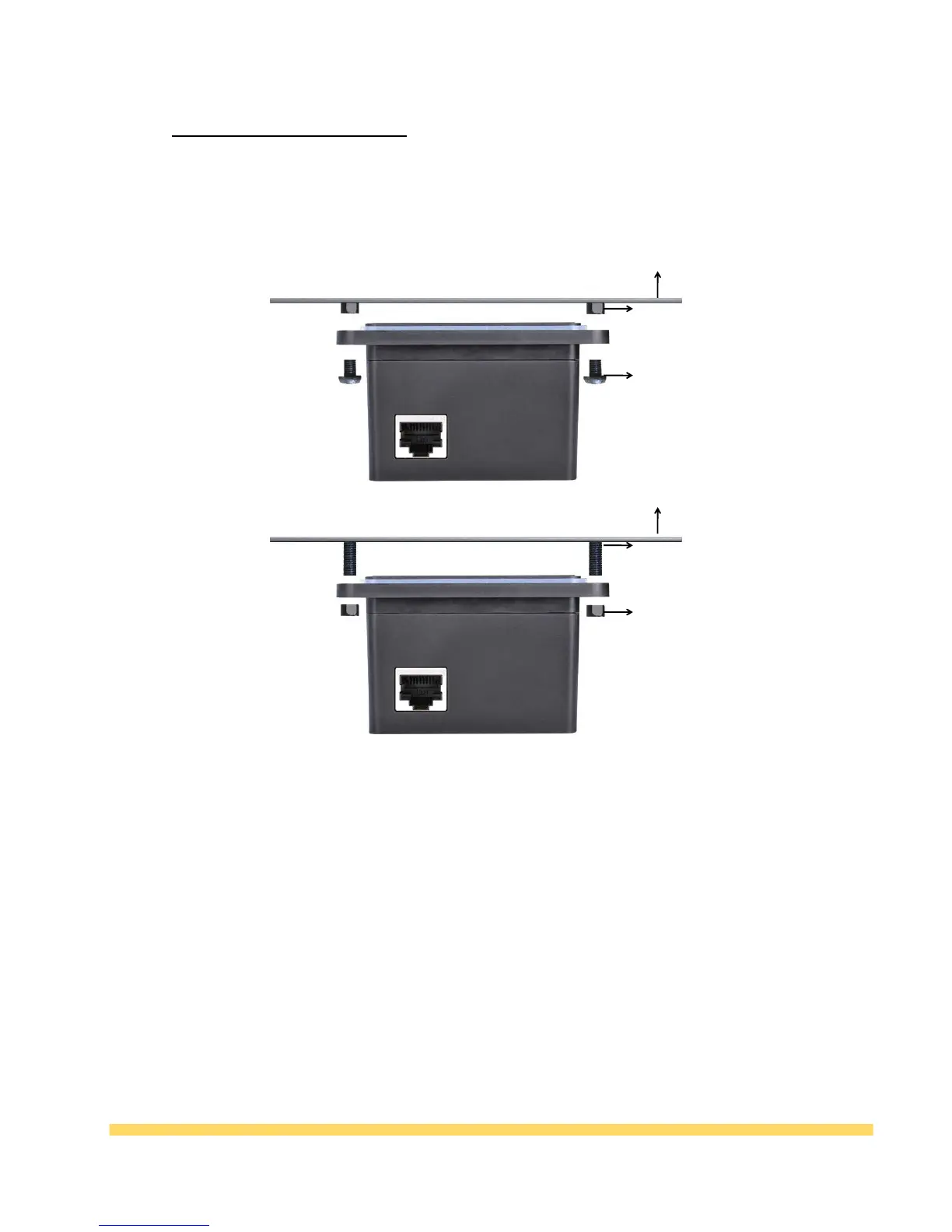

Installation instructions 1
Nut column diameter does not exceed 5.8mm, through the scanner to fix the round hole outside
diameter.
The diameter of the screw part of the fixing screw is not more than 4mm, tighten the nut from the
back through the hole inside diameter
When the plate thickness is 2mm, the maximum nut height is 3.5mm
When the plate thickness is 1.5mm, the maximum height of the welded nut on the steel plate is 4mm
Installation instructions 2:
Screw column diameter not more than 4mm is okay, directly through the scanner to fix the round hole
internal diameter
